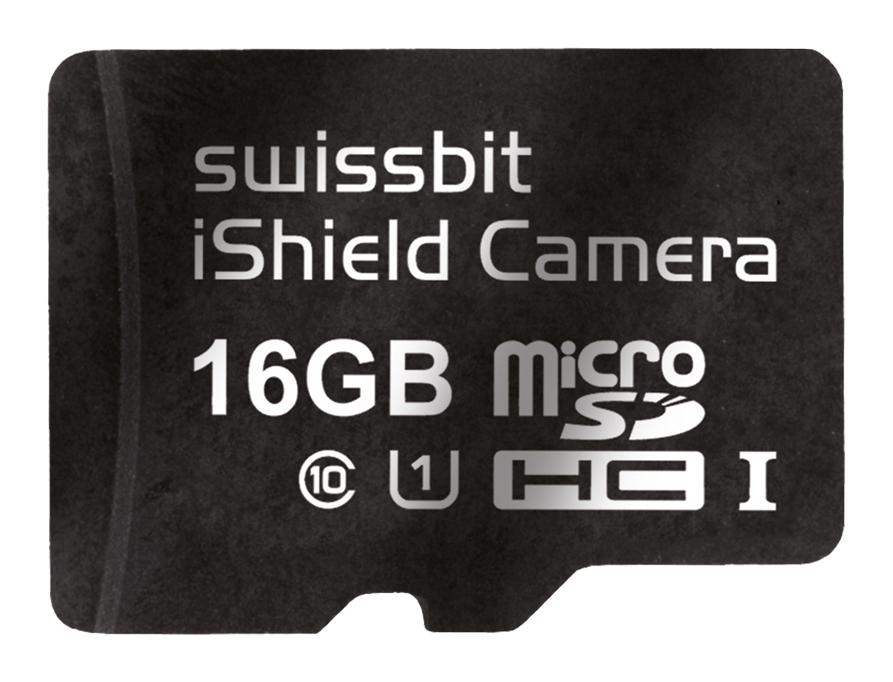

SWISSBIT SFSD016GN3PM1TOILF010SW3 microSD card

The PS-45u iShield Camera Series microSD cards by Swissbit are high-capacity, industrial-grade memory cards designed for demanding camera applications like drones, dash cams, and surveillance. They feature capacities of 16 and 32 GB, comply with SD Memory Card specifications 2.0 and 3.0, and support multiple speed classes including UHS-I, Speed Class 10. With high read/write speeds up to 16/13 MB/s, AES-256 encryption, loop recording support, and a 10-year data retention, these cards ensure reliable data protection in extreme temperatures from -40°C to 85°C, making them ideal for professional and industrial uses.

Buy Swissbit microSD Card Part Number SFSD016GN3PM1TOILF010SW3 Online
View SFSD016GN3PM1TOILF010SW3Datasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFSD016GN3PM1TO-I-LF-010-SW3
Stock:37
Inv Date:06-16-2026
Price: Unit price: $133.98
Buy/RFQ:

SWISSBIT SFSD016GN3PM1TOILF010SW3 microSD card Specifications:

  • Capacities: 16 GBytes, 32 GBytes
  • Form Factor: Standard microSD, 15.0mm x 1.0mm x 0.7mm
  • Compliance: SD Memory Card spec 2.0 & 3.0, microSD Addendum 4.00
  • Performance: SD High speed, SD UHS-I, Speed Class 10
  • Read Speed: up to 16 MBytes/sec
  • Write Speed: up to 13 MBytes/sec
  • Random Read IOPS: up to 800
  • Random Write IOPS: up to 550
  • Operating Temperature Range: -40°C to 85°C
  • Operating Voltage: 2.7V to 3.6V
  • Data Retention: 10 Years @ start, 1 Year @ end of lifespan
  • Endurance: 85 TBW (TeraBytes Written)
  • Features: Hardware encryption AES-256bit, loop recording support, user management tools
  • Application: Drone, body, dash, surveillance, action cameras, camera traps
  • Manufactured in Germany

Buy the Buy Swissbit microSD Card Part Number SFSD016GN3PM1TOILF010SW3 Online

Discover the robust Swissbit microSD cards from the PS-45u iShield Camera Series, offering capacities of 16 and 32 GB. These industrial-grade cards support high-speed data transfer with sequential read speeds up to 16 MB/sec, combined with AES 256-bit hardware encryption for data security. Designed to operate reliably from -40°C to 85°C, they support loop recording, ideal for dash cams, drones, and surveillance. With a data retention of 10 years and endurance of 85 TBW, ensure your critical data is protected and accessible in demanding environments.

Order your Swissbit Series PS-45u iShield Camera 16GB microSD card today and ensure reliable data recording for professional and industrial camera projects.

Frequently Asked Questions

Where can I buy SWISSBIT SFSD016GN3PM1TOILF010SW3?

You can click on the BUY or RFQ button to purchase SFSD016GN3PM1TOILF010SW3 from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFSD016GN3PM1TOILF010SW3?

You can download the SFSD016GN3PM1TOILF010SW3 datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFSD016GN3PM1TOILF010SW3?

SWISSBIT
