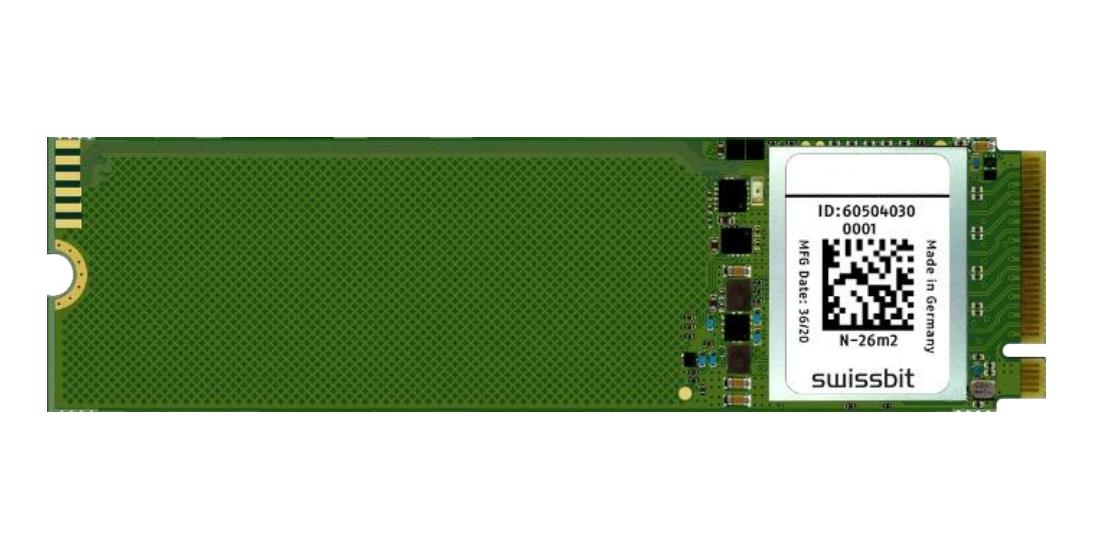

SWISSBIT SFPC020GM1EC2TOI5E51PSTD industrial NVMe SSD
The Swissbit N-26m2 SSD is an industrial-grade M.2 NVMe drive leveraging PCIe Gen3 x2 interface with capacities up to 160GB. Built with 3D TLC NAND flash and an advanced controller with error correction, it delivers high sequential read speeds up to 1,773 MB/s and write speeds up to 827 MB/s. Its robust design supports operating temperatures from -40°C to 85°C, includes AES256 encryption, and offers excellent endurance and reliability with an MTBF exceeding 2 million hours. Suitable for embedded computing, data centers, and high-performance applications, it features power management, data protection, and compliance with industry standards such as NVMe 1.3.
SWISSBIT SFPC020GM1EC2TOI5E51PSTD industrial NVMe SSD Specifications:
- Form Factor: M.2 2230/2242/2280 (30/42/80 mm x 22 mm x 2.63 mm)
- Capacities: 5 GBytes, 10 GBytes, 20 GBytes, 40 GBytes, 80 GBytes, 160 GBytes
- Interface: PCIe Gen3 x2 with support for x1, x2, x4 modes
- Protocol: NVMe 1.3
- Sequential Read: up to 1,773 MB/s
- Sequential Write: up to 827 MB/s
- Random Read (4K): up to 140,000 IOPS
- Random Write (4K): up to 131,000 IOPS
- Operating Temp Range: -40°C to 85°C
- Storage Temp Range: -40°C to 85°C
- Power Supply: 3.3V, 1.8V, 0.9V
- Power Consumption: Idle approx. 15mA; Active approx. 450-810mA depending on capacity
- Reliability: MTBF > 2,000,000 hours, Data Reliability: <1 non-recoverable error per 10^14 bits read
- Endurance: TBW varies with capacity, e.g., >1550 TB for 80GB model
- Physical Dimensions: Lengths of 30, 42, or 80 mm, Width 22 mm, Max Thickness 2.63 mm
- Compliance: NVMe 1.3, PCIe 3.1, RoHS, REACH, WEEE
- Additional Features: AES256 Encryption (optional), End-to-End Data Protection, Power Fail Data Loss Protection
Buy the Buy Swissbit NVMe SSD Part Number SFPC020GM1EC2TOI5E51PSTD Online
Purchase your Swissbit industrial NVMe SSD today for reliable, high-speed data transfer and robust performance in embedded and enterprise environments. This versatile M.2 SSD offers capacities up to 160GB, supporting PCIe Gen3 x2 interface technology enabling sequential read speeds up to 1,773 MB/s and write speeds up to 827 MB/s. Its wide temperature range from -40°C to 85°C ensures operation in harsh conditions, combined with AES256 encryption and industry certifications for data security and durability. Perfect for high-performance computing, data centers, and mission-critical applications, ensuring long-term data integrity and optimized endurance performance.
Order your Swissbit Series1606B SFPC020GM1EC2TOI5E51PSTD today and give your embedded systems high-speed, reliable storage with advanced data protection.
