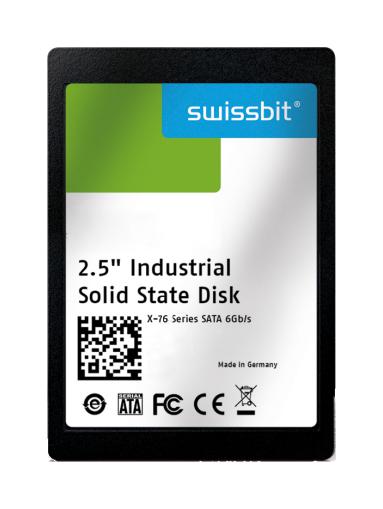

SWISSBIT SFSA040GS2AK2TOI6B22PSTD Industrial SATA SSD

The 2.5-inch industrial solid state disk from Swissbit features high endurance and reliable data storage leveraging TLC 3D NAND flash technology in pSLC mode, optimized for demanding embedded applications. Supporting SATA Gen3 with transfer rates up to 600 MB/s, it includes advanced wear leveling, bad block management, and power fail protection. Compatible with ATA/ATAPI-8 standards, it boasts a robust design suitable for harsh environments, with operating temperatures from -40°C to 85°C and enduring over 10,520 TBW at maximum capacity, ensuring long-term data integrity and performance.

Swissbit SFSA040GS2AK2TO – Reliable Industrial SATA SSD for Embedded Applications
View SFSA040GS2AK2TOI6B22PSTDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFSA040GS2AK2TO-I-6B-22P-STD
Stock:0
Inv Date:06-16-2026
Price: N/A
Buy/RFQ:

SWISSBIT SFSA040GS2AK2TOI6B22PSTD Industrial SATA SSD Specifications:

  • Form Factor: 2.5" SATA SSD (70 mm x 100 mm x 7 mm)
  • Capacity: 40 GBytes
  • Interface: SATA Gen3 - 6 Gbit/s, backward compatible with SATA Gen2 and Gen1
  • Sequential Read: Up to 560 MB/s
  • Sequential Write: Up to 360 MB/s
  • Random Read (4K): Up to 66,100 IOPS
  • Random Write (4K): Up to 78,600 IOPS
  • Power Consumption (Active Read): 2.8 W
  • Power Consumption (Active Write): 2.9 W
  • Operating Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Shock/Vibration Resistance: 1,500 g / 50 g
  • MTBF: > 2,000,000 hours
  • Endurance: TBW of 1,308 at 40 GB capacity
  • Data Retention: 10 years at start of life
  • Supports Secure Erase, TRIM, NCQ, ATA Security, Field Firmware Updates
  • Compliance: RoHS, CE, FCC, WEEE

Buy the Swissbit SFSA040GS2AK2TO – Reliable Industrial SATA SSD for Embedded Applications

Purchase your Swissbit industrial SATA SSD now and benefit from high endurance, reliable data protection, and rugged design tailored for demanding embedded environments. With easy online ordering, you get access to SATA Gen3 speeds, advanced wear leveling, power fail protection, and secure firmware updates. Perfect for applications requiring long-term data integrity, extreme temperature operation, and rugged resilience. Upgrade your existing systems today and ensure dependable performance with Swissbit’s trusted storage solutions, backed by technical support and global availability.

Order your Swissbit Series SFSA040GS2AK2TO industrial SSD today and enhance your embedded systems with dependable high-performance storage.

Frequently Asked Questions

Where can I buy SWISSBIT SFSA040GS2AK2TOI6B22PSTD?

You can click on the BUY or RFQ button to purchase SFSA040GS2AK2TOI6B22PSTD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFSA040GS2AK2TOI6B22PSTD?

You can download the SFSA040GS2AK2TOI6B22PSTD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFSA040GS2AK2TOI6B22PSTD?

SWISSBIT
