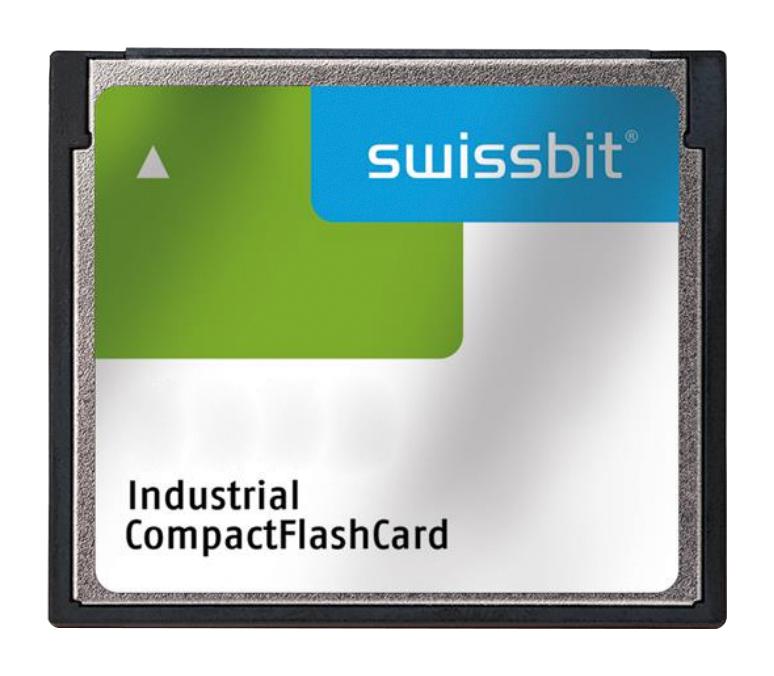

SWISSBIT SFCF4096H1AF2TOIQT523STD High-Speed Industrial CompactFlash
The Swissbit C-500 is an industrial-grade CompactFlash memory card offering high capacity from 128MB up to 64GB. It features a 32-bit RISC controller, high-performance UDMA6 transfer rates up to 133MB/s, and advanced wear leveling, error correction, and data management for outstanding endurance and reliability. Suitable for industrial and NetCom applications, it supports multiple modes including PC Card ATA and True IDE, conforming to CompactFlash specification 5.0. Its rugged design operates over a temperature range from -40°C to 85°C, with excellent data retention and MTBF exceeding 3 million hours.
SWISSBIT SFCF4096H1AF2TOIQT523STD High-Speed Industrial CompactFlash Specifications:
- Capacities: 128MB to 64GB
- Form Factor: CompactFlash Type I (36.4mm x 42.8mm x 3.3mm)
- Operation Temperature: -40°C to 85°C (Industrial), 0°C to 70°C (Commercial)
- Storage Temperature: -50°C to 100°C
- Interface: UDMA6, PIO6, MDMA2, up to 133MB/s burst transfer rate
- Sequential Read: up to 64MB/s, Sequential Write: up to 44MB/s
- Random Read IOPS: up to 3,200, Random Write IOPS: up to 1,900
- Power Consumption: Idle 4.5mA, Read 120mA, Write 100mA
- Error Correction: Hardware BCH ECC (up to 60-bit correction per 1KB)
- MTBF: >3 million hours
- Data Retention: 10 years at start of life
- Mechanical Dimensions: 36.4mm x 42.8mm x 3.3mm, weight max 10g
- Certifications: CE, FCC, RoHS, WEEE
- Supported Modes: PC Card ATA, True IDE, UDMA6
Buy the Buy Swissbit CompactFlash Part Number SFCF4096H1AF2TOIQT523STD Online
Discover the Swissbit high-performance industrial CompactFlash card SFCF4096H1AF2TOIQT523STD, offering up to 64GB capacity, UDMA6 interface, robust temperature range, and advanced wear leveling for maximum endurance. Perfect for demanding applications requiring fast data transfer, high reliability, and long-term data retention. Available for online purchase, ensuring quick delivery and support for mission-critical storage needs. Compatible with standard ATA and CompactFlash specifications, this card is ideal for industrial, automation, and networking environments where durability and speed are essential.
Order your Swissbit CompactFlash high-capacity memory card SFCF4096H1AF2TOIQT523STD today and optimize your industrial storage solutions with reliable performance.
