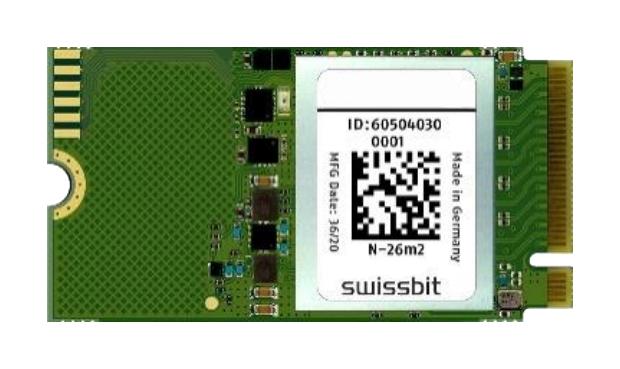

SWISSBIT SFPC040GM1EC4TOI5E11PSTD Industrial NVMe SSD

The Swissbit N-26m2 SSD is an industrial-grade M.2 PCIe NVMe drive available in capacities from 5GB to 160GB, supporting PCIe Gen3 x2/x4 interfaces, and featuring advanced data protection, error correction, and endurance capabilities suitable for embedded and high-performance applications. It incorporates a robust controller, 3D TLC NAND flash with LDPC ECC, and supports Temperature ranges from -40°C to 85°C, with high endurance, low power consumption, and secure data encryption options, making it ideal for demanding industrial environments.

Buy Swissbit SSD Part Number SFPC040GM1EC4TOI5E11PSTD Online
View SFPC040GM1EC4TOI5E11PSTDDatasheet [pdf]
Authorized Distributors
Source:Newark
Part No:SFPC040GM1EC4TO-I-5E-11P-STD
Stock:4
Inv Date:06-15-2026
Price: Unit price: $164.29
Buy/RFQ:
Source:Mouser Electronics
Part No:SFPC040GM1EC4TO-I-5E-11P-STD
Stock:0
Inv Date:06-16-2026
Price: N/A
Buy/RFQ:

SWISSBIT SFPC040GM1EC4TOI5E11PSTD Industrial NVMe SSD Specifications:

  • Form Factor: M.2 (2230/2242/2280), 30/42/80 mm x 22 mm x 2.63 mm
  • Capacities: 5GB, 10GB, 20GB, 40GB, 80GB, 160GB
  • Interface: PCIe Gen3 x2/x4, supports NVMe 1.3
  • Performance: Sequential Read up to 1773 MB/s, Write up to 827 MB/s; Random Read up to 140,000 IOPS, Write up to 131,000 IOPS
  • Operating Temp: -40°C to 85°C; Storage Temp: -40°C to 85°C
  • Voltage: 3.3V, 1.8V, 0.9V
  • Endurance: Client > 1550 TBW; MTBF over 2 million hours
  • Dimensions: Length 30/42/80 mm, Width 22 mm, Max Thickness 2.63 mm
  • Data Retention: Up to 10 years at 40°C
  • Certifications: RoHS, REACH, WEEE, EMC, FCC
  • Additional features: AES256 encryption (optional), ECC correction up to 120 bits, LDPC coding, Power management, End-to-end data protection

Buy the Buy Swissbit SSD Part Number SFPC040GM1EC4TOI5E11PSTD Online

Secure your system's storage with Swissbit's industrial-grade NVMe SSD. Designed for demanding environments, this high-performance drive offers capacities from 5GB to 160GB, supports PCIe Gen3 x2/x4 speeds, and features advanced data protection, error correction, and high endurance. Its temperature resilience from -40°C to 85°C, low power consumption, and optional AES256 encryption make it ideal for embedded applications and industrial automation. Order online now for fast, reliable storage solutions that optimize your workflow and ensure data integrity.

Order your Swissbit Series160GB NVMe SSD SFPC040GM1EC4TOI5E11PSTD today and give your projects the high-speed, reliable storage they deserve.

Frequently Asked Questions

Where can I buy SWISSBIT SFPC040GM1EC4TOI5E11PSTD?

You can click on the BUY or RFQ button to purchase SFPC040GM1EC4TOI5E11PSTD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFPC040GM1EC4TOI5E11PSTD?

You can download the SFPC040GM1EC4TOI5E11PSTD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFPC040GM1EC4TOI5E11PSTD?

SWISSBIT
