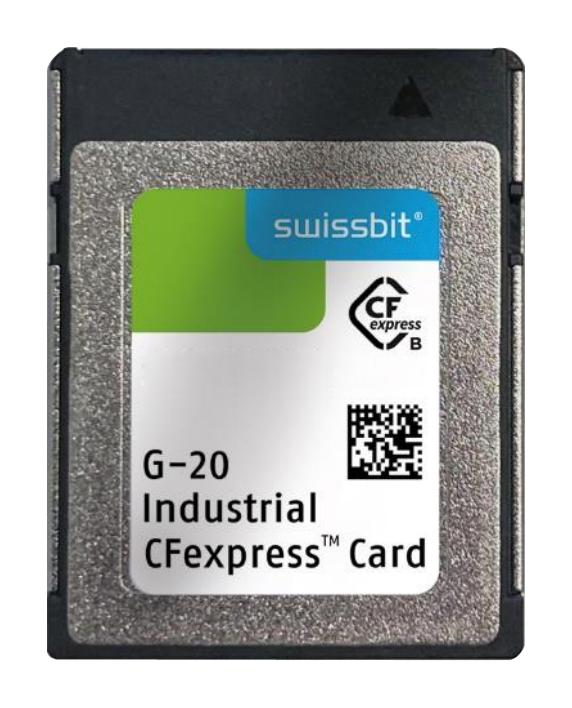

SWISSBIT SFCE060GW1EB2TOI5E111STD CFexpress Memory Card

The G-20 Series CFexpress Type B card offers high-speed data transfer with sequential read speeds up to 1,615 MB/s and write speeds up to 827 MB/s. Designed for industrial and automotive applications, it features 3D NAND Flash, LDPC code ECC for data integrity, and support for NVMe 1.3 commands via PCIe Gen3 x 2 lanes interface. Operating in temperatures from -40°C to 85°C, it supports power management, active wear leveling, Power Fail Data Loss Protection, and end-to-end data protection. Its robust design ensures 10 years of data retention, high reliability, and extensive lifecycle support for demanding environments.

Swissbit Series G-20 CFexpress: SFCE060GW1EB2TOI5E111STD
View SFCE060GW1EB2TOI5E111STDDatasheet [pdf]
Authorized Distributors
Source:Newark
Part No:SFCE060GW1EB2TO-I-5E-111-STD
Stock:5
Inv Date:06-15-2026
Price: Unit price: $145
Buy/RFQ:
Source:Mouser Electronics
Part No:SFCE060GW1EB2TO-I-5E-111-STD
Stock:0
Inv Date:06-16-2026
Price: N/A
Buy/RFQ:

SWISSBIT SFCE060GW1EB2TOI5E111STD CFexpress Memory Card Specifications:

  • Form Factor: CFexpress Type B, 38.5mm x 29.6mm x 3.8mm
  • Capacities: 15, 30, 60, 120, 240, 480 GBytes
  • Interface: PCIe Gen3 x 2 Lanes, Supports NVMe 1.3
  • Sequential Read Speed: Up to 1615 MB/s
  • Sequential Write Speed: Up to 827 MB/s
  • Random Read 4K: Up to 115,000 IOPS
  • Random Write 4K: Up to 131,000 IOPS
  • Operating Temp: -40°C to 85°C
  • Storage Temp: -40°C to 85°C
  • Operating Voltage: 3.3V
  • Data Retention: 10 Years @ Life Begin; 1 Year @ Life End
  • MTBF: Over 2,000,000 hours
  • Endurance: Up to 12,000 insertion/removal cycles
  • Features: Wear leveling, Power fail protection, E2E Data protection, AES256 encryption (optional)

Buy the Swissbit Series G-20 CFexpress: SFCE060GW1EB2TOI5E111STD

Experience rapid data transfer with the Swissbit G-20 CFexpress Memory Card, designed for industrial and automotive markets. Providing speeds up to 1,615 MB/s read and 827 MB/s write, it ensures efficient data handling for demanding applications. With broad temperature support from -40°C to 85°C, power management features, and robust data security, this card is ideal for embedded computing, automation, and IoT projects. Purchase online now for reliable, industrial-grade storage that guarantees data integrity and extended lifecycle performance.

Get Swissbit G-20 CFexpress card today—built for high-speed performance and long-lasting durability.

Frequently Asked Questions

Where can I buy SWISSBIT SFCE060GW1EB2TOI5E111STD?

You can click on the BUY or RFQ button to purchase SFCE060GW1EB2TOI5E111STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFCE060GW1EB2TOI5E111STD?

You can download the SFCE060GW1EB2TOI5E111STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFCE060GW1EB2TOI5E111STD?

SWISSBIT
