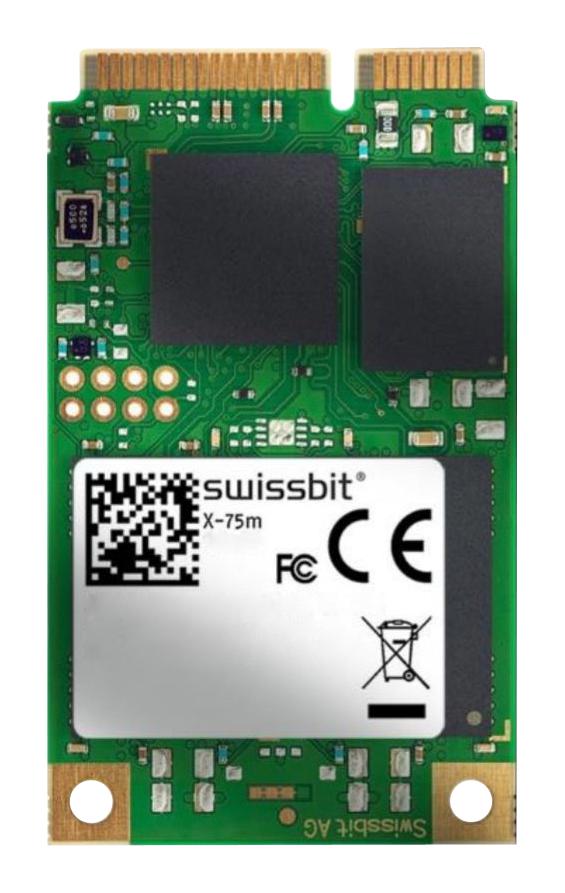

SWISSBIT SFSA030GU2AK1TOI5S236STD industrial mSATA SSD
The Swissbit X-75m Series mSATA SSD offers reliable high-speed storage with capacities ranging from 30GB to 960GB. Built on 3D TLC NAND flash technology, it supports SATA Gen3 with transfer speeds up to 565MB/s read and 495MB/s write. Designed for industrial and commercial use, it operates from 0°C to 70°C or -40°C to 85°C. Features include data protection, AES256 encryption, end-to-end data integrity, and firmware updates, making it ideal for embedded and industrial applications requiring durability and high performance.
SWISSBIT SFSA030GU2AK1TOI5S236STD industrial mSATA SSD Specifications:
- Form Factor: JEDEC MO-300 Full Size mSATA SSD (50.8 mm x 29.85 mm x 3.8 mm)
- Capacities: 30 GBytes, 60 GBytes, 120 GBytes, 240 GBytes, 480 GBytes, 960 GBytes
- Interface: SATA Gen3 - 6 Gbit/s, backward compatible with Gen2 - 3 Gbit/s and Gen1 - 1.5 Gbit/s
- Read Performance: Up to 565 MBytes/s sequential; 73,600 IOPS random read 4K
- Write Performance: Up to 495 MBytes/s sequential; 79,400 IOPS random write 4K
- Operating Temperature: 0°C to 70°C (commercial), -40°C to 85°C (industrial)
- Storage Temperature: -40°C to 85°C
- Voltage: 3.3 V ±5%
- Max Power Consumption: Active read 2.4 W, write 3.0 W, idle 395 mW
- Data Retention: 10 years at the start of lifetime, 1 year at the end
- Endurance: TBW > 3,240 for sequential write, > 310 for client workload, > 770 for enterprise workload
- Shock & Vibration: Up to 1,500 g / 50 g robustness
- NAND Flash: 3D TLC NAND
- Reliability: Mean time between failures over 2 million hours
- Features: Wear leveling, bad block remapping, power fail protection, TRIM, NCQ, ATA security, AES256 encryption (optional), TCG OPAL 2.0 (optional), SMART monitoring, firmware update support
Buy the Swissbit SFSA030GU2AK1TOI5S236STD – Reliable Industrial mSATA SSD for High-Speed Storage
Secure your data with the Swissbit industrial mSATA SSD. Engineered for high performance and durability, it offers capacities up to 960GB, supports SATA Gen3, and features AES256 encryption, wear leveling, and comprehensive data protection. Ideal for embedded systems and industrial applications, this SSD provides fast read/write speeds, extended temperature range, and long data retention. Purchase online today and ensure your systems operate reliably with Swissbit’s trusted storage solutions designed for demanding environments.
Buy Swissbit SFSA030GU2AK1TOI5S236STD now and experience unmatched reliability, high-speed data transfer, and robust industrial-grade durability.
