SWISSBIT SFSA060GQ2AK1TOI6B236STD Industrial SATA SSD

The Swissbit X-75 Series 2.5-inch industrial SATA solid state drive offers high capacity up to 1920 GB, with support for SATA Gen3 6 Gb/s, AES encryption, and advanced data management. Designed for demanding embedded systems, it features a rugged form factor, low power consumption, and a wide operating temperature range from -40°C to 85°C. The drive includes power fail protection, S.M.A.R.T. support, and in-field firmware updates, ensuring high reliability, endurance, and optimal performance with a TBW of up to 6,487. An ideal choice for industrial and enterprise storage applications requiring robust data security and high-speed transfer rates.

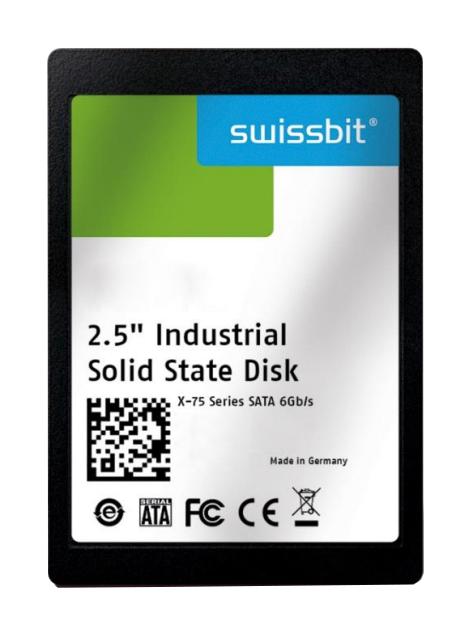

Swissbit Series X-75 SATA SSD: SFSA060GQ2AK1TOI6B236STD
View SFSA060GQ2AK1TOI6B236STDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFSA060GQ2AK1TO-I-6B-236-STD
Stock:0
Inv Date:06-16-2026
Price: Unit price: $142.59
Buy/RFQ:

SWISSBIT SFSA060GQ2AK1TOI6B236STD Industrial SATA SSD Specifications:

  • Capacity: 60 GBytes, 120 GBytes, 240 GBytes, 480 GBytes, 960 GBytes, 1920 GBytes
  • Form Factor: 2.5 inch SATA Solid State Drive (70 mm x 100 mm x 7 mm)
  • Connector: 7-pin SATA data, 15-pin power
  • Interface: SATA Gen3 - 6 Gbit/s, backward compatible with SATA Gen2 and Gen1
  • Sequential Read Speed: Up to 565 MB/s
  • Sequential Write Speed: Up to 495 MB/s
  • Random Read IOPS: Up to 73,600
  • Random Write IOPS: Up to 79,400
  • Operating Temperature: 0°C to 70°C (Commercial), -40°C to 85°C (Industrial)
  • Storage Temperature: -40°C to 85°C
  • Power Consumption: Read Active 2.5 W, Write Active 3.6 W, Idle 500 mW
  • MTBF: > 2,000,000 hours
  • Endurance: Up to 6,487 TBW for 1920 GB model
  • Physical Dimensions: Length 100.10±0.25 mm, Width 69.85±0.25 mm, Thickness 7.00±0.20 mm
  • Weight: Max 72 g
  • Compliance: SATA Revision 3.0, RoHS, WEEE, EMC, REACH
  • Security: Supports AES256 encryption, TCG OPAL 2.0 (on request), ATA Security feature set

Buy the Swissbit Series X-75 SATA SSD: SFSA060GQ2AK1TOI6B236STD

Order the Swissbit industrial SATA SSD online today and experience high-capacity, reliable data storage with support for AES encryption, high endurance up to 6,487 TBW, and temperature resilience from -40°C to 85°C. Perfect for demanding embedded systems and enterprise applications, this rugged SSD combines performance and security features with in-field firmware updates and comprehensive data management. Enhance your infrastructure’s robustness and ensure data integrity with a trusted industrial-grade storage solution available now for quick and secure online purchase.

Get Swissbit SFSA060GQ2AK1TOI6B236STD today—built for industrial reliability, high endurance, and high-speed data transfer.
