SWISSBIT SFSA120GM2AK2TOI6B236STD Industrial M.2 SATA SSD

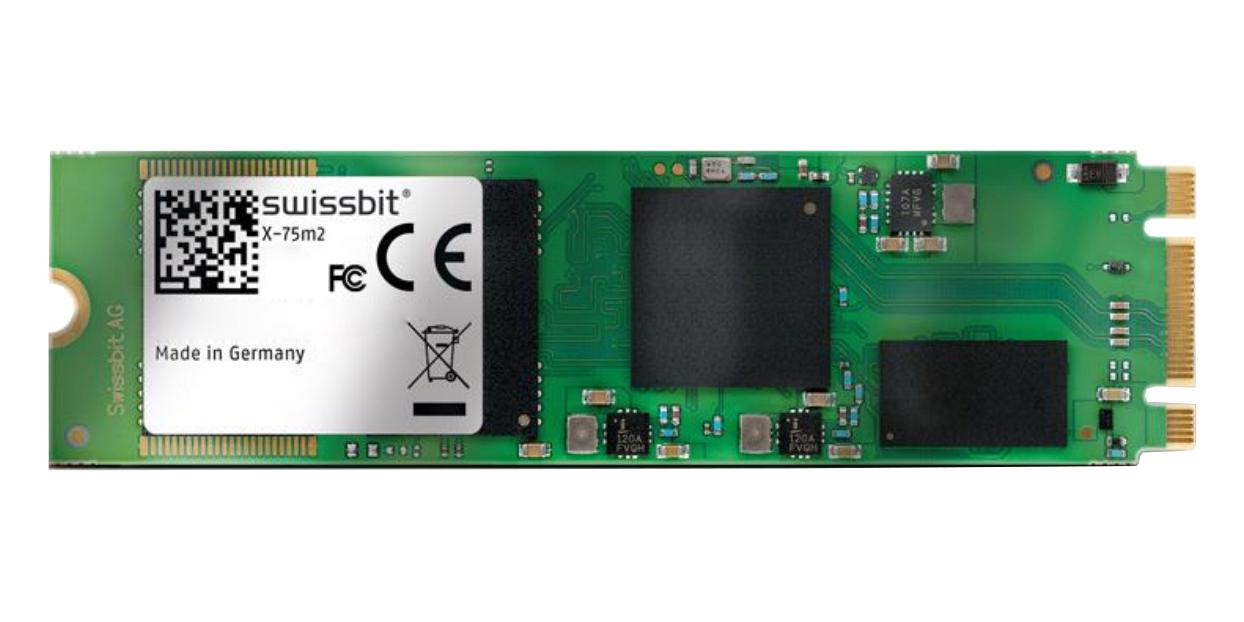

The Swissbit X-75m2 SSD is an industrial-grade M.2 SATA solid state drive leveraging TLC 3D NAND flash with PCIe interface support. It features advanced wear leveling, power fail protection, and firmware security standards including AES256 encryption and TCG OPAL. Designed for high-performance data transfer with sequential read speeds up to 565 MB/s and write speeds up to 495 MB/s, it offers excellent endurance, reliability, and wide temperature operation from -40°C to 85°C. Suitable for embedded, industrial, and enterprise applications requiring robust, high-capacity storage solutions.
SWISSBIT SFSA120GM2AK2TOI6B236STD Industrial M.2 SATA SSD Specifications:
- Form Factors: 2242 and 2280 PCIe M.2
- Capacities: 30 GB, 60 GB, 120 GB, 240 GB, 480 GB, 960 GB, 1920 GB
- Interface: SATA Gen3 - 6 Gbit/s, compatible with Gen2 and Gen1
- Sequential Read: up to 565 MB/s
- Sequential Write: up to 495 MB/s
- Random Read IOPS: up to 73,600
- Random Write IOPS: up to 79,400
- Operating Temperature Range: -40°C to 85°C
- Power Consumption: Max read 2.3 W, Max write 3.0 W, Idle 4 mW
- MTBF: over 2,000,000 hours
- Endurance: Up to 6.487 TBW for 1920 GB models
- Dimensions: 42 mm x 22 mm x 3.58 mm (2242) and 80 mm x 22 mm x 3.58 mm (2280)
- Weight: approximately 45g for 2242, 75g for 2280
- Compliance: RoHS, WEEE, CE, FCC
- Security: AES256, TCG OPAL (optional), ATA Security feature set
- Shock/Vibration: 1500 g / 50 g
- Power Fail Protection: Yes
Buy the Swissbit SFSA120GM2AK2TO – Reliable SATA SSD for Industrial Applications
Purchase the Swissbit SFSA120GM2AK2TO online today—engineered for demanding industrial, embedded and enterprise storage needs. This high-capacity M.2 SATA SSD offers exceptional performance with sequential read speeds up to 565 MB/s and write speeds up to 495 MB/s, ensuring rapid data access. It supports wide temperature ranges from -40°C to 85°C and includes advanced security features like AES256 encryption and TCG OPAL. Built for durability, resilience, and energy efficiency, it's ideal for critical systems requiring reliable, high-speed, non-volatile storage.
Get Swissbit SFSA120GM2AK2TO today—built for high-speed data transfer and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy SWISSBIT SFSA120GM2AK2TOI6B236STD?
You can click on the BUY or RFQ button to purchase SFSA120GM2AK2TOI6B236STD from an authorized SWISSBIT distributor.
How do I troubleshoot issues or seek technical support for part SFSA120GM2AK2TOI6B236STD?
You can download the SFSA120GM2AK2TOI6B236STD datasheet or visit the SWISSBIT website for support.
Who is the manufacturer of SFSA120GM2AK2TOI6B236STD?
SWISSBIT
