SWISSBIT SFCF016GH1AF4TOIMS523STD Industrial CompactFlash

The Swissbit C-500 Series industrial CompactFlash card offers high capacity from 128MB to 64GB, with advanced wear leveling, error correction, and support for UDMA6 interface speeds up to 133MB/s. Designed for harsh environments, it operates from -40°C to 85°C, ensuring reliability in industrial applications. Equipped with a high-performance 32-bit RISC controller, it supports multiple modes including PC Card ATA and True IDE, with features like S.M.A.R.T. monitoring, firmware updates, and lifetime management. Its robust hardware and sophisticated firmware ensure fast data access, long endurance, and data integrity under demanding conditions.

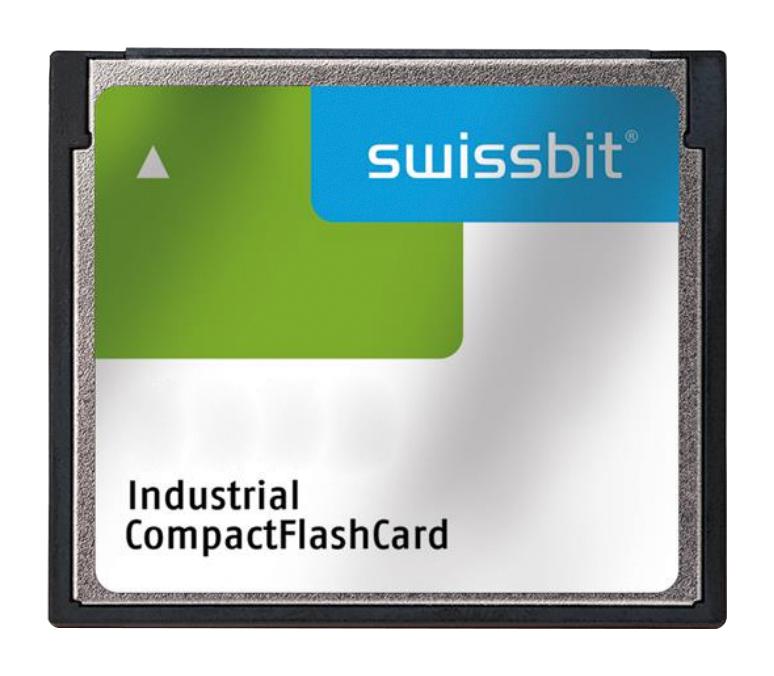

Swissbit Series CF Series CompactFlash Card: SFCF016GH1AF4TOIMS523STD
View SFCF016GH1AF4TOIMS523STDDatasheet [pdf]
Authorized Distributors
Source:DigiKey
Part No:SFCF016GH1AF4TO-I-MS-523-STD
Stock:0
Inv Date:06-15-2026
Price: Unit price: $688.99
Buy/RFQ:
Source:Mouser Electronics
Part No:SFCF016GH1AF4TO-I-MS-523-STD
Stock:0
Inv Date:06-16-2026
Price: Unit price: $772.85
Buy/RFQ:

SWISSBIT SFCF016GH1AF4TOIMS523STD Industrial CompactFlash Specifications:

  • Capacity: 16 GBytes
  • Form Factor: CompactFlash Type I (36.4 mm x 42.8 mm x 3.3 mm)
  • Interface: UDMA6 (up to 133 MB/s), Support for ATA 1/0, PC Card Memory Mode, True IDE Mode
  • Operating Temperature: -40°C to 85°C
  • Storage Temperature: -50°C to 100°C
  • Supply Voltage: 3.3V ±10%, 5V ±10%
  • Sequential Read Performance: up to 64 MB/s
  • Sequential Write Performance: up to 44 MB/s
  • Random Read IOPS: up to 3,200
  • Random Write IOPS: up to 1,900
  • Power Consumption: Active read 120 mA, Active write 100 mA, Idle 4.5 mA
  • Data Retention: 10 years at start of life, 1 year at end of life
  • MTBF: > 3,000,000 hours
  • Mechanical Dimensions: Length 36.4 mm, Width 42.8 mm, Thickness 3.3 mm
  • Compliance: CompactFlash Specification 5.0, CE, RoHS, WEEE

Buy the Swissbit Series CF Series CompactFlash Card: SFCF016GH1AF4TOIMS523STD

Discover the Swissbit industrial CompactFlash card with 16GB capacity, designed for reliability in harsh conditions. With advanced wear leveling, high-speed UDMA6 interface, and comprehensive S.M.A.R.T. monitoring, it ensures data integrity and fast access speeds. Its rugged construction supports -40°C to 85°C operating temperatures, making it ideal for industrial applications, embedded systems, and data logging. Easy to integrate with support for firmware updates and secure data management, this high-performance card is the perfect choice for demanding environments requiring durable and dependable storage solutions.

Buy Swissbit SFCF016GH1AF4TOIMS523STD now and experience unmatched reliability and performance in rugged industrial environments.

Frequently Asked Questions

Where can I buy SWISSBIT SFCF016GH1AF4TOIMS523STD?

You can click on the BUY or RFQ button to purchase SFCF016GH1AF4TOIMS523STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFCF016GH1AF4TOIMS523STD?

You can download the SFCF016GH1AF4TOIMS523STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFCF016GH1AF4TOIMS523STD?

SWISSBIT
