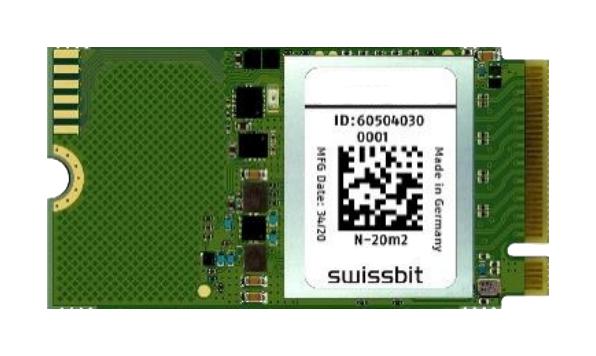

SWISSBIT SFPC030GM1EC1TOI5E116STD NVMe SSD

The Swissbit N-20m2 SSD is an industrial-grade PCIe NVMe drive leveraging 3D NAND flash technology. It features high sequential and random read/write speeds up to 1,773 MB/s and 131,000 IOPS respectively, with capacities from 15 GB to 480 GB. Designed for demanding embedded applications, it supports PCIe Gen3 x2/x4 interface, AES encryption, E2E data protection, and industry-standard reliability with MTBF exceeding 2 million hours. Operating temperatures range from -40°C to 85°C, ensuring durability and stability in harsh environments. Compact form factors include 2230, 2242, and 2280 models.

Buy Swissbit SSD Part Number SFPC030GM1EC1TOI5E116STD Online
View SFPC030GM1EC1TOI5E116STDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFPC030GM1EC1TO-I-5E-116-STD
Stock:0
Inv Date:06-16-2026
Price: Unit price: $315.45
Buy/RFQ:

SWISSBIT SFPC030GM1EC1TOI5E116STD NVMe SSD Specifications:

  • Capacities: 15 GBytes, 30 GBytes, 60 GBytes, 120 GBytes, 240 GBytes, 480 GBytes
  • Form Factor: PCI Express M.2 (2230/2242/2280, S4), 30/42/80 mm x 22 mm x 2.63 mm
  • Interface: NVMe 1.3, PCIe Gen3 x2/x4, 4 Lanes
  • Sequential Read: Up to 1,773 MB/s, Random Read 4K: up to 140,000 IOPS
  • Sequential Write: Up to 827 MB/s, Random Write 4K: up to 131,000 IOPS
  • Operating Temperature: -40°C to 85°C for industrial, 0°C to 70°C for commercial
  • Storage Temperature: -40°C to 85°C
  • Supply Voltages: 3.3V, 1.8V, 0.9V
  • Data Retention: 10 years at 40°C, 1 year at end of life
  • MTBF: > 2,000,000 hours
  • Features: AES256 encryption, E2E data protection, wear leveling, power fail protection
  • Interfaces: 75-pin edge connector with M key, supports host read/write, control, power
  • Compliance: PCIe, NVMe, RoHS, REACH, WEEE, EMC
  • Physical Dimensions: varies by form factor, max thickness 2.63mm, weight <5.50g

Buy the Buy Swissbit SSD Part Number SFPC030GM1EC1TOI5E116STD Online

Experience the high performance and reliability of the Swissbit NVMe SSD series. With capacities up to 480 GB and speeds over 1,700 MB/s, these drives are ideal for demanding industrial and embedded applications. Supporting PCIe Gen3 x2/x4 interfaces, they ensure rapid data transfer, intensive workload handling, and robust data security with AES256 encryption. Designed to operate seamlessly from -40°C to 85°C, they provide exceptional durability and long-term data retention. Purchase online today to upgrade your storage with a trusted solution for mission-critical projects.

Order your Swissbit series SFPC030GM1EC1TOI5E116STD high-speed NVMe SSD today and enhance your embedded system's performance with reliable data transfer speeds and advanced protection features.

Frequently Asked Questions

Where can I buy SWISSBIT SFPC030GM1EC1TOI5E116STD?

You can click on the BUY or RFQ button to purchase SFPC030GM1EC1TOI5E116STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFPC030GM1EC1TOI5E116STD?

You can download the SFPC030GM1EC1TOI5E116STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFPC030GM1EC1TOI5E116STD?

SWISSBIT
