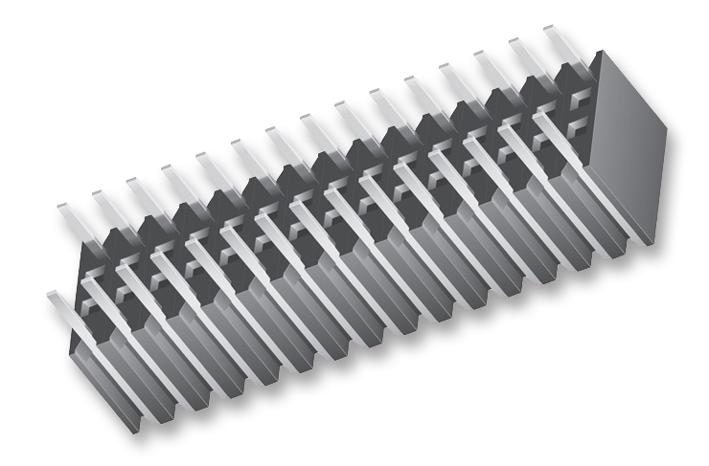

SAMTEC BSW10204SD bottom-entry socket strip
The BSW series from Samtec features bottom-entry socket strips designed for through-hole mounting, supporting high-temperature soldering and low profile connections. These connector strips incorporate 0.025-inch (0.635 mm) square posts compatible with multiple Samtec series such as TSW, MTSW, HTSW, MTLW, TSM, EW, ZW, HW, DW, and PHT. Available in standard and low insertion force options, they include solder tails, with configurations for single or dual rows, extended plug spaces, and varying contact counts from 2 to 36 in a vertical orientation. Constructed with black thermoplastic insulator and phosphor bronze contacts with gold or tin plating, they operate within -55°C to +125°C, with resistance of 10 mΩ, meeting UL and CSA standards. These sockets are ideal for applications requiring soldering and plugging from the same PCB side, offering reliable, high-performance connections for industrial electronics and manufacturing equipment.
SAMTEC BSW10204SD bottom-entry socket strip Specifications:
- Insulator Material: Black thermoplastic
- Contact Material: Phosphor bronze
- Plating: Au or Sn over 50µ" Ni
- Operating Temperature Range: -55°C to +125°C with gold, -55°C to +105°C with tin
- Contact Resistance: 10 mΩ
- Insulation Resistance: 5000 MΩ minimum
- Withstanding Voltage: 1000 VRMS @ 60 Hz
- Insertion Depth: 0.145" to 0.250" (3.68 mm to 6.35 mm)
- Insertion Force: 8 oz (standard), 3 oz (low insertion force)
- Withdrawal Force: 8 oz (standard), 3 oz (low force)
- Number of Contacts: 2 to 36 per row in vertical orientation
- Configuration: Single or dual row, with options for extended plug spaces
- Compatibilities: Supports TSW, MTSW, HTSW, MTLW, TSM, EW, ZW, HW, DW, PHT series
- Standards: UL E111594, CSA 090871
