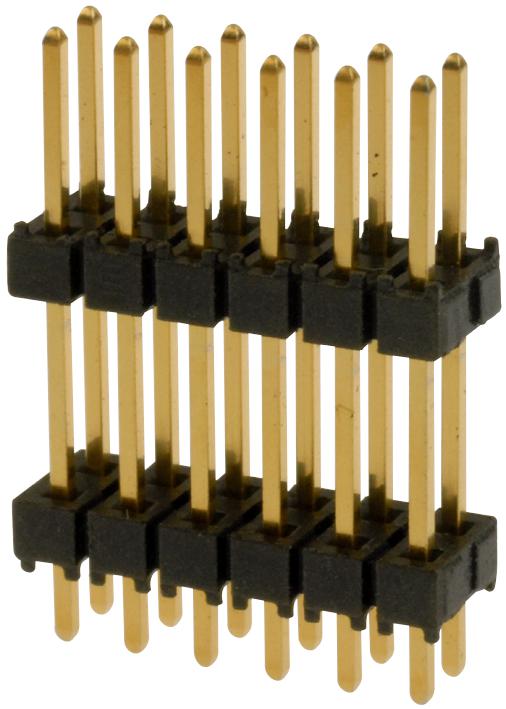

SAMTEC DW0209TD500 Flexible Board Stacker
SAMTEC's DW series flexible board stackers provide a reliable solution for connecting boards in a variety of applications. These stackers feature a flexible design that accommodates slight misalignments and vibrations. Available with different lead styles, plating options (gold or tin), and stacker heights, they can be tailored to meet specific requirements. The series is RoHS compliant and lead-free solderable, making them suitable for modern electronics manufacturing. For added mechanical stability, Samtec recommends using mechanical board spacers.
SAMTEC DW0209TD500 Flexible Board Stacker Specifications:
- Mates with: SSW, SSQ, ESW, ESQ, CES, SLW, BSW, BCS, SSM, HLE, PHF
- Operating Temp Range: -55 °C to +125 °C (Gold), -55 °C to +105 °C (Tin)
- Insulator Material: DW, EW, ZW: Black Glass Filled Polyester, HW: Natural Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50 µ" (1.27 µm) Ni
- RoHS Compliant: Yes
- Lead Free Solderable: DW, EW, ZW: No (Lead Wave Only), HW: Yes
- Tail Length: (2.54) .100"
- Stacker Height: (5.08) .200"
- Overall Length: (8.38) .330"
- No. of Pins Per Row: Specify LEAD STYLE
- OAL: (10.92) .430"
- Row Height: (6.35) .250"
- Minimum Example: (16.00) .630"
- Tail Style: –D
- Pin Spacing: (2.54) .100"
- Custom Tail: –T
- Locking: –LL
- Gold Flash on Contact: –G
- Matte Tin on Tail: –S
- High Temp Custom Tail: –F
