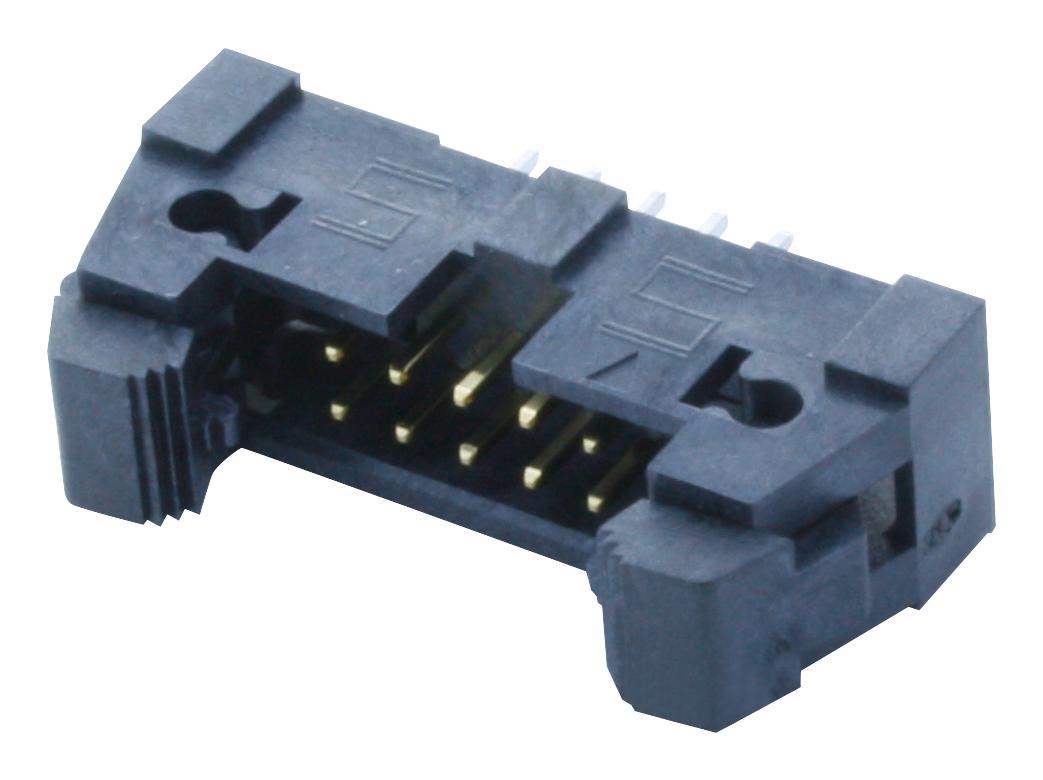

SAMTEC EHT12001SDSMLC IDC Connector
The EHT-120-01-F-D-SM-LC is a high-quality shrouded IDC connector featuring black Liquid Crystal Polymer insulation and phosphor bronze terminals with optional tin or gold plating over nickel. Designed for 2 mm IDC cable assemblies, it supports a wide operating temperature of -55°C to +125°C and complies with RoHS standards. Suitable for surface mount, right-angle, or through-hole configurations, this connector ensures low coplanarity of 0.004 inches, facilitating reliable PCB connections in demanding industrial and electronic applications. Its certifications and lead-free processing make it ideal for durable, eco-friendly assembly solutions.
SAMTEC EHT12001SDSMLC IDC Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over Ni (50 y), optional Matte Tin
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.004 inches (0.10 mm)
- Number of Positions: 5, 8, 10, 12, 13, 15, 17, 20, 22, 25
- Contact Configuration: Straight, Right-Angle, Surface Mount
- Cable Compatibility: 2 mm IDC cables
- Plating Options: Sn or Au over Ni, Matte Tin
- Connector Length: Varies based on configuration, typical length approx. 9.65 inches (245 mm)
- Compliance: RoHS, Recognized by multiple certifications
- Processing: Lead-Free Soldering Compatible, Reputable for high reliability
- Durability: Designed for repeated mating cycles and secure PCB attachment
Buy the Samtec Series EHT IDC Connector: EHT-120-01-F-D-SM-LC
Purchase the Samtec IDC connector online today for your electronic assembly needs. This high-performance, RoHS-compliant connector features durable materials, reliable contact plating options, and versatile mounting options for PCB, surface, or through-hole applications. Its wide temperature range and lead-free compatibility ensure eco-friendly, long-lasting performance in industrial, computer, and automation systems. Simplify your procurement process by ordering online and ensure your projects are equipped with top-quality, expertly engineered connectors delivering optimal electrical and mechanical performance.
Get Samtec EHT-120-01-F-D-SM-LC today—built for precision, durability, and reliable PCB and cable connections.
Frequently Asked Questions
Where can I buy SAMTEC EHT12001SDSMLC?
You can click on the BUY or RFQ button to purchase EHT12001SDSMLC from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part EHT12001SDSMLC?
You can download the EHT12001SDSMLC datasheet or visit the SAMTEC website for support.
Who is the manufacturer of EHT12001SDSMLC?
SAMTEC
