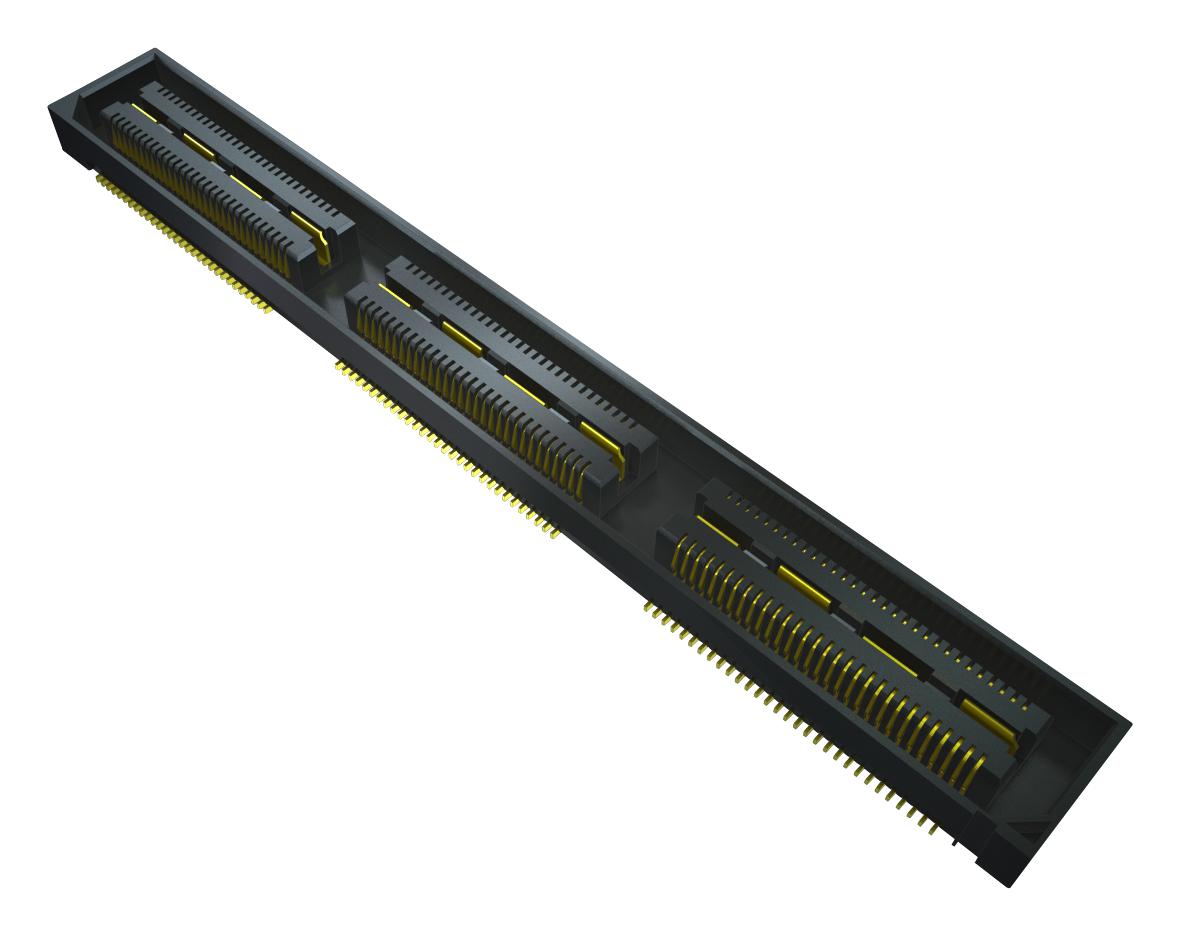

SAMTEC QSH03001FDAK High-Density Micro Pin Header
The QSH series are high-density, gold-flashed, micro pin headers featuring a 0.0197-inch pitch. Made with phosphor bronze contact material and matte tin or gold plating, they support reliable connections for PCB applications. Suitable for high-speed and low-current signals, these connectors operate within a temperature range of -55°C to +105°C with a maximum voltage rating of 175 VAC at a 5 mm stack height. Designed for SMT mounting with coplanarity of 0.004 inches, they are lead-free and compatible with pick-and-place assembly processes for efficient manufacturing.
SAMTEC QSH03001FDAK High-Density Micro Pin Header Specifications:
- Pitch: 0.0197 inches (0.50 mm)
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 microns Ni
- Operating Temperature Range: -55°C to +105°C
- Voltage Rating: 175 VAC at 5 mm stack height
- Number of Pairs: 20 pairs per bank (max)
- Current Capacity: 25 A per ground plane, 2 A per pin
- Lead-Free Compatible: Yes
- Coplanarity: 0.004 inches (0.10 mm)
- Assembly Method: SMT, pick and place
- Connector Length: varies, typically 7.00 mm, 8.25 mm, 10.00 mm, 11.00 mm, 13.26 mm, 15.25 mm, 16.00 mm, 18.26 mm, 19.00 mm
- Additional details: suitable for high-speed data transfer and low-current power applications, with optional tape and reel packaging for automation
- Certifications: UL listed (implied), high durability with 10-year + performance life
Buy the Buy Samtec QSH Series Pin Headers Part Number QSH03001FDAK Online
Purchase the Samtec Series QSH high-density micro pin header online today to enhance your electronic assemblies with reliable, precision connections. These SMT-mounted pins with 0.0197-inch pitch and gold flash plating deliver excellent performance in high-speed data transfer and low-current power applications. Designed for durability and ease of manufacturing, they support lead-free processes and offer coplanarity within 0.004 inches. Stocked for quick delivery, the QSH series ensures your projects meet demanding technical specifications efficiently.
Order your Samtec Series QSH03001FDAK high-density pin headers today and ensure reliable, high-speed connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC QSH03001FDAK?
You can click on the BUY or RFQ button to purchase QSH03001FDAK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QSH03001FDAK?
You can download the QSH03001FDAK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QSH03001FDAK?
SAMTEC
