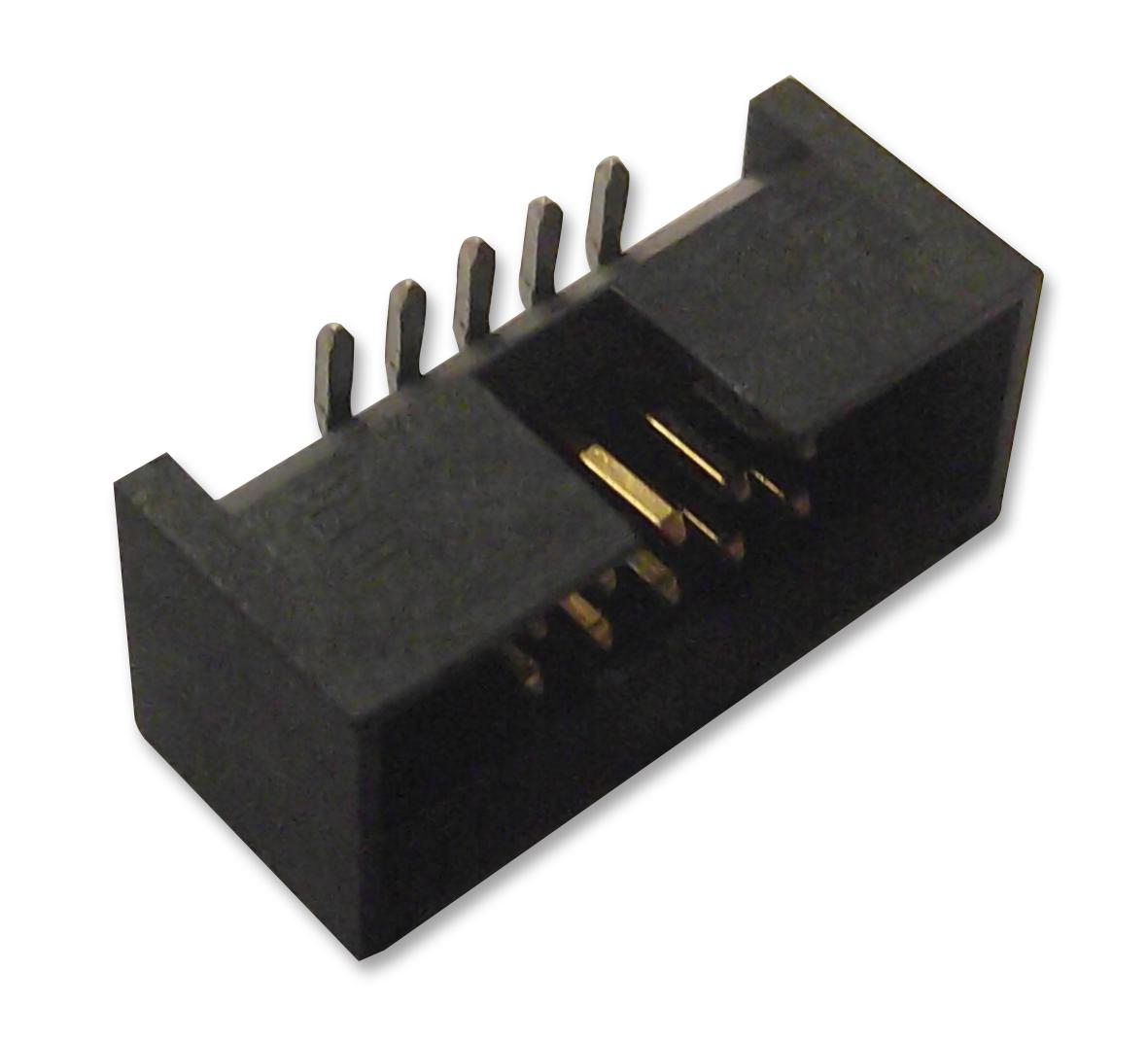

SAMTEC SHF10801LDSM Surface-Mount Female Connector
The SHF10801LDSM is a high-precision, liquid crystal polymer insulated female connector designed for reliable surface-mount applications. It features phosphor bronze terminals with tin or gold plating over nickel, operating between -55°C and +125°C, and is RoHS compliant for environmentally conscious assembly. Suitable for various pin configurations with coplanarity of 0.004 inches, it ensures robust and consistent electrical connections. Ideal for demanding industrial, communications, and electronic systems, this connector offers durability, excellent heat resistance, and compatibility with lead-free soldering processes, making it suitable for high-performance electronic assemblies.
SAMTEC SHF10801LDSM Surface-Mount Female Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over Ni (50p" or 1.27 mm)
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- SMT Lead Coplanarity: 0.004"
- Contact Pins per Row: Varies (no specific data)
- Sizes Available: 1.27 mm (.050") pitch, with compatibility for multiple pin counts
- Voltage and current ratings not specified but suitable for electronic connector applications
- Durability: Designed for repeated mating cycles, stable electrical connection
- Additional: Optional lead plating, strain relief considerations, and non-standard sizes available upon request
Buy the Samtec SHF10801LDSM – Reliable Surface-Mount Female Connectors for Industrial Applications
Purchase the Samtec SHF10801LDSM online today—engineered for reliability in industrial electronics. Featuring high-precision liquid crystal polymer insulators and durable phosphor bronze terminals, this connector supports lead-free soldering and wide temperature ranges. Its compact SMT design offers excellent coplanarity and electrical stability, ensuring optimal performance in electronic assemblies. Perfect for industrial, communication, and electronic device applications, this high-quality connector guarantees consistency, robustness, and long-term reliability, making it an essential component for high-performance systems.
Get Samtec SHF10801LDSM today—built for precision and long-lasting durability in demanding electronic systems.
Frequently Asked Questions
Where can I buy SAMTEC SHF10801LDSM?
You can click on the BUY or RFQ button to purchase SHF10801LDSM from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SHF10801LDSM?
You can download the SHF10801LDSM datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SHF10801LDSM?
SAMTEC
