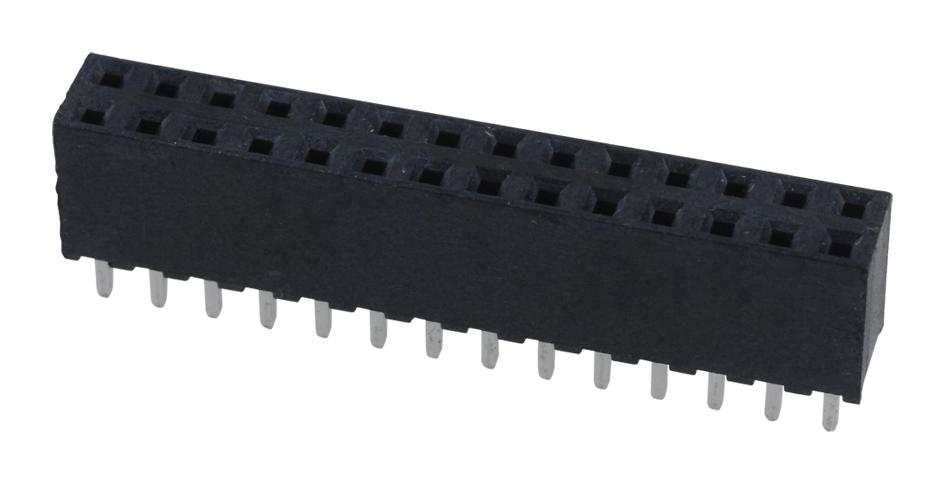

SAMTEC SQT10901LD High-Density Electronic Connector
The SQT series connectors are high-performance, compact electronic components with a 2.00 mm pitch and gold or tin plating, suitable for through-hole and right-angle mounting. They feature black liquid crystal polymer insulators, phosphor bronze contacts, and a voltage rating of up to 281 VAC, operating efficiently from -55°C to +125°C. Designed for up to 100 insertion cycles, these RoHS-compliant connectors are ideal for demanding electronic applications requiring reliable, durable interconnections with flexible configurations including multiple rows and mounting options. They are perfect for use in industrial and high-density electronic assemblies.
SAMTEC SQT10901LD High-Density Electronic Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over SO4F
- Voltage Rating: 281 VAC mated with TMM; 250 VAC mated with TMMH
- Operating Temp Range: -55 °C to +125 °C
- Insertion Depth: 2.62 mm to 5.03 mm
- Normal Force: 60 grams (0.59 N) average
- Max Cycles: 100 with TOL Gold plating
- RoHS Compliant: Yes
- Lead Free Solderable: Yes
- Pitch: 2.00 mm
- Number of pins: Varies by model, up to multiple rows
- Peak Operating Voltage: 281 VAC
- Mounting Options: Through-hole, right-angle, vertical, and others
- Compatibility: TMM, TMMH, MTMM, ZLTMM, PTT, TSH, and other board mates
Buy the Buy Samtec SQT Series Part Number SQT10901LD Online
Purchase the Samtec SQT series connector online and enjoy premium quality, durability, and versatile mounting options suitable for demanding industrial and electronic applications. These connectors feature a 2.00 mm pitch, gold or tin plating for enhanced durability, and operate reliably from -55°C to +125°C. RoHS compliant and rated for up to 100 insertion cycles, they are perfect for high-density interconnections in various electronic devices and systems, ensuring secure and durable electrical connections for critical applications.
Buy Samtec SQT10901LD now and experience unmatched reliability and performance in high-density electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SQT10901LD?
You can click on the BUY or RFQ button to purchase SQT10901LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQT10901LD?
You can download the SQT10901LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQT10901LD?
SAMTEC
