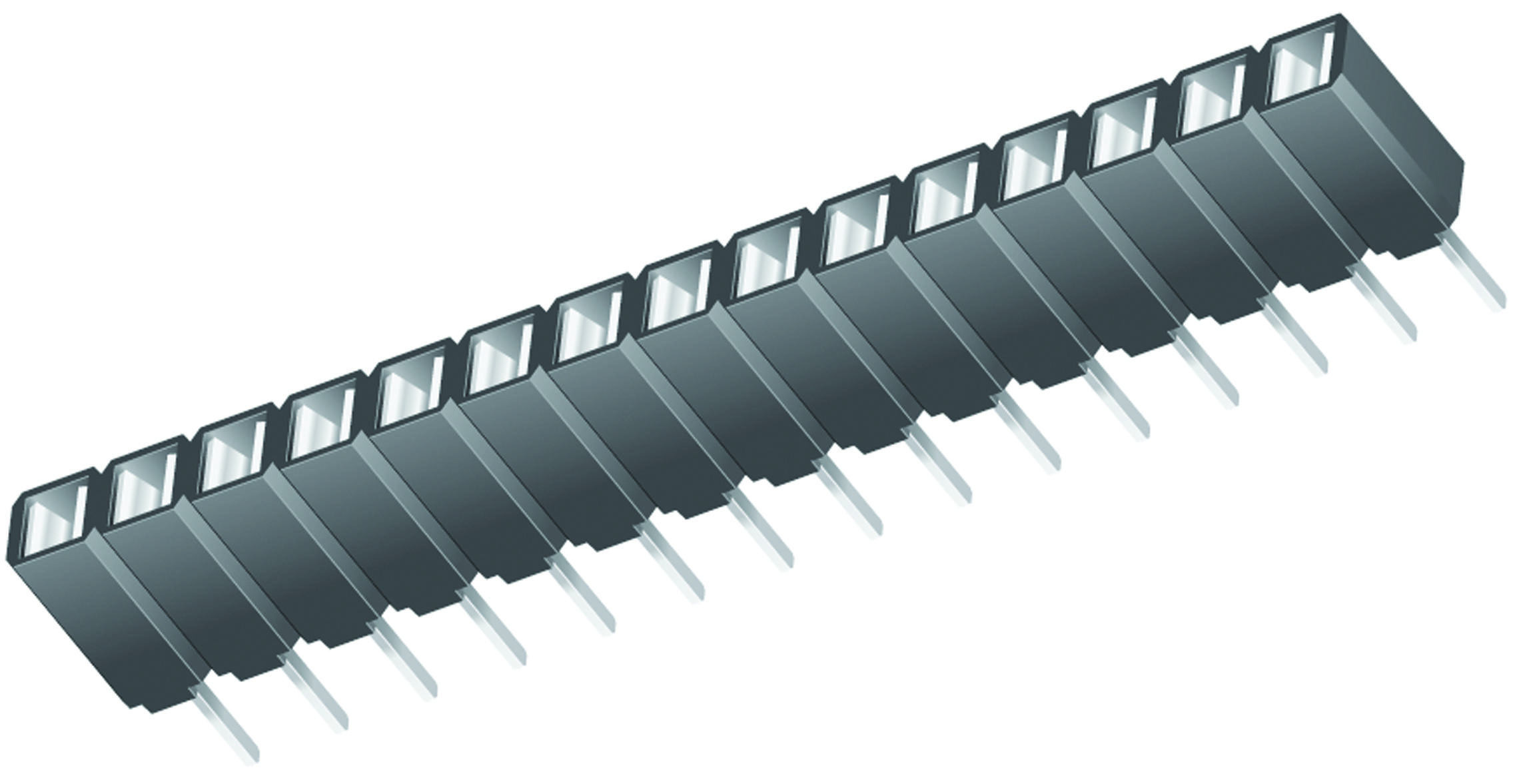

SAMTEC SSA126SG PCB Connector
The SSA126SG is a high-reliability, double-sided wipe, snap-strip connector with gold or tin plating over phosphor bronze contacts, designed for PCB applications up to 125°C. It features a black PET polyester insulator, standoffs for easy board cleaning, and is RoHS compliant. The connector supports an operating voltage of 1000 V and has a contact resistance of 20 mΩ. Suitable for high-performance electronic assemblies, it offers simplified installation and long-term durability in demanding environments.
SAMTEC SSA126SG PCB Connector Specifications:
- Insulator Material: Black PET Polyester
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 1 μm
- Flammability Rating: UL 94V-0
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Heat Deflection Temp: 215°C @ 264 psi
- Dielectric Withstanding Voltage: 1000 V RMS
- Contact Resistance: 20 mΩ typical
- Lead Size Range: 0.38 mm to 0.56 mm (0.015
- 0.022
- to most IC leads
- Insertion Depth: 1.27 mm (0.050"), 3.30 mm (0.130")
- Insertion Force: 10 oz (2.78 N) (single contact)
- Withdrawal Force: 5 oz (1.39 N) (single contact)
- RoHS Compliant: Yes
- Lead-Free Solderable: Wave
- Connector Type: Double-sided wipe, snap-strip contacts
- Additional Features: Standoffs for easy board cleaning, selectively plated for lower contact resistance
Buy the Samlec Series SSA: PCB Connector SSA126SG
Discover the Samlec SSA126SG, a high-reliability PCB connector with gold or tin plating, suited for demanding electronic assemblies. It features a black PET polyester insulator, RoHS compliance, and a design optimized for easy board cleaning with standoffs. With a maximum temperature of 125°C, supporting 1000 V, and low contact resistance of 20 mΩ, this connector guarantees durability and consistent performance. Ideal for high-performance applications, it's available online for quick, secure purchasing to enhance your electronic projects.
Buy Samlec SSA126SG now and experience unmatched reliability and performance with high-temperature capability and easy installation in your electronic designs.
Frequently Asked Questions
Where can I buy SAMTEC SSA126SG?
You can click on the BUY or RFQ button to purchase SSA126SG from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSA126SG?
You can download the SSA126SG datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSA126SG?
SAMTEC
