SAMTEC SSW11802SSRALL Socket Connector
The SSW11802SSRALL is a through-hole socket with a 2.54 mm pitch, designed for high-temperature applications with Phosphor Bronze contacts plated with gold or tin. It features a black liquid crystal polymer insulator, supports a maximum current of 6.3 A per pin, and a voltage rating of 465 VAC / 655 VDC. Suitable for sizes up to 36 pins, it offers different lead styles and plating options. The socket operates in temperatures between -55°C and +125°C with gold plating, ensuring reliable, durable connections in electronic assemblies.
SAMTEC SSW11802SSRALL Socket Connector Specifications:
- Pitch: 2.54 mm (0.100 inch)
- Contact Material: Phosphor Bronze
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Plating Options: Gold or Tin
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Operating Temperature: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 3.68 mm (0.145 inch) or 6.35 mm (0.25 inch)
- Lead Styles: Single, Double, and Multi-row options
- RoHS Compliant: Yes
- Max Pins: Up to 36
- RoHS Compliant: Yes
- Wave Solderable: Yes
- Other features: Non-standard and non-returnable lengths and options available

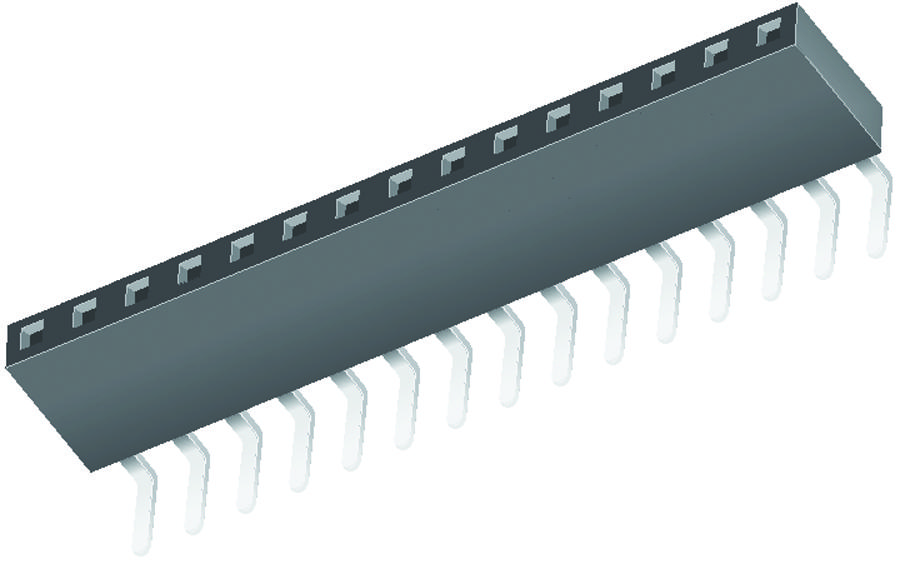

Buy the Buy Samtec SSW11802SSRALL Part Number SSW11802SSRALL Online
Order the Samtec SSW11802SSRALL socket online now to ensure high-quality, durable, and reliable connections for your electronic assembly. This socket features a 2.54 mm pitch, with Phosphor Bronze contacts plated with gold or tin for excellent corrosion resistance. Its black Liquid Crystal Polymer insulator withstands temperatures up to +125°C, making it suitable for demanding environments. Available in various lead styles and pin counts, it supports high current ratings of 6.3 A per pin and voltage up to 465 VAC / 655 VDC. Easy to install, RoHS compliant, and wave solderable, it is ideal for precise electronic applications requiring robust, long-lasting interconnections.
Get Samtec SSW11802SSRALL today—built for reliable connections with high-temperature tolerance and versatile lead options.
Frequently Asked Questions
Where can I buy SAMTEC SSW11802SSRALL?
You can click on the BUY or RFQ button to purchase SSW11802SSRALL from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW11802SSRALL?
You can download the SSW11802SSRALL datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW11802SSRALL?
SAMTEC
