SAMTEC TSW20505TT Terminal Header
The TSW series from Samtec are reliable terminal strip headers designed for secure electrical connections. These through-hole headers feature 0.025-inch square posts compatible with various Samtec series such as SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS. Available in single, dual, or triple row configurations with optional locking, they provide numerous pin counts and terminal lengths for diverse signal integrity requirements. Operating at -55°C to 105°C, with phosphor bronze terminals and a black polyester insulator, they meet UL E111594 and CSA standards, ensuring durability and high performance.
SAMTEC TSW20505TT Terminal Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over 1.27 μm Ni
- Operating Temperature Range: -55 °C to +125 °C with Gold, -55 °C to +105 °C with Tin
- Voltage Rating: 550 VAC with SSW, 500 VAC with BCS or ESQ, 450 VAC with BCS or SSM, 400 VAC with CES
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (HTSW), No (TSW, lead wave only)
- Pin Centers: 2.54 mm (0.100 inch)
- Available Styles: Straight and right-angle versions
- Current Rating: Up to 5.2 A per pin depending on style and configuration
- Connector Compatibility: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Number of Positions: Varies, with options for 2 to 25 positions
- Additional Features: Optional locking, shunts, elevated right-angle options

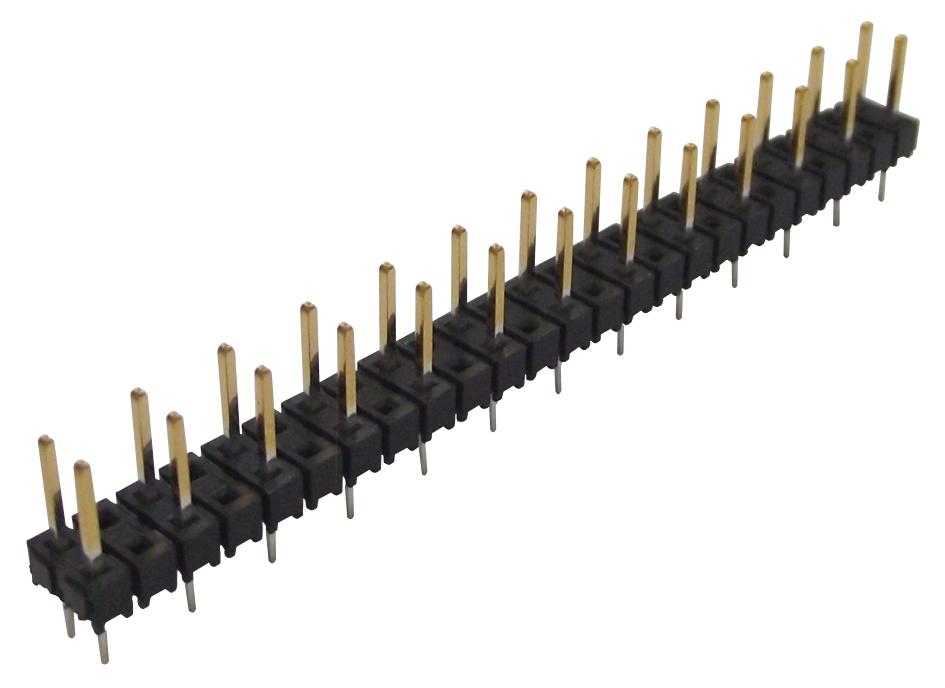

Buy the Buy Samtec TSW Series Part Number TSW20505TT Online
Purchase the Samtec TSW series terminal header online today to benefit from dependable electrical connections and versatile configurations. These headers support a wide range of applications with high durability, operating efficiently from -55°C to 105°C, and conform to UL and CSA standards for safety and quality. Featuring various pin counts, styles, and optional locking mechanisms, they are suitable for critical signal and power connections in electronic assemblies. Choose online to enjoy fast delivery, competitive pricing, and expert support for your electrical connection needs.
Get Samtec TSW20505TT today—designed for reliable and high-performance electrical connections in your projects.
