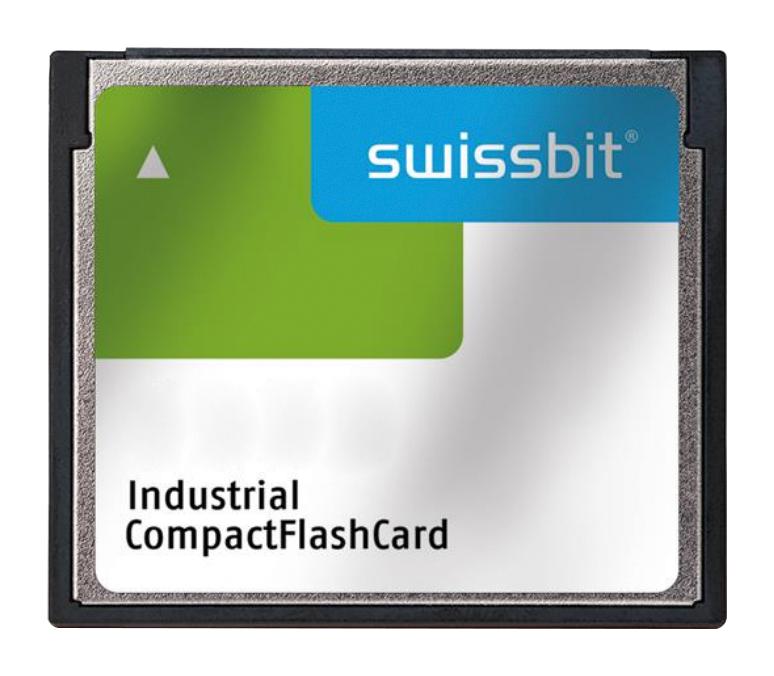

SWISSBIT SFCF064GH1AF4TOIQT527STD Industrial CompactFlash
The Swissbit C-500 Series industrial CompactFlash memory card offers capacities from 128MB to 64GB, with high performance UDMA6 transfer rates up to 133MB/s, and supports advanced features like wear leveling, data care, and firmware updates. Designed for industrial and embedded applications, it ensures reliable operation over a temperature range of -40°C to 85°C, with robust compliance to industry standards. Its low power consumption and high endurance make it ideal for mission-critical systems, providing fast boot times, data retention, and long service life.
SWISSBIT SFCF064GH1AF4TOIQT527STD Industrial CompactFlash Specifications:
- Capacity: 64 GBytes
- Form Factor: CompactFlash Type I
- Dimensions: 36.4 mm x 42.8 mm x 3.3 mm
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -50°C to 100°C
- Voltage: 3.3V ±10%, 5V ±10%
- Sequential Read: Up to 64.5 MB/s
- Sequential Write: Up to 42.8 MB/s
- Random Read IOPS: ~2,880
- Random Write IOPS: ~1,330
- Endurance: > 409 TBW
- MTBF: > 3,000,000 hours
- Compliance: CE, FCC, RoHS, WEEE, EN61000-6-2
- Power Consumption: Active read 20mA, write 100mA, idle 4.5mA
- Interfaces Supported: UDMA6, MDMA2, PIO, true IDE mode
- ECC: Hardware BCH
Buy the Swissbit Series Industrial CompactFlash Card: SFCF064GH1AF4TOIQT527STD
Purchase the Swissbit industrial CompactFlash card today for reliable, high-performance storage. With capacities up to 64GB, extended temperature ranges, and advanced wear leveling, this card guarantees durability and fast data access in demanding industrial applications. Perfect for embedded systems, automation, and military use, it supports UDMA6 interface for rapid transfer speeds, ensuring your systems operate efficiently and without interruption. Order now and experience dependable, long-lasting storage solutions built for harsh conditions.
Get Swissbit SFCF064GH1AF4TOIQT527STD today—built for high endurance, fast data transfer, and reliable storage in industrial environments.
Frequently Asked Questions
Where can I buy SWISSBIT SFCF064GH1AF4TOIQT527STD?
You can click on the BUY or RFQ button to purchase SFCF064GH1AF4TOIQT527STD from an authorized SWISSBIT distributor.
How do I troubleshoot issues or seek technical support for part SFCF064GH1AF4TOIQT527STD?
You can download the SFCF064GH1AF4TOIQT527STD datasheet or visit the SWISSBIT website for support.
Who is the manufacturer of SFCF064GH1AF4TOIQT527STD?
SWISSBIT
