SWISSBIT SFCF2048H1AF2TOIDS523STD Industrial CompactFlash Card

The Swissbit C-500 CompactFlash Memory Card offers high performance and industrial-grade reliability with capacities up to 64 GBytes. Featuring a high-performance 32-bit RISC controller, supports UDMA6, MDMA2, and PIO6 interface modes, ensuring fast data transfer rates. It operates reliably within industrial temperature ranges down to -40°C and up to 85°C, with low power consumption, and conforms to CompactFlash specification 5.0. Ideal for industrial applications requiring durable, high-capacity storage with features like wear leveling, bad block management, and advanced data retention.

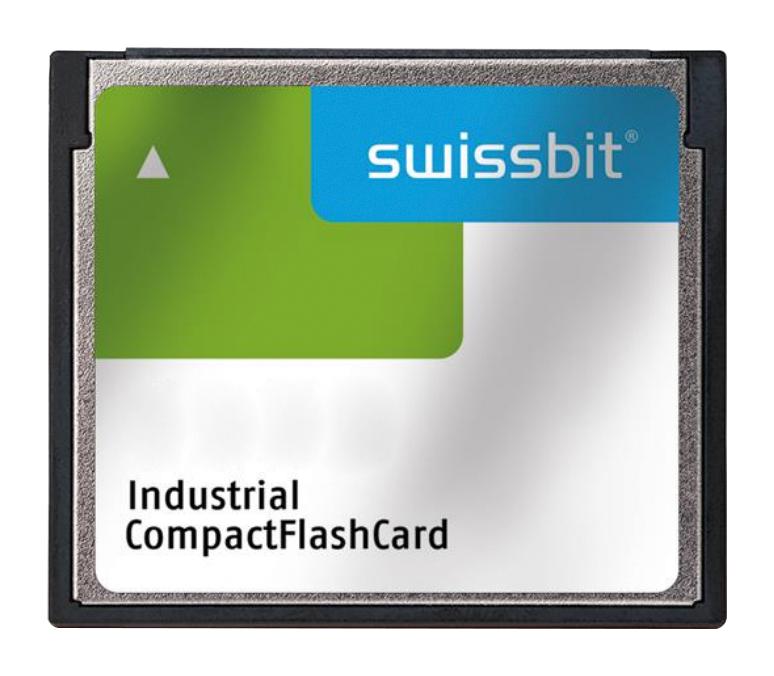

Swissbit Series CF: 64 GByte Industrial CompactFlash Card
View SFCF2048H1AF2TOIDS523STDDatasheet [pdf]
Authorized Distributors
Source:Newark
Part No:SFCF2048H1AF2TO-I-DS-523-STD
Stock:9
Inv Date:06-15-2026
Price: Unit price: $162.8
Buy/RFQ:
Source:DigiKey
Part No:SFCF2048H1AF2TO-I-DS-523-STD
Stock:70
Inv Date:06-15-2026
Price: Unit price: $158.65
Buy/RFQ:
Source:Mouser Electronics
Part No:SFCF2048H1AF2TO-I-DS-523-STD
Stock:148
Inv Date:06-16-2026
Price: Unit price: $191.82
Buy/RFQ:

SWISSBIT SFCF2048H1AF2TOIDS523STD Industrial CompactFlash Card Specifications:

  • Capacity: 64 GBytes
  • Form Factor: CompactFlash Type I (36.4 mm x 42.8 mm x 3.3 mm)
  • Interface Modes: PC Card ATA 1/0, PC Card ATA Memory, True IDE up to UDMA6
  • Sequential Read Speed: up to 64.5 MB/s
  • Sequential Write Speed: up to 42.8 MB/s
  • Random Read IOPS: up to 2,880
  • Random Write IOPS: up to 1,330
  • Operating Temperature Range: -40°C to 85°C
  • Storage Temperature Range: -50°C to 100°C
  • Power Supply: 3.3V ±10%, 5V ±10%
  • Power Consumption: Active Read 20-100 mA, Write 100-120 mA, Idle 4.5-4.5 mA
  • MTBF: >3,000,000 hours
  • Data Retention: 10 years at start of life, 1 year at end of life
  • Supported Standards: CompactFlash Specification 5.0, Complies with CE, RoHS, WEEE, FCC, UL
  • Mechanical Dimensions: Length 36.4mm, Width 42.8mm, Thickness 3.3mm, Weight 10g
  • Features: Wear leveling, Bad block management, ECC BCH, High reliability, Firmware upgradeability
  • Drive Geometry: 125,313,024 sectors, 64,160,268,288 bytes
  • Certification: CE, FCC, UL, RoHS, WEEE

Buy the Swissbit Series CF: 64 GByte Industrial CompactFlash Card

Upgrade your industrial storage solutions with Swissbit’s 64 GByte CompactFlash Card. Designed for harsh environments, it offers high endurance, fast UDMA6 transfer speeds, and temperature operation from -40°C to 85°C. Ideal for data logging, embedded systems, and reliable boot devices, this card ensures durable, long-term data retention and efficient performance. Purchase online today and leverage Swissbit’s trusted quality for your critical industrial storage needs, with easy firmware updates and proven reliability.

Buy Swissbit 64 GByte CompactFlash Card now and experience unmatched reliability and high-speed data transfer for industrial applications.

Frequently Asked Questions

Where can I buy SWISSBIT SFCF2048H1AF2TOIDS523STD?

You can click on the BUY or RFQ button to purchase SFCF2048H1AF2TOIDS523STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFCF2048H1AF2TOIDS523STD?

You can download the SFCF2048H1AF2TOIDS523STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFCF2048H1AF2TOIDS523STD?

SWISSBIT
