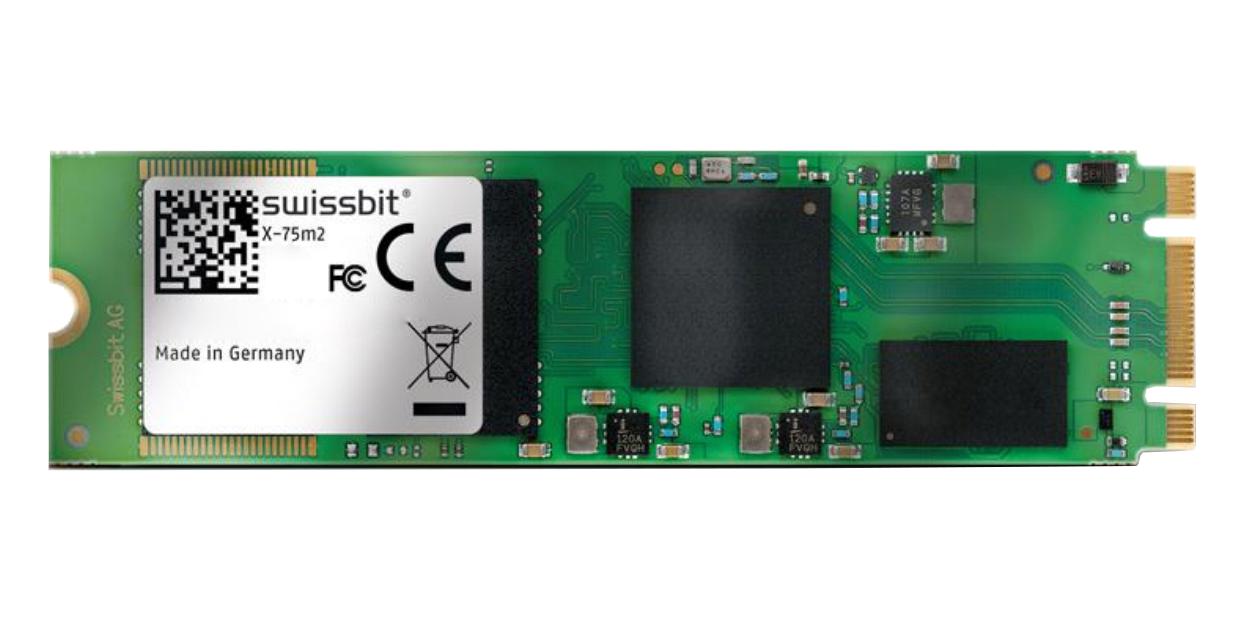

SWISSBIT SFSA060GM2AK1TOI6B536STD Industrial M.2 SATA SSD

The Swissbit X-75m2 series SSD is an industrial-grade M.2 SATA solid-state drive compatible with SATA Gen3 (6 Gbit/s). It leverages TLC 3D NAND flash technology, supports AES encryption, TCG OPAL, and E2E data protection. Designed for high performance and reliability, it features dynamic wear leveling, power fail protection, in-field firmware updates, and S.M.A.R.T. monitoring. Available in various capacities up to 1920 GBytes with industrial temperature operation down to -40°C. Suitable for embedded and enterprise storage applications requiring durable, high-speed, non-volatile memory solutions.

Swissbit Series Industrial M.2 SATA SSD: SFSA060GM2AK1TOI6B536STD
View SFSA060GM2AK1TOI6B536STDDatasheet [pdf]
Authorized Distributors
Source:Newark
Part No:SFSA060GM2AK1TO-I-6B-536-STD
Stock:6
Inv Date:06-15-2026
Price: Unit price: $215.44
Buy/RFQ:
Source:Mouser Electronics
Part No:SFSA060GM2AK1TO-I-6B-536-STD
Stock:0
Inv Date:06-16-2026
Price: Unit price: $205.87
Buy/RFQ:

SWISSBIT SFSA060GM2AK1TOI6B536STD Industrial M.2 SATA SSD Specifications:

  • Form Factor: PCIe M.2 (2242, 2280)
  • Capacities: 30 GBytes, 60 GBytes, 120 GBytes, 240 GBytes, 480 GBytes, 960 GBytes, 1920 GBytes
  • Interface: SATA Gen3 (6 Gbit/s), backward compatible with SATA Gen2 and Gen1
  • Sequential Read: Up to 565 MB/s
  • Sequential Write: Up to 495 MB/s
  • Random Read IOPS: Up to 73,600
  • Random Write IOPS: Up to 79,400
  • Operating Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Power Consumption: Max 3.0 W active, idle 4 mW
  • MTBF: > 2,000,000 hours
  • Endurance: Up to 6.5 TBW for 30 GByte capacity
  • Physical Dimensions: 42 mm x 22 mm x 3.58 mm (2242), 80 mm x 22 mm x 3.58 mm (2280)
  • Connector: 75-pin edge, with B and M keys
  • Compliance: RoHS-6, EMC, WEEE, REACh, CE
  • Features: AES256 encryption (on request), TCG OPAL 2.0 (on request), Power fail safety, NCQ, TRIM
  • Reliability: MTBF > 2 million hours, 10-year data retention at 40°C

Buy the Swissbit Series Industrial M.2 SATA SSD: SFSA060GM2AK1TOI6B536STD

Purchase the Swissbit Series Industrial M.2 SATA SSD SFSA060GM2AK1TOI6B536STD online today and experience fast, durable, and secure non-volatile storage capabilities essential for embedded and enterprise applications. With capacities up to 1920 GBytes, support for AES encryption, TCG OPAL standards, and comprehensive S.M.A.R.T. monitoring, this SSD provides optimal performance and longevity. Compatible with SATA Gen3 interfaces, it offers reliable operation across a temperature range of -40°C to 85°C, ensuring your critical data remains protected and accessible in demanding environments.

Order your Swissbit Series Industrial M.2 SATA SSD SFSA060GM2AK1TOI6B536STD today and ensure high-speed, reliable storage for your embedded systems.

Frequently Asked Questions

Where can I buy SWISSBIT SFSA060GM2AK1TOI6B536STD?

You can click on the BUY or RFQ button to purchase SFSA060GM2AK1TOI6B536STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFSA060GM2AK1TOI6B536STD?

You can download the SFSA060GM2AK1TOI6B536STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFSA060GM2AK1TOI6B536STD?

SWISSBIT
