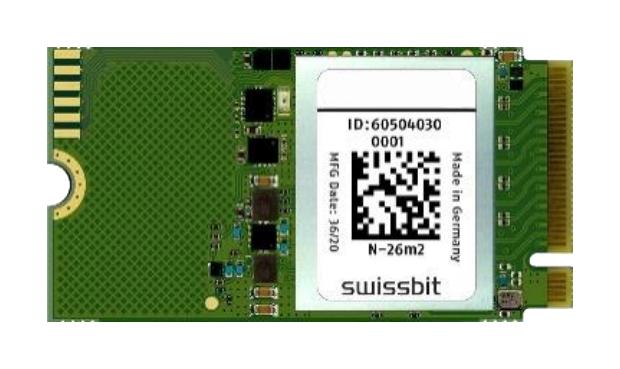

SWISSBIT SFPC010GM1EC1TOI5E11PSTD Industrial M.2 NVMe SSD

The Swissbit N-26m2 SSD is a high-performance, industrial-grade M.2 NVMe drive supporting PCIe 3.1, with capacities from 5GB to 160GB. Built with 3D TLC NAND and a dual-core controller, it delivers sequential read speeds up to 1,773 MB/s and writes up to 827 MB/s. The SSD features extensive data protection, including AES256 encryption, end-to-end data integrity, and SMART monitoring. Its robust design ensures operation from -40°C to 85°C, making it ideal for embedded and industrial applications requiring reliable, high-speed storage in compact form factors.

Swissbit SFPC010GM1EC1TO – Reliable NVMe SSD for Industrial Applications
View SFPC010GM1EC1TOI5E11PSTDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFPC010GM1EC1TO-I-5E-11P-STD
Stock:15
Inv Date:06-16-2026
Price: Unit price: $368.75
Buy/RFQ:

SWISSBIT SFPC010GM1EC1TOI5E11PSTD Industrial M.2 NVMe SSD Specifications:

  • Form Factor: M.2 2230/2242/2280, 30/42/80 mm x 22 mm x 2.63 mm
  • Capacities: 5 GB, 10 GB, 20 GB, 40 GB, 80 GB, 160 GB
  • Interface: PCIe Gen3 x2, 4 lanes (supports x1, x2, x4 modes)
  • Protocol: NVMe 1.3
  • Sequential Read: up to 1,773 MB/s
  • Sequential Write: up to 827 MB/s
  • Random Read (4K): up to 140,000 IOPS
  • Random Write (4K): up to 131,000 IOPS
  • Operating Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Supply Voltage: 3.3V, 1.8V, 0.9V
  • Power States: PS0-PS3, PSY; supports thermal throttling
  • MTBF: over 2,000,000 hours
  • Data Retention: 10 years at 40°C, 1 year at end of life
  • Mechanical Dimensions: Length 30/42/80 mm, Width 22 mm, Max thickness 2.63 mm
  • Certification: RoHS, REACH, WEEE, CE, FCC

Buy the Swissbit SFPC010GM1EC1TO – Reliable NVMe SSD for Industrial Applications

Upgrade your industrial embedded systems with the Swissbit Series SFPC010GM1EC1TO M.2 NVMe SSD. Offering capacities from 5GB to 160GB, it ensures high-speed data transfer with up to 1,773 MB/s read and 827 MB/s write speeds, ideal for rugged environments from -40°C to 85°C. Its advanced ECC, AES encryption, and end-to-end data protection guarantee data integrity and security. Easy to install, compact, and reliable, it's perfect for demanding industrial, automation, or embedded applications requiring quick, durable storage solutions.

Order your Swissbit Series SFPC010GM1EC1TO industrial NVMe SSD today and upgrade your embedded systems with dependable high-speed storage.

Frequently Asked Questions

Where can I buy SWISSBIT SFPC010GM1EC1TOI5E11PSTD?

You can click on the BUY or RFQ button to purchase SFPC010GM1EC1TOI5E11PSTD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFPC010GM1EC1TOI5E11PSTD?

You can download the SFPC010GM1EC1TOI5E11PSTD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFPC010GM1EC1TOI5E11PSTD?

SWISSBIT
