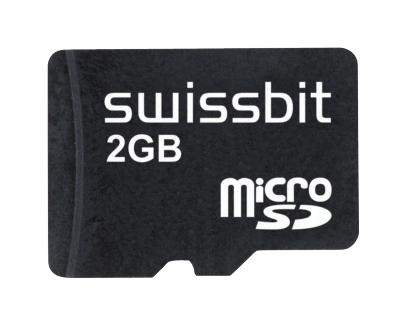

SWISSBIT SFSD2048N1BM1MTIME2A1STD Industrial Micro SD Card
The Swissbit suissbit S-450u Series is an industrial micro SD/SDHC memory card designed for high durability and reliability in demanding environments. Fully compliant with SD Memory Card specification 3.0 and Micro SD specification addendum 4.00, it supports ultra high speed and high speed modes, delivering sequential data rates up to 24MB/s and burst speeds of 104MB/s. Built with SLC flash memory, it features wear leveling, write endurance, power-off reliability, and ECC technology for enhanced data integrity. Rated for industrial temperature ranges from -25°C to 85°C, it is ideal for navigation, medical, infotainment, and other high-reliability applications, with up to 20,000 insertions resilience.
SWISSBIT SFSD2048N1BM1MTIME2A1STD Industrial Micro SD Card Specifications:
- Form Factor: Micro SDHC, 15.0mm x 1.0mm x 0.7mm
- Capacity Range: 512MB to 8GBYTE
- Compliance: SD Memory Card specification 3.0, Addendum 4.00
- Speed Class: SD 1 (UHS-I), Class 10, high speed mode up to 50MHz, UHS-I DDR up to 50MHz and SDR up to 208MHz
- Sequential Data Rate: Up to 24MB/s
- Power Supply: 2.7 to 3.6V
- Temperature Range: -25°C to 85°C (extended industrial) and -40°C to 85°C
- Durability: Up to 20,000 insertion/removal cycles
- Technology: SLC flash, wear leveling, write endurance, ECC, power-off reliability
- Additional features: Data Care Management, Read Disturb Management, Lifetime Monitoring
- Manufacturing: Controlled BOM, PCN process, certified TS 16949 factory, customized firmware options
Buy the Buy Swissbit S-450u Series Micro SDHC Card Part Number SFSD2048N1BM1MTIME2A1STD Online
Purchase the Swissbit S-450u Series industrial micro SDHC card online today for reliable high-speed data transfer and long-lasting durability. Featuring SLC flash technology, wear leveling, and ECC support, it ensures optimal performance in harsh environments with temperatures from -40°C to 85°C. Its robust design supports up to 20,000 insertion cycles, making it perfect for navigation, medical, infotainment, and industrial applications. Order now to benefit from quality construction, extended lifecycle, and the flexibility of customized firmware options for your demanding projects.
Get Swissbit S-450u Series Micro SDHC Card today—designed for industrial durability, long-term data retention, and high-speed performance.
Frequently Asked Questions
Where can I buy SWISSBIT SFSD2048N1BM1MTIME2A1STD?
You can click on the BUY or RFQ button to purchase SFSD2048N1BM1MTIME2A1STD from an authorized SWISSBIT distributor.
How do I troubleshoot issues or seek technical support for part SFSD2048N1BM1MTIME2A1STD?
You can download the SFSD2048N1BM1MTIME2A1STD datasheet or visit the SWISSBIT website for support.
Who is the manufacturer of SFSD2048N1BM1MTIME2A1STD?
SWISSBIT
