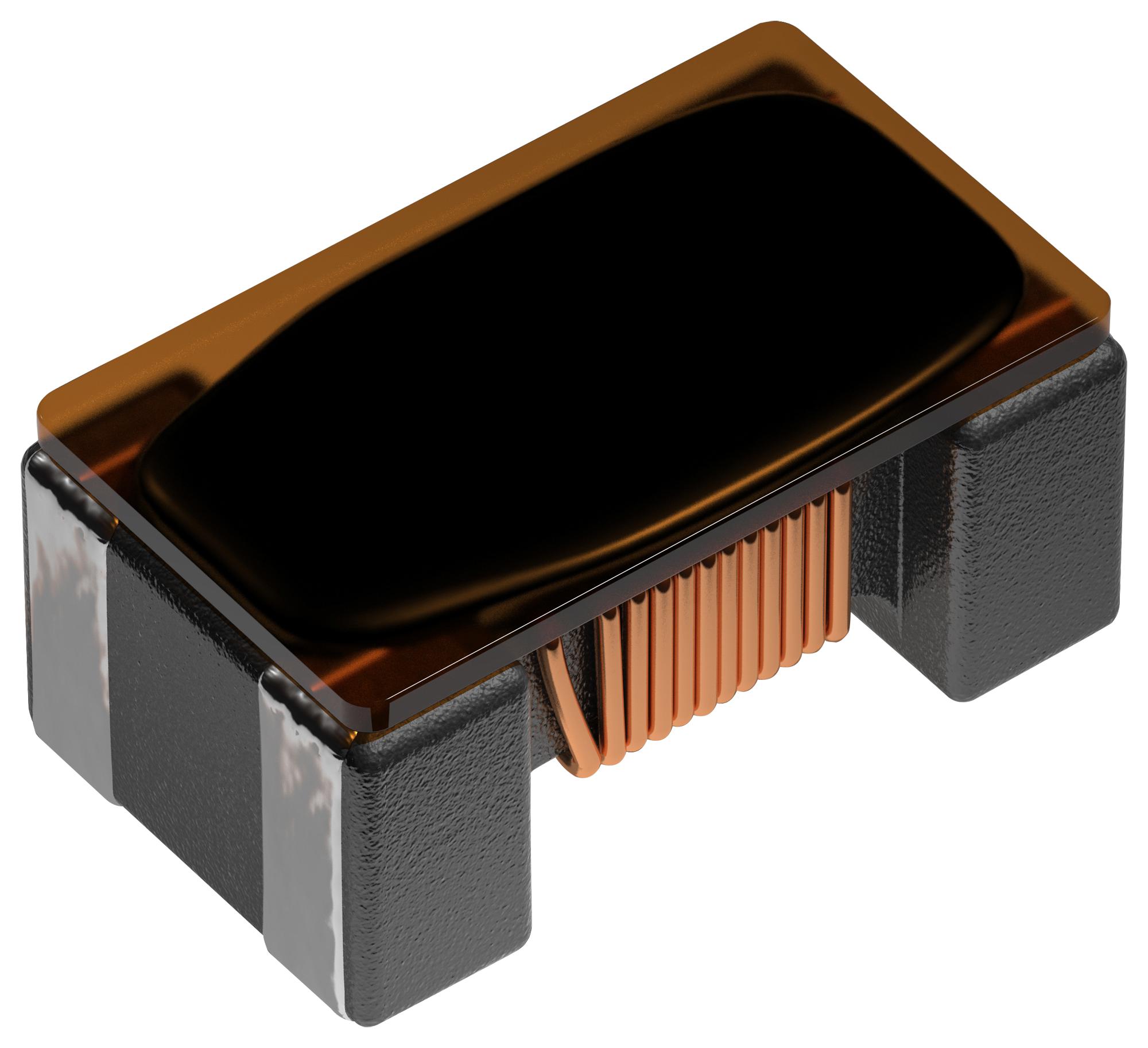

TDK Corporation ACM2012H9002PT03 Automotive EMI Filter
The ACM2012H-T03 series is a highly reliable common mode filter designed for automotive ultra high-speed differential signal lines, including infotainment systems like HDMI and USB interfaces. Operating between -40°C and +105°C, it effectively suppresses common mode EMI waveforms without straining signals, ensuring compliance with AEC-Q200 standards. Its compact dimensions of 2.0x1.2x1.2 mm and high impedance at 100 MHz make it ideal for radiated noise suppression in car multimedia and portable PC interfaces. The module offers excellent insulation resistance and impedance characteristics, supporting robust automotive and industrial applications.
TDK Corporation ACM2012H9002PT03 Automotive EMI Filter Specifications:
- Dimensions: 2.0x1.2x1.2 mm
- Operating Temperature Range: -40°C to +105°C
- Common Mode Impedance: 65Ω to 90Ω at 100 MHz
- Rated Current: 300mA
- Rated Voltage: 50V
- Insulation Resistance: ≥10 MΩ
- Frequency Range: Up to 10 GHz
- Impurity: Copper Alloy
- Compliance: AEC-Q200
- Material: Plastic encapsulation with internal coil
- Storage Temperature: -40°C to +105°C
- Package Style: Reel, 2000 pcs/reel
- Reflow Soldering Profile: 460°C max for 60-120s
- Application: Automotive EMI filtering for multimedia and high-speed data lines
Buy the EMC Components TDK ACM2012H-T03 – Reliable Automotive EMI Filter for Industrial Applications
Purchase the TDK ACM2012H-T03 automotive EMI filter online today—engineered for high-speed differential signals. With a compact size of 2.0x1.2x1.2 mm, it offers excellent EMI suppression and stable performance across -40°C to +105°C. Ideal for car infotainment systems, USB, HDMI, and IEEE1394 interfaces, this filter reliably reduces radiated noise, complies with AEC-Q200 standards, and features high impedance at 100 MHz. Ensure your automotive and industrial applications operate smoothly with this high-quality, durable filtering component.
Get TDK ACM2012H-T03 today—built for automotive high-speed data filtering, ensuring EMI suppression and long-lasting reliability.
Frequently Asked Questions
Where can I buy TDK Corporation ACM2012H9002PT03?
You can click on the BUY or RFQ button to purchase ACM2012H9002PT03 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part ACM2012H9002PT03?
You can download the ACM2012H9002PT03 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of ACM2012H9002PT03?
TDK Corporation
