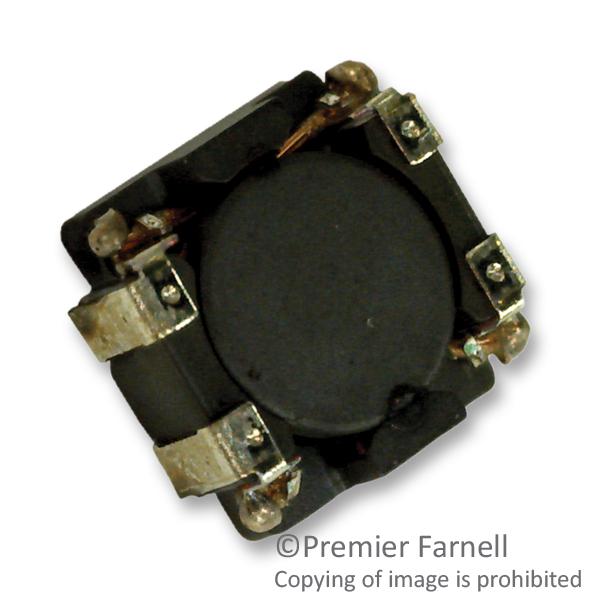

TDK Corporation ACM4520V1422PT00 Common Mode Noise Filter
The common mode filter is designed for power line noise suppression in electronic devices, featuring compact size and high impedance for effective noise reduction. Suitable for various applications including portable equipment and larger electronics such as notebooks and word processors, it offers excellent common mode impedance, insulation resistance, and low DC resistance. The filter is RoHS compliant, halogen-free, and compatible with lead-free soldering processes, making it ideal for high-density, surface-mounted designs to ensure robust electromagnetic interference mitigation.
TDK Corporation ACM4520V1422PT00 Common Mode Noise Filter Specifications:
- Common mode impedance: 4991A Agilent Technologies
- DC resistance: 4338A Agilent Technologies
- Insulation resistance: 43394 Agilent Technologies
- Rated voltage: 180V, 300V, 650V, 1000V depending on model
- Operating temperature: -40°C to +85°C
- Reel diameter: 330mm or 180mm options
- Package quantity: varies from 500 to 2,500 pieces per reel
- Reel weight: from 0.15g to 3.15g depending on model
- Dimensions: between 4.7x4.5x2.0 mm to 15.0x13.0x6.0 mm
- RoHS compliant and halogen-free
- Suitable for surface mounting, compliant with lead-free soldering standards
- Impedance versus frequency specifies good noise suppression at RF frequencies up to 1000 MHz
Buy the EMC Components ACM4520 – Reliable Common Mode Noise Filter for Industrial Applications
Enhance your electronic devices with the high-quality EMC Components common mode noise filter. Designed for power line noise suppression, this filter provides high impedance, low DC resistance, and excellent insulation. Its compact, RoHS-compliant, halogen-free design makes it ideal for surface mounting in portable and large electronic equipment like notebooks and hi-fi systems. With reliable noise suppression across RF frequencies and proven performance, order the ACM4520 series online now and ensure your devices operate noise-free and meet industry standards.
Order your EMC Components Series ACM4520 common mode noise filter today and enhance your electronic device reliability with proven EMI suppression performance.
Frequently Asked Questions
Where can I buy TDK Corporation ACM4520V1422PT00?
You can click on the BUY or RFQ button to purchase ACM4520V1422PT00 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part ACM4520V1422PT00?
You can download the ACM4520V1422PT00 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of ACM4520V1422PT00?
TDK Corporation
