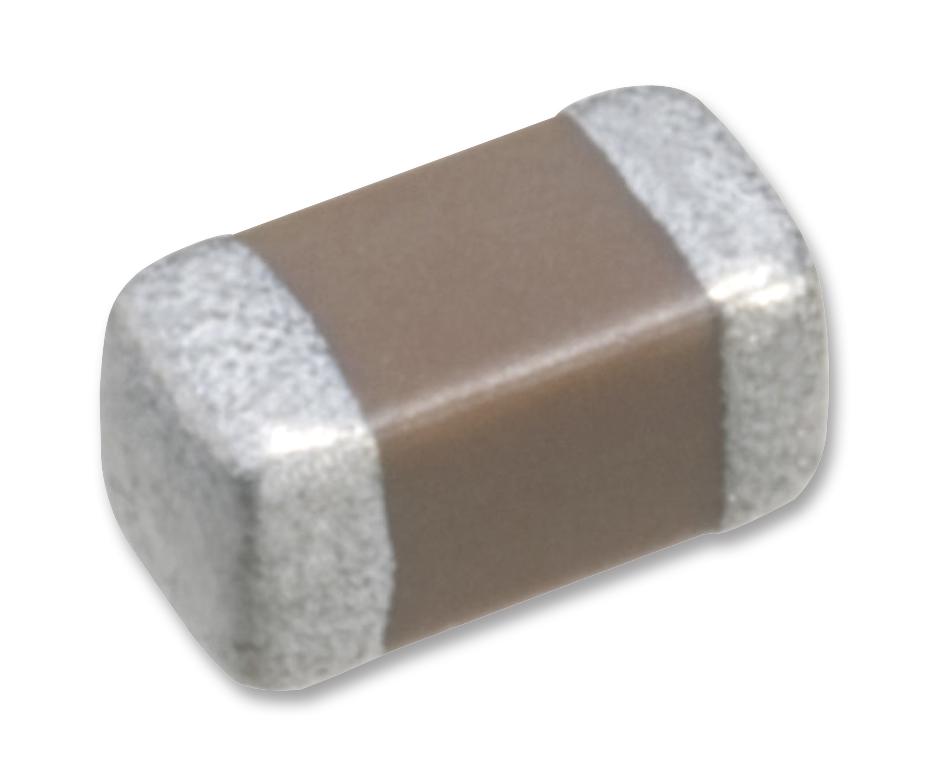

TDK Corporation CGA3E2C0G1H120J080AA Ceramic Capacitor
Multilayer ceramic chip capacitor with high capacitance, precision manufacturing, reliable performance for automotive engine control units, circuit smoothing, and high-frequency applications. Features include low ESL, low self-heating, high ripple resistance and compliance with AEC-Q200 standards. Available in sizes such as 0603, 1608, 3216, and 4532, with capacitance ranges from 0.25pF to 22μF, rated voltages up to 50V, and temperature stability essential for automotive electronics. Ideal for complex circuits requiring stable capacitance performance under temperature variations.
TDK Corporation CGA3E2C0G1H120J080AA Ceramic Capacitor Specifications:
- Series: CGA3
- Type: CC0603
- Size: 1.60 + 0.10 mm x 0.80 + 0.10 mm
- Capacitance: 120 pF
- Tolerance: ±5%
- Rated Voltage: 50V (1H), 25V (1E)
- Temperature Characteristics: COG (-55 to +125°C, 0 + 30 ppm/°C)
- Construction: Monolithic ceramic dielectric layers
- Rating: Suitable for automotive engine control units and high-reliability applications
- Compliance: AEC-Q200
- Features: Low ESL, low self-heating, high ripple resistance, suitable for high frequency circuits
- Shape & Dimensions: 1.60mm length, 0.80mm width, with terminal width of 0.10mm and terminal spacing of 1.00mm
- Rated Voltage Range: 16V to 50V
- Capacitance Range: 0.25pF to 22μF
- Temperature Range: -55°C to +125°C
- Application: Automotive engine control, circuit smoothing, RF circuits
Buy the TDK Series CGA3 Capacitance: 120 pF: CGA3E2C0G1H120J080AA
Purchase your TDK Series CGA3 ceramic capacitor online today and ensure your automotive control systems operate with enhanced reliability and stability. This high-performance component features low ESL, excellent frequency response, and robust construction for demanding environments. With sizes tailored for tight spaces and capacitance options ranging from 0.25pF to 22μF, it supports high-frequency applications, circuit smoothing, and temperature stability up to 125°C. Secure this essential part now and keep your electronics performing at optimal levels with TDK quality.
Order your TDK Series CGA3 120 pF automotive-grade ceramic capacitor today and give your projects the dependable high-frequency performance they deserve.
Frequently Asked Questions
Where can I buy TDK Corporation CGA3E2C0G1H120J080AA?
You can click on the BUY or RFQ button to purchase CGA3E2C0G1H120J080AA from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA3E2C0G1H120J080AA?
You can download the CGA3E2C0G1H120J080AA datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA3E2C0G1H120J080AA?
TDK Corporation
