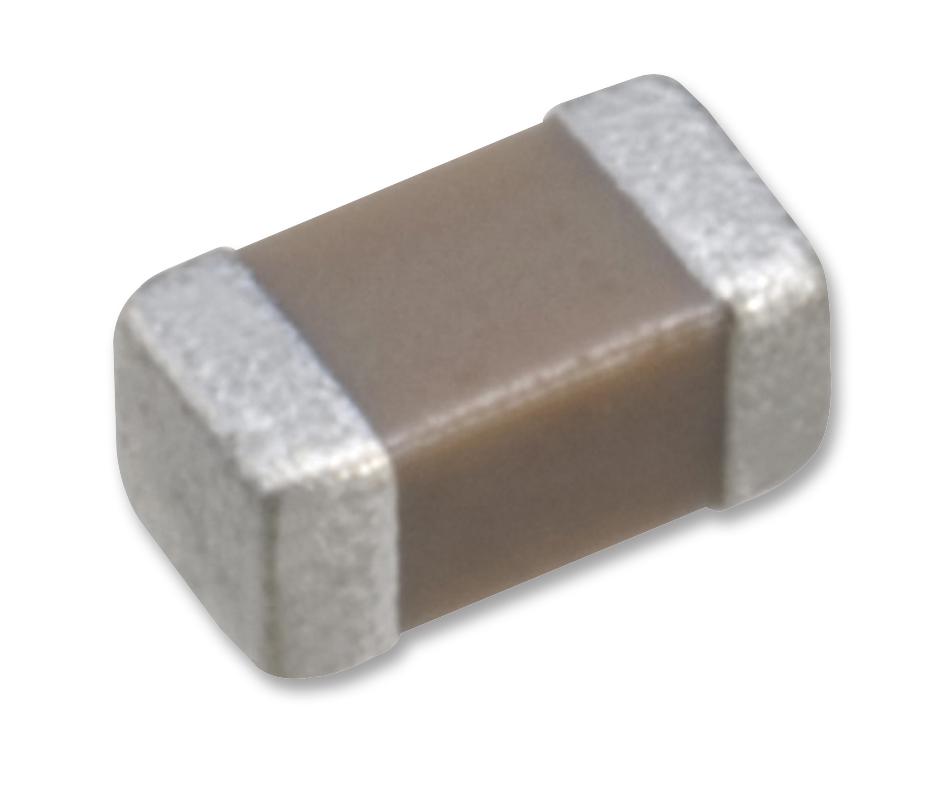

TDK Corporation CGA6L2X7R1H105K160AE Automotive Electronic Capacitor
This automotive-grade capacitor features a soft termination design, ideal for use in automotive electronic systems demanding reliability. With a capacitance of 1uF and a voltage rating of 50V DC, it offers excellent stability across temperatures from -55°C to 125°C. The compact size (3.2mm x 1.6mm x 0.2mm) makes it suitable for limited-space applications. It exhibits low ESR, high insulation resistance, and maintained capacitance with minimal change under DC bias. This series meets industry standards, ensuring durability, consistent performance, and suitability for high-frequency automotive electronic circuits.
TDK Corporation CGA6L2X7R1H105K160AE Automotive Electronic Capacitor Specifications:
- Capacitance: 1uF
- Rated Voltage: 50V DC
- Temperature Range: -55°C to +125°C
- Tolerance: +/-10%
- Dimensions: Length 3.2mm +0.5,-0.4mm, Width 1.6mm +0.3,-0.2mm, Thickness 0.2mm Min.
- Series: CGA6L2X7R1H105K
- Dielectric Type: X7R
- Frequency Characteristics: Capacitance stable across frequencies up to 1 MHz
- ESR: Low, suitable for high-frequency applications
- Insulation Resistance: Minimum 500 MΩ
- Dissipation Factor: Max 3%
- Temperature Coefficient: +/-15%
- Application: Automotive electronic circuits, power supply filtering, high-frequency decoupling
- Standards: Meets industry automotive reliability standards
Buy the Buy TDK Automotive Electronic Capacitor Part Number CGA6L2X7R1H105K Online
Purchase TDK automotive electronic capacitors online for reliable performance in demanding automotive environments. This compact 1uF, 50V DC capacitor features a low ESR, high insulation resistance, and stable capacitance across a wide temperature range from -55°C to 125°C. Its small size of 3.2mm x 1.6mm makes it suitable for space-constrained automotive electronic circuits. Designed to meet industry standards, it ensures durability and consistent high-frequency operation, making it ideal for power supplies, filtering, and high-frequency decoupling in automotive control systems.
Get TDK CGA6L2X7R1H105K today—engineered for high stability, durability, and peak automotive performance.
Frequently Asked Questions
Where can I buy TDK Corporation CGA6L2X7R1H105K160AE?
You can click on the BUY or RFQ button to purchase CGA6L2X7R1H105K160AE from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA6L2X7R1H105K160AE?
You can download the CGA6L2X7R1H105K160AE datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA6L2X7R1H105K160AE?
TDK Corporation
