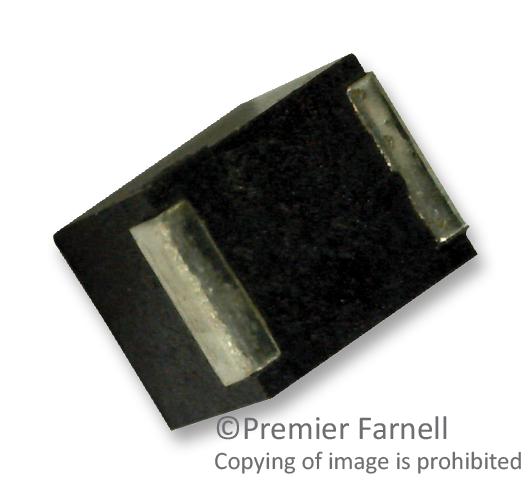

TDK Corporation NLV25T5R6JEF Ferrite Inductor
The inductor series features resin-molded wound ferrite inductors designed for standard circuits, with inductance values from 0.01 to 470uH. These high-quality inductors are compatible with lead-free solders and meet RoHS directive standards, making them ideal for applications like smart meters, AV equipment, communication infrastructure, and vehicle accessories. They exhibit excellent temperature characteristics, broad temperature operation from -40°C to +105°C, and come in packaged quantities of 2000 units for NLV25 and NLV32 types. Suitable for various electronic devices demanding stable inductance and durability.
TDK Corporation NLV25T5R6JEF Ferrite Inductor Specifications:
- Inductance Range: 0.01 to 470uH
- Tolerance: ±5% or ±25%
- Operating Temperature: -40°C to +105°C
- Storage Temperature: -40°C to +105°C
- Package Quantity: 2000 pieces per reel
- Material: Resin-molded wound ferrite
- RoHS Compliant: Yes, RoHS Directive compatible with exemption regulations
- Halogen-Free: Yes, with low Cl and Br content
- Dimensions (NLV25): 2.3 mm x 2.7 mm x 1.5 mm
- Dimensions (NLV32): 2.8 mm x 3.5 mm x 1.5 mm
- Self-Resonant Frequency: Up to 2500 MHz depending on inductance
- DC Resistance: Varies with inductance, typically within 0.13 to 0.75 Ω
- Rated Current: Up to approximately 33 mA for lower inductances
- Packaging: Taping, with reel dimensions in mm as per specifications
- Application: Filter circuits, communication equipment, automotive electronics, industrial devices
Buy the Buy TDK NLV Series Inductor Part Number NLV25T5R6JEF Online
Purchase TDK NLV series Ferrite Inductors online for reliable performance in filter circuits, communication, and automotive electronics. These RoHS compliant inductors are designed to operate from -40°C to +105°C, ensuring durability and stable inductance for various applications. Available in packaging quantities of 2000 units, they feature excellent temperature characteristics, low DC resistance, and broad frequency range up to 2500 MHz. Whether for smart meters, AV equipment, or industrial devices, buy now to ensure your design meets high standards of quality and safety.
Get TDK NLV25T5R6JEF today—built for durability and stable inductance in electronic circuit designs.
Frequently Asked Questions
Where can I buy TDK Corporation NLV25T5R6JEF?
You can click on the BUY or RFQ button to purchase NLV25T5R6JEF from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part NLV25T5R6JEF?
You can download the NLV25T5R6JEF datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of NLV25T5R6JEF?
TDK Corporation
