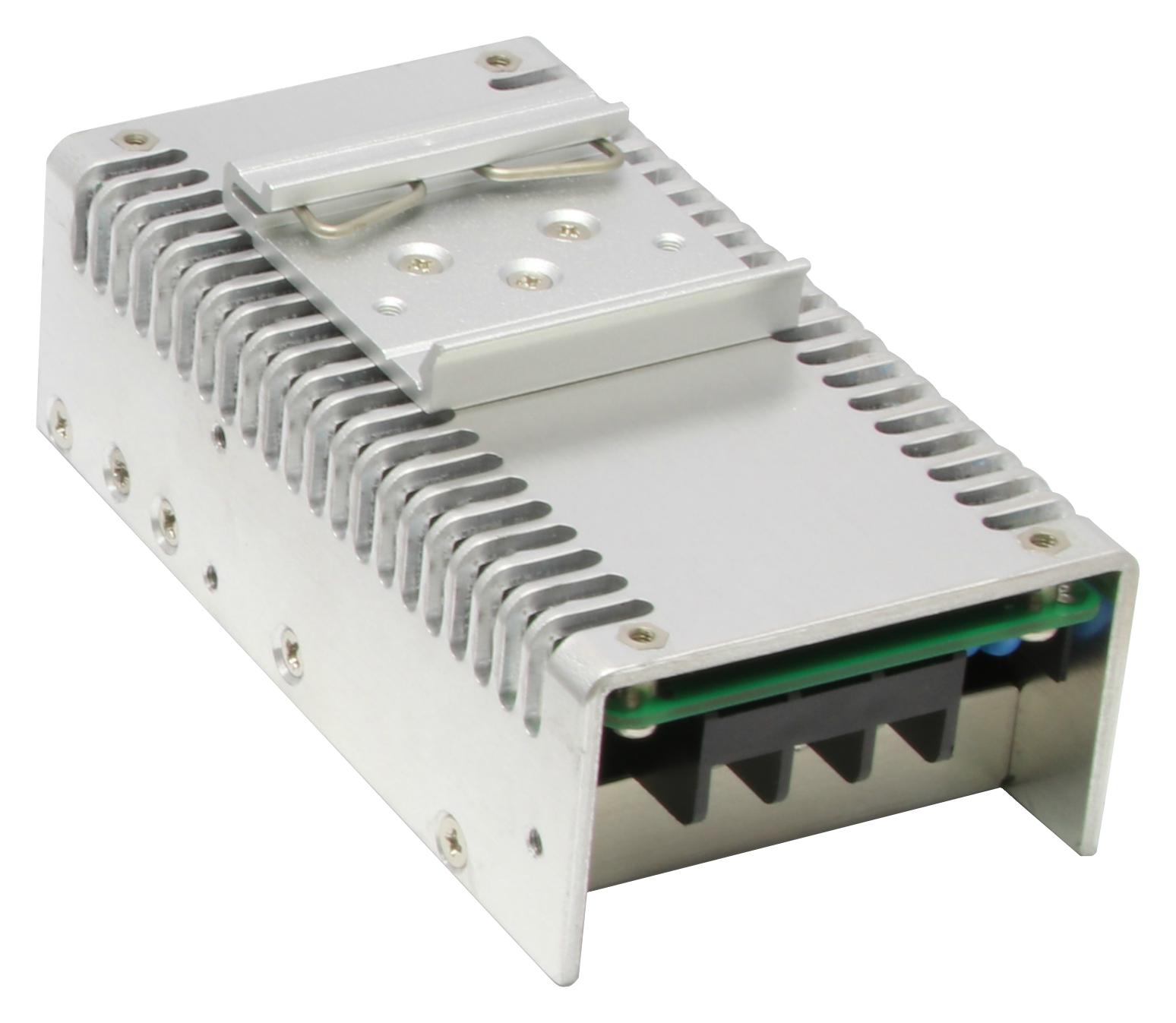

TDK-LAMBDA CSW655D Industrial Power Supply
The TDK-Lambda CSW65-5 power supply is a robust U-channel AC-DC unit designed for industrial applications. It accepts input voltages from 90VAC to 305VAC at 47-63Hz and outputs 5V at up to 8A, providing 40W of power. Features include high efficiency of 87.2%, compliance with UL, CSA, IEC, and EN safety standards, low off-load power consumption under 150mW, and convection cooling. The device offers excellent isolation resistance, withstand voltages of 1.5kVAC input to ground, 3kVAC input to output, and 500VDC output to ground. Compact dimensions (63.5 x 120.7 x 38.1mm) and weight (~290g) make it ideal for various industrial uses, adhering to safety, EMI, and immunity regulations.
TDK-LAMBDA CSW655D Industrial Power Supply Specifications:
- Input Voltage range: 90 - 305VAC (47 - 63Hz)
- Inrush Current: Less than 65A at 230VAC
- Input Current: 2A at 115VAC, 1A at 230VAC
- Hold Up Time: >10ms at 115VAC input
- Off-Load Power Consumption: <150mW
- Output Voltage: 5V
- Output Current: 8A
- Maximum Power: 40W
- Ripple & Noise: 100mV
- Efficiency: 87.2%
- Temperature Coefficient: 0.05%/°C
- Output Voltage Accuracy: 41%
- Overcurrent Protection: 105-160%, auto-recovery
- Overvoltage Protection: Cycles AC to reset
- Operating Temperature: -10°C to +70°C (derating from 50°C)
- Storage Temperature: -20°C to +85°C
- Humidity: 5-95% RH, non-condensing
- Cooling: Convection
- Withstand Voltage: 1.5kVAC (input to ground), 3kVAC (input to output), 500VDC (output to ground)
- Isolation Resistance: >20 MΩ at 25°C, 70% RH
- Dimensions: 63.5mm x 120.7mm x 38.1mm
- Weight: Approximately 290 grams
- Certifications: UL, CSA, IEC, EN 60950-1, UL1310 Class 2, CE Mark
- EMI and Immunity: EN55032-B, FCC Class B, EN55024
Buy the Buy TDK-Lambda CSW65-5 Power Supply Part Number CSW655D Online
Get your TDK-Lambda CSW65-5 power supply today online and ensure your industrial equipment runs smoothly with high efficiency, compact design, and comprehensive safety certifications. This 40W unit features a wide input range, low off-load power consumption, and convection cooling for reliable operation. Perfect for DIN rail mounting, it meets all necessary EMI and safety standards, providing a dependable power source for demanding industrial environments. Invest now for quality and peace of mind in your electrical systems.
Order your TDK-Lambda CSW65-5 industrial power supply today and enjoy reliable, efficient power for your automation and control projects.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CSW655D?
You can click on the BUY or RFQ button to purchase CSW655D from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CSW655D?
You can download the CSW655D datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CSW655D?
TDK-LAMBDA
