TDK-LAMBDA RWS1000B15/ME Datasheet & Stock

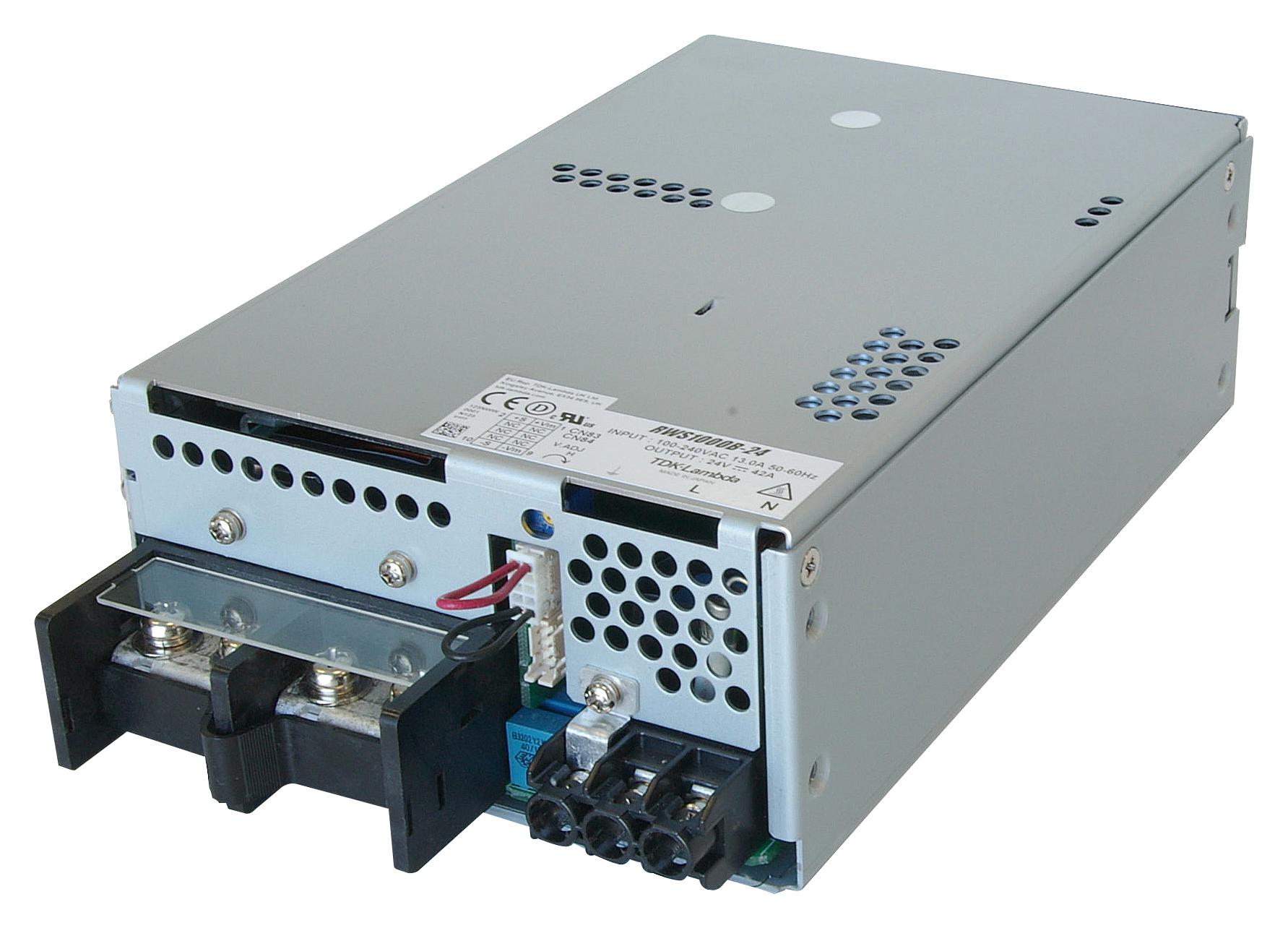

The RWS1000B15/ME from TDK-Lambda is a RWS1000-B series single output medical power supply. Approved by ES60601-1, CSA60601, EN60601-1 safety standards.




85 to 265VAC (47 - 63Hz)/ 120 to 340VDC input voltage range

Output voltage of 15V, maximum output current of 67A

Maximum output power of 1005W, enclosed construction, compact size and cost effective

Ripple and noise of 150mV, 60mV line regulation, 120mV load regulation

Efficiency (typ) is 82/85% at 115/230VAC

Internal fan, air intake from input/output terminals cooling, SEMI F47 line dips

Isolation resistance >100Mohm at 25°C, 70%RH, output to ground 500VDC

EN55011/EN55032-A, FCC class A, VCCI-A conducted and radiated EMI

Withstand voltage of 2/4/1.5KVAC (I/P to GND (1xMoPP))/(I/P to O/P (2xMoPP))/(O/P to GND (1xMoPP))

Dimension is 127mm x 63mm x 198mm (W x H x D), weight of 2000g





Applications


Industrial
