TDK-LAMBDA DTM110PW280C8 Medical Power Supply
The DTM110-C8 Series is a compact 110W external power supply designed for medical and ITE applications, meeting strict safety and efficiency standards. It features a Class II input requiring no earth ground, high efficiency over 89%, and low no-load power consumption below 0.15W. The power supply operates across 90-264VAC, supports multiple output voltages up to 48V, and complies with IEC60601-1-2 Ed4 and IEC 60601-1-11 standards. Suitable for medical, broadcast, and communication equipment, it offers excellent regulation and ripple performance, robust protection, and a compact size of 63x140x33mm.
TDK-LAMBDA DTM110PW280C8 Medical Power Supply Specifications:
- Input Voltage range: 90 - 264VAC (47 - 63Hz)
- Inrush Current: <120A at 230VAC input, 25°C ambient cold start
- Input Current: 2A @90VAC; 1.25A @264VAC
- Touch Current: <100UA @ 264VAC
- Power Factor: >0.9 at 230VAC full load
- Efficiency: >89%, average
- Ripple & Noise: 150mV pk-pk
- Output Voltage Options: 12V, 15V, 19V, 24V, 28V, 36V, 48V
- Maximum Output Power: 110W
- Dimensions: 2.48 x 5.5 x 1.29 inches (63 x 140 x 33 mm)
- Weight: 780g
- Operating Temperature: -20°C to +60°C, derates above 40°C
- Storage Temperature: -20°C to +85°C
- Protection: Overload, overvoltage, short circuit
- Safety Certifications: IEC60601-1, IEC60601-1-11, UL, CSA, CE
- Protection Class: IP41
- Cooling Method: Convection
- Connectivity: IEC 320-C8 inlet; Kycon KPPX-4P output connector

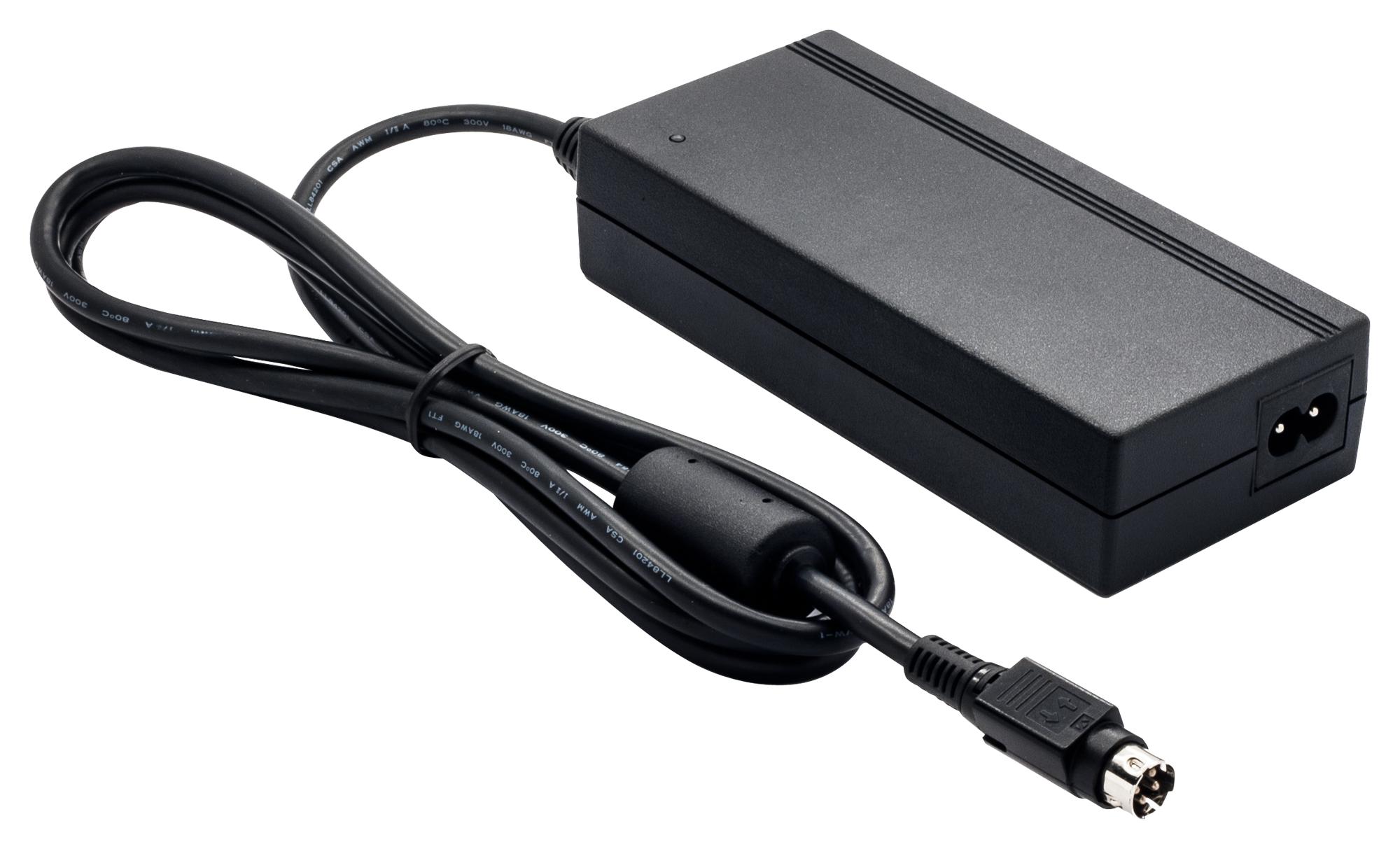

Buy the TDK-Lambda Series DTM110-C8 Power Supply: DTM110PW280C8
Purchase the TDK-Lambda DTM110PW280C8 online today and ensure your medical and industrial equipment operates with high efficiency, safety, and dependability. This compact, 110W power supply exceeds standards with low energy consumption, exceptional regulation, and multiple safety certifications. Its robust design and reliable protection features make it ideal for demanding applications in medical, communication, and broadcast industries. Experience easy installation and long-term performance by choosing a trusted, high-quality power source available now through our convenient online store.
Buy TDK-Lambda DTM110PW280C8 now and experience unmatched reliability and performance in medical-grade power solutions.
Frequently Asked Questions
Where can I buy TDK-LAMBDA DTM110PW280C8?
You can click on the BUY or RFQ button to purchase DTM110PW280C8 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part DTM110PW280C8?
You can download the DTM110PW280C8 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of DTM110PW280C8?
TDK-LAMBDA
