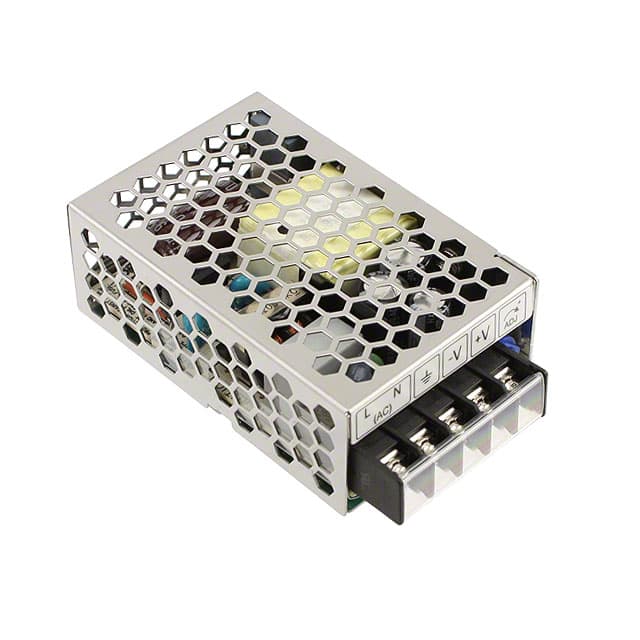

TDK-LAMBDA LS2533 Power Supply Module
The LS25-150 power supply is a reliable and efficient AC/DC module suitable for various industrial and automation applications. It features high efficiency up to 87%, operating temperatures from -25°C to +70°C with low derating above 50°C, and an MTBF of up to 900,000 hours. Compliant with Curve B EMC standards, it withstands 300VAC surges for 5 seconds. Compact and robust, this power supply supports indoor and outdoor enclosures, power management, test & measurement, LED lighting, and factory automation, ensuring stable power with superior cooling and system optimization.
TDK-LAMBDA LS2533 Power Supply Module Specifications:
- AC Input Voltage: 88 - 264VAC, 47 - 63Hz
- DC Input Voltage: 125 - 373VDC
- Output Voltage: 3.3V, 5V, 12V, 15V, 24V, 36V, 48V
- Max Output Current: from 2.85A to 150A depending on model
- Efficiency: Up to 87%
- Operating Temperature: -25°C to +70°C (derates above 50°C)
- MTBF: Up to 900,000 hours
- Surge Withstand: 300VAC for 5 seconds
- Dimensions: Varies (approx. 79x51x28 mm to 198x99x38 mm)
- Protection: Overcurrent, Overvoltage, Short circuit
- Cooling: Convection
- Isolation Voltage: Input to Ground > 100MQ at 25°C & 70%RH
- Safety Certifications: UL60950-1, EN60950-1, IEC60950-1, CE
- EMC Compliance: EN55011/EN55022-B, FCC-B
- Vibration: 10 - 55Hz at 19.6m/s²
- Shock: <196.1 ms² (206)
Buy the TDK Lambda LS25-150 – Reliable Power Supply for Industrial Applications
Purchase the TDK Lambda LS25-150 power supply now for your industrial automation, LED lighting, test & measurement, or factory automation needs. Engineered for reliability and efficiency, it offers up to 87% efficiency, wide-temperature operation from -25°C to +70°C, and a high MTBF of up to 900,000 hours. Its compact design with convection cooling supports indoor and outdoor enclosures, with surge withstand capability up to 300VAC for 5 seconds. Enjoy quick online ordering, ensuring a stable, high-performance power solution for manufacturing, process control, or industrial equipment applications.
Get TDK Lambda LS25-150 power supply today—designed for robust industrial power management and high efficiency operations.
Frequently Asked Questions
Where can I buy TDK-LAMBDA LS2533?
You can click on the BUY or RFQ button to purchase LS2533 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part LS2533?
You can download the LS2533 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of LS2533?
TDK-LAMBDA
