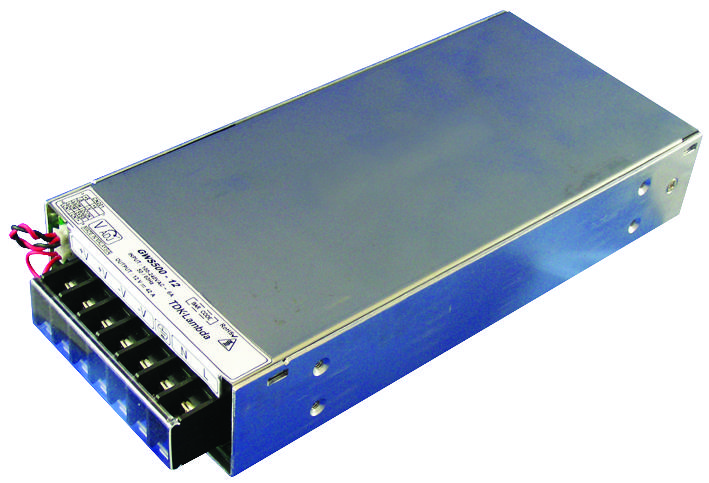

TDK-LAMBDA GWS50012 Industrial Power Supply
The GWS series 500W power supply provides reliable, high-efficiency power with up to 93% efficiency, a compact 1.6-inch height ideal for 1U rack installations, and a wide AC input range of 85-264VAC. It features robust protections including overcurrent, overvoltage, and overtemperature safeguards, a 16-millisecond hold-up time, and remote sensing for precise voltage regulation. Designed for industrial, power management, testing, and communication applications, this unit is UL, CSA, and EN60950-1 certified, ensuring safety and durability in demanding environments.
TDK-LAMBDA GWS50012 Industrial Power Supply Specifications:
- AC Input Voltage: 85 - 264VAC, 4T - 63Hz
- DC Input Voltage: 120 - 373VDC
- Power Output: 500W continuous
- Efficiency: Up to 93%
- Hold Up Time: 16ms at 115/230VAC
- Protection: Overcurrent, overvoltage, overtemperature
- Isolation Resistance: >100MΩ at 25°C, 70% RH, 500VDC
- Operating Temperature: -25°C to +70°C, derate linearly after +50°C
- Size: 8.6 x 4.1 x 1.61 inches (220 x 105 x 41 mm)
- Weight: 850g
- Certifications: UL60950-1, CSA, EN60950-1, CE, FCC-B
- Input to Ground: 1.5kVAC, Input to Output: 3kVAC, Output to Ground: 500VAC
- Vibration (non-operating): 10-55Hz, 19.6m/s²
- Shock: <196.1m/s² (20G)
Buy the Lambda Series GWS Power Supply: GWS500-12
Order the Lambda GWS500-12 power supply online today and benefit from its high efficiency, robust protections, and compact design. Ideal for industrial, power management, testing, and communication systems, this reliable unit offers up to 93% efficiency, a 16-millisecond hold-up time, and comprehensive safety certifications. Its remote sensing capability ensures precise voltage regulation, while the wide input range simplifies integration into various environments. Trust Lambda's quality and durability—purchase online now for swift delivery and optimal power performance.
Get Lambda GWS500-12 today—built for precision and long-lasting durability in industrial environments.
