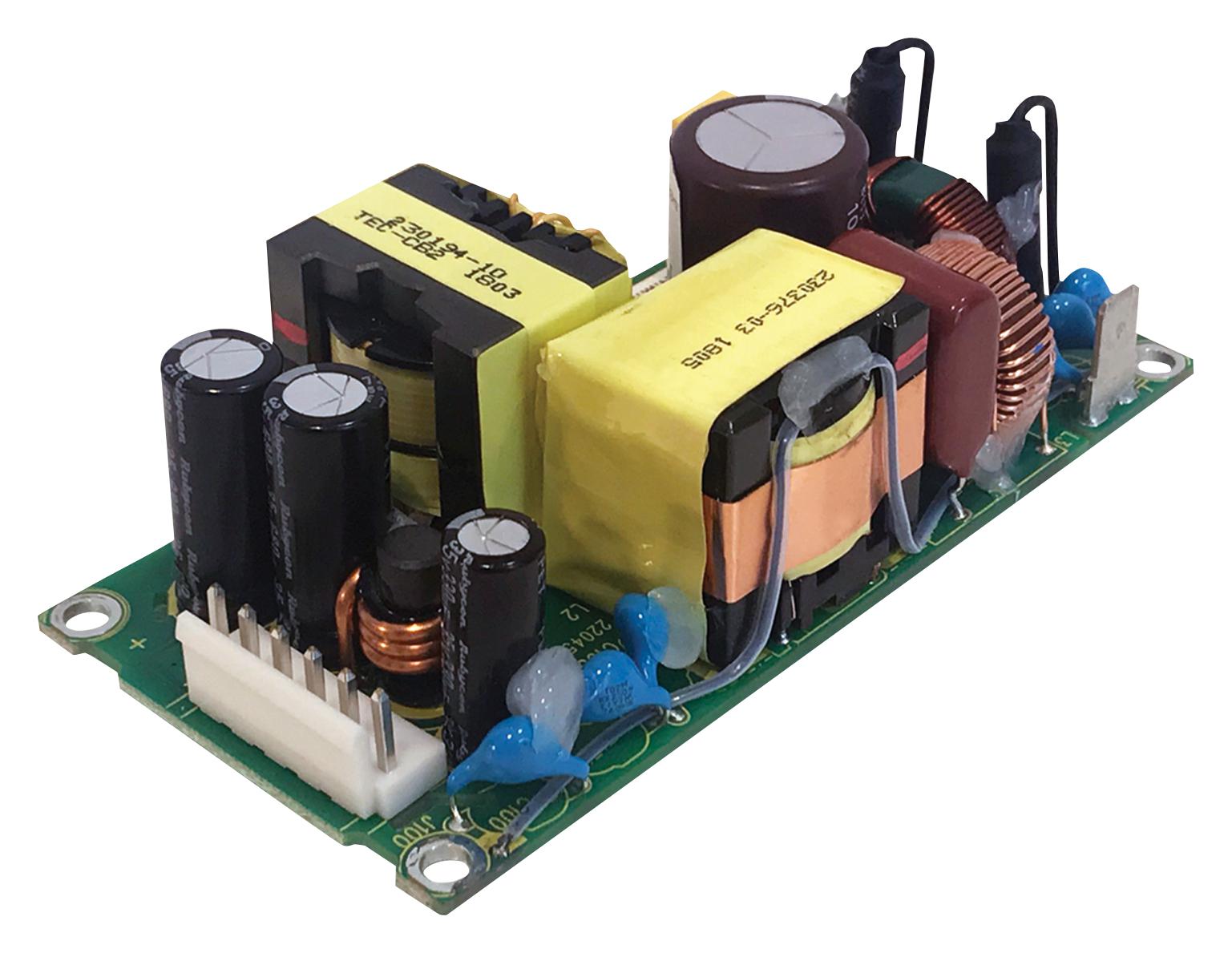

TDK-LAMBDA CUS100ME36 Medical-Grade Power Supply
The CUS100ME Series 100W power supply is designed for medical and industrial applications, offering high efficiency up to 94%, reliable performance with various cooling options, and compliance with safety and EMI standards. It features a wide input voltage range of 85 to 264VAC, excellent regulation, low ripple and noise, and overvoltage protection. Suitable for high ambient temperature environments, it supports convection, conduction, or forced air cooling. This compact, open-frame power supply ensures safe isolation and meets multiple certifications, making it ideal for precision medical and industrial equipment where reliability and safety are critical.
TDK-LAMBDA CUS100ME36 Medical-Grade Power Supply Specifications:
- Input Voltage Range: 85 - 264VAC (47 - 440Hz), derates linearly from 90% load at 85VAC
- Inrush Current: <65A at cold start (230VAC)
- Input Current: 1.4A at 100VAC, 1.4A at 100W load
- Hold Up Time: >24ms
- Efficiency: Up to 94%, active average >87%
- Ripple & Noise: <1% (pk-pk)
- Load Regulation: 1% (0-100% load)
- Line Regulation: 0.5% (85 - 264VAC)
- Overvoltage Protection: Latching, units shut down and cycle reset
- Operating Temperature: -20°C to +85°C, derating above +50°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5-95% RH non-condensing
- Isolation Voltage: Input to Ground 1.5kVAC, Output to Ground 1.5kVAC, Input to Output 4kVAC
- Safety Certifications: IEC/EN/UL60950-1, IEC60601-1 for medical use
- EMI Compliance: EN55011 / EN55032-B
- Cooling: Convection, conduction, or forced air
- Physical Size: 50.8 x 101.6 x 31.5 mm
- Weight: 180g (open frame), 240g (/U), 255g (/A), 220g (/B)
Buy the Buy TDK Lambda CUS100ME Series 36 Part Number CUS100ME36 Online
Secure your equipment's power needs with the TDK Lambda CUS100ME series. Designed for medical and industrial use, it offers high efficiency up to 94%, low ripple, and reliable performance in a compact package. Wide input voltage compatibility ensures seamless operation across regions, while multiple cooling options provide flexibility for high ambient temperatures. Built with safety and EMI standards in mind, it ensures compliance and safety for sensitive applications. Purchase online today for fast delivery and reliable power solutions that keep your systems running smoothly.
Buy TDK Lambda CUS100ME36 now and experience unmatched reliability, high efficiency, and versatile cooling options for medical and industrial equipment.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CUS100ME36?
You can click on the BUY or RFQ button to purchase CUS100ME36 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CUS100ME36?
You can download the CUS100ME36 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CUS100ME36?
TDK-LAMBDA
