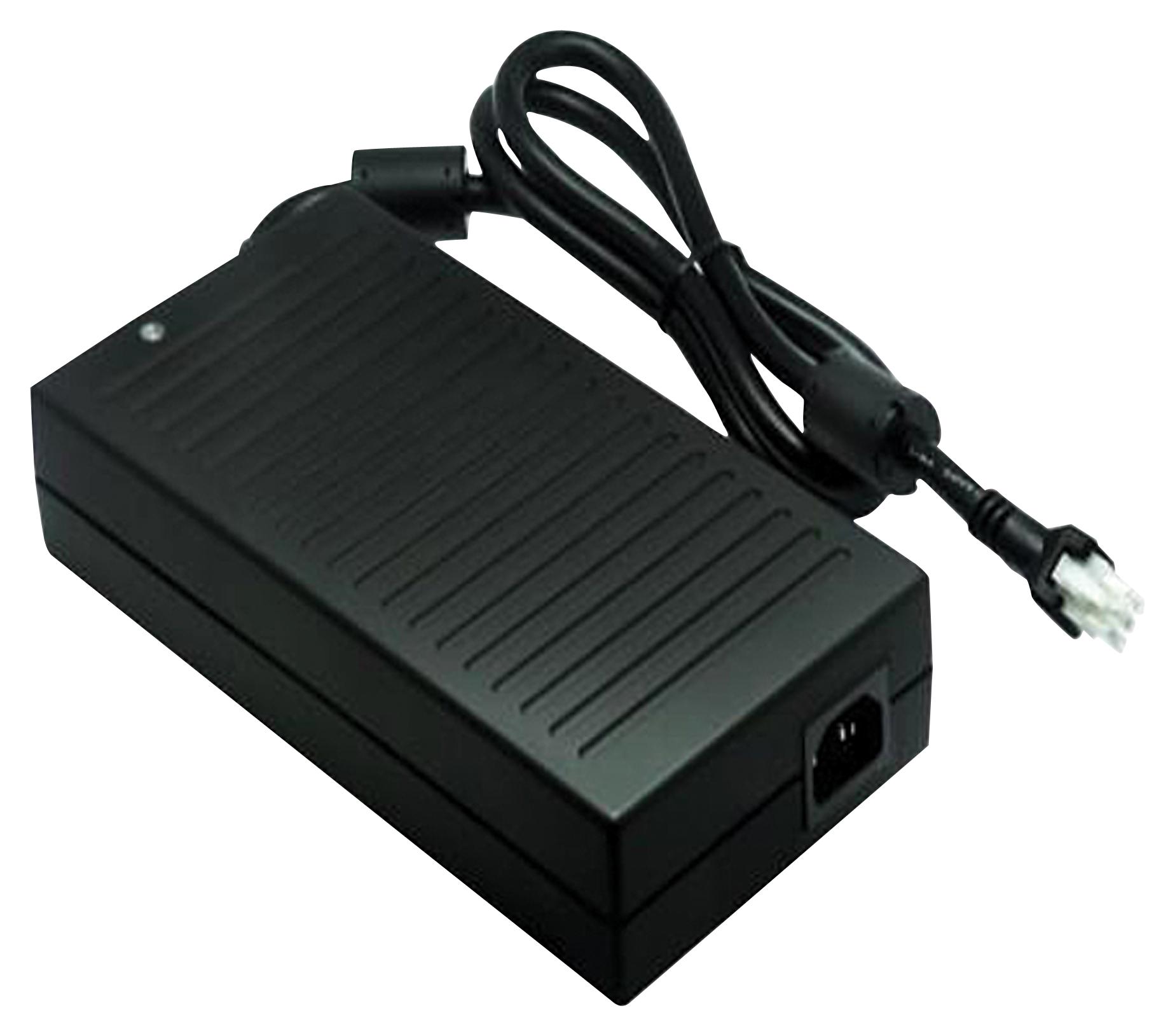

TDK-LAMBDA DTM250PW120D Medical Power Supply
The DTM250-D Series from TDK-Lambda offers 250W external power supplies designed for medical and industrial applications. These supplies meet DoE Level VI and EU Tier 2 efficiency standards, ensuring low power consumption and high reliability. They feature IEC60601-1-2 Ed4 compliance for medical safety, <0.15W off-load power draw, and robust protections including overload, short circuit, and overvoltage. With a wide input voltage range of 90-264VAC, operating temperatures from -20°C to 60°C, and convection cooling, these power supplies provide stable performance in various environments. Compact and lightweight, they come with multiple output options to suit different needs.
TDK-LAMBDA DTM250PW120D Medical Power Supply Specifications:
- Input Voltage range: 90 - 264VAC (47 - 63Hz)
- Inrush Current: <80A at 230VAC input, 25°C ambient cold start
- Input Current: 2.5A @115VAC; 1.3A @230VAC
- Touch Current: <100UA @ 264VAC
- Power Factor: >0.9 at 230VAC full load, meets EN61000-3-2
- Hold Up Time: 10ms at 115VAC input
- Temperature Coefficient: <0.05%/°C
- Total Regulation: 45%
- Ripple & Noise: 12V: 240mV, 19-54V: 300mV (pk-pk)
- Overload & Short Circuit Protection: 105-160% in hiccup mode
- Overvoltage Protection: Cycle input power to reset
- Efficiency: >89% on average
- Operating Temperature: -20°C to +60°C, derates linearly
- Storage Temperature: -20°C to +85°C
- Humidity: 0-95%RH, non-condensing
- Cooling: Convection
- Withstand Voltage: Input to Output: 4kVAC, Input & Ground: 1.5kVAC
- Certifications: IEC/ES/CSA/EN60601-1, IEC/UL/CSA/EN60950-1, CE
- Weight: 1300g
- Size: 90 x 200 x 45mm
- Cable Length: 800mm
- Connector: IEC 320-C14 inlet, Molex Mini Fit 39-28-1063 or equivalent
Buy the TDK-Lambda DTM250-D – Reliable Medical Power Supply for Industrial Applications
Discover the TDK-Lambda DTM250-D Series, a 250W external power supply ideal for medical and industrial equipment. It meets IEC60601-1, DoE Level VI, and EU Tier 2 standards, ensuring energy efficiency and compliance. Its wide input voltage range of 90-264VAC enables global use, while protections against overload, short circuit, and overvoltage enhance safety and reliability. Operating efficiently within -20°C to 60°C, it is lightweight and compact, making installation straightforward. Purchase online today to ensure high-performance power solutions for demanding environments.
Get TDK-Lambda DTM250-D today—built for medical, industrial, and reliable power solutions with high efficiency and safety standards.
Frequently Asked Questions
Where can I buy TDK-LAMBDA DTM250PW120D?
You can click on the BUY or RFQ button to purchase DTM250PW120D from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part DTM250PW120D?
You can download the DTM250PW120D datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of DTM250PW120D?
TDK-LAMBDA
