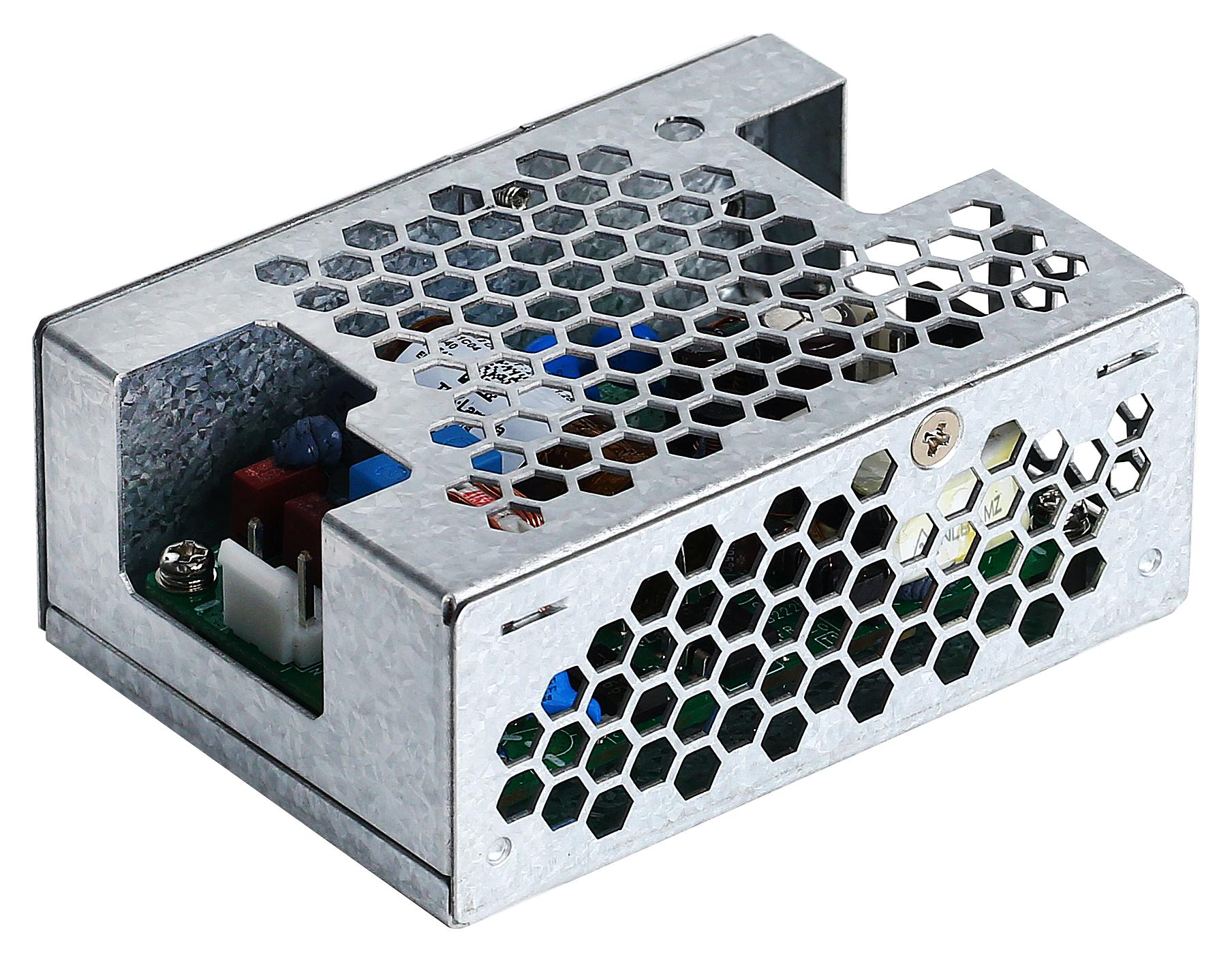

TDK-LAMBDA CUS30M36A power supply
The CUS30M and CUS60M series are compact 2x3-inch AC/DC power supplies designed for medical and industrial applications, providing power outputs from 30W to 60W. Certified for IEC60601-1 3rd edition (medical), IEC60950-1, and IEC60335-1, these units meet EN60601-1-2:2015 immunity standards. They feature class B conducted and radiated EMI, with options for open frame, enclosed, PCB mount, and Molex or JST connector configurations. These reliable, space-saving supplies are suitable for BF-rated equipment and meet stringent safety and EMC requirements, ideal for medical, testing, and broadcast uses.
TDK-LAMBDA CUS30M36A power supply Specifications:
- Input Voltage Range: 85 - 264VAC
- Input Frequency: 47-63Hz
- Efficiency: Varies by model, typical at 25-100% load.
- Output Power: 30W to 60W
- Output Voltage: 5V, 12V, 15V, 18V, 24V, 36V, 48V options
- Output Current: Up to 25A depending on model
- Protection: Overcurrent >105%, Overvoltage >115% of nominal
- Dimensions: 50.8 x 76.2 x 24.2 mm (Open Frame), 50.8 x 76.2 x 26.7 mm (Enclosed)
- Isolation: 2kVAC input to ground, 4kVAC input to output, 1.5kVAC output to ground
- Temperature Range: -20°C to +70°C, derating at higher temps
- Humidity: 10-95% RH (Non-condensing)
- EMI: EN55011-B, EN55032-B, FCC Class B
- Safety: UL, IEC, CSA60601-1, CE Mark
- Standards: IEC61000-4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11; EN60601-1-2
- Warranty: 3 years
Buy the Buy TDK-Lambda CUS30M Series Part Number CUS30M36A Online
Experience the high reliability and efficiency of the TDK-Lambda CUS30M power supply series. These compact, medical-certified units offer 30W to 60W power output options, ensuring safety with IEC60601-1 certification. Designed for medical and industrial use, they feature EMI compliance, multiple mounting options, and robust overcurrent and overvoltage protections. Ideal for end equipment where space-saving, safety, and performance are crucial. Purchase online today to enhance your system’s safety and reliability with a trusted power supply solution from TDK-Lambda.
Buy TDK-Lambda CUS30M Series power supply now and experience unmatched reliability, efficiency, and versatility for medical and industrial applications.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CUS30M36A?
You can click on the BUY or RFQ button to purchase CUS30M36A from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CUS30M36A?
You can download the CUS30M36A datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CUS30M36A?
TDK-LAMBDA
