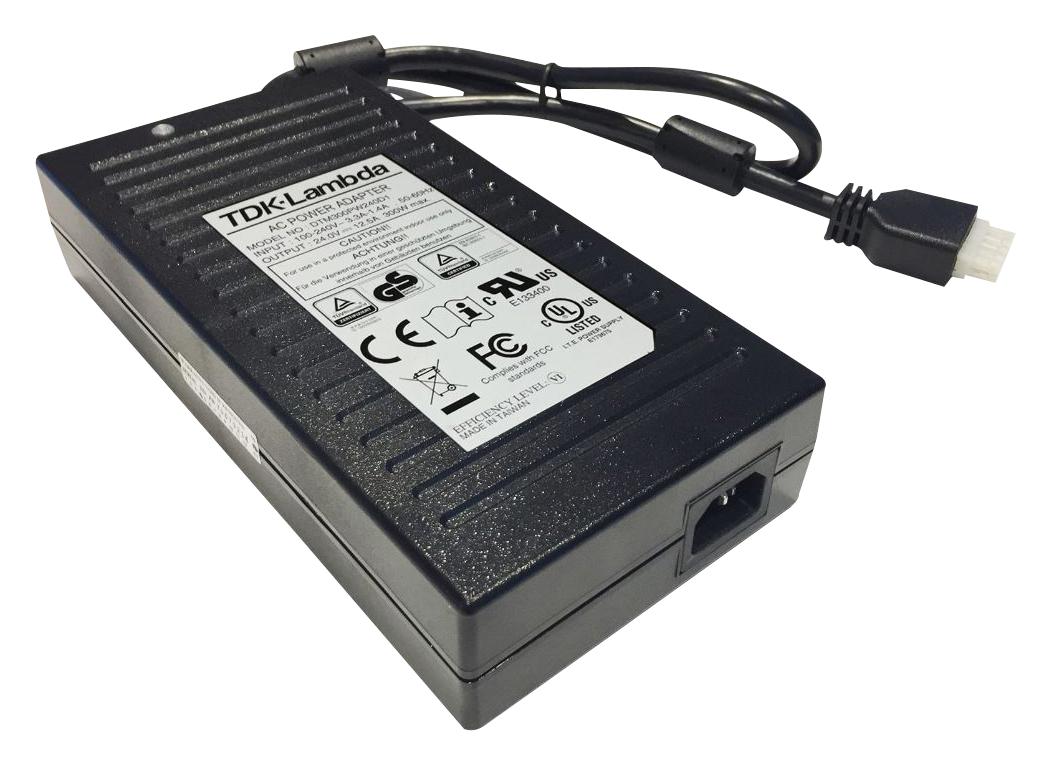

TDK-LAMBDA DTM300PW190D1 Medical Power Supply
The DTM300PW190D1 is a 300W medical-grade external power supply from the TDK Lambda DTM300-D series. Designed for medical and ITE applications, it features high efficiency over 88%, advanced protections including auto-recovery overvoltage, hiccup mode overload protection (105-150%), and short circuit protection. Certified for IEC60601-1, EN60601-2, EMC standards, it operates over 90-264VAC input, providing 19V output at 15.79A. Its robust construction includes 1.5kVAC input-to-ground and 4kVAC input-to-output isolation, supporting a broad operating temperature of -30°C to +60°C. Compact and lightweight, it is ideal for medical and professional equipment requiring reliable power delivery and compliance with global safety standards.
TDK-LAMBDA DTM300PW190D1 Medical Power Supply Specifications:
- Input Voltage Range: 90-264VAC, 47-63Hz
- Inrush Current: <70A at 230VAC cold start
- Maximum Input Current: 3A at 115VAC
- Ripple & Noise: ±300mV
- Efficiency: >88%
- Protection: Auto-recovery overvoltage, hiccup overload (105-150%), short circuit
- Isolation: 1.5kVAC input to ground, 4kVAC input to output (Class I & II)
- Operating Temperature: -30°C to +60°C, derates above 40°C
- Dimensions: 112 x 222 x 45 mm
- Weight: approximately 1570 g
- Safety Certifications: IEC/EN60601-1, IEC/UL/CSA/EN60950-1, CE
- EMC Compliance: EN55011 Class B, EN55024 Class B, FCC Part 15 & 18
- No Load Power Consumption: <0.5W
Buy the TDK Lambda Series DTM300 Medical Power Supply: DTM300PW190D1
Order the TDK Lambda DTM300PW190D1 today for medical and professional equipment. This 300W power supply features high efficiency over 88%, extensive safety certifications, and advanced protections including auto-recovery overvoltage and hiccup mode overload. Its compact size and lightweight design make it ideal for space-critical medical devices, ensuring safety and reliability. Easily integrate this power supply into your system with its broad input voltage range, excellent insulation, and compliance with international safety standards. Buy online now for fast delivery and peace of mind in your medical applications.
Get TDK Lambda DTM300PW190D1 today—built for medical-grade reliability with high efficiency and safety compliance.
Frequently Asked Questions
Where can I buy TDK-LAMBDA DTM300PW190D1?
You can click on the BUY or RFQ button to purchase DTM300PW190D1 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part DTM300PW190D1?
You can download the DTM300PW190D1 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of DTM300PW190D1?
TDK-LAMBDA
