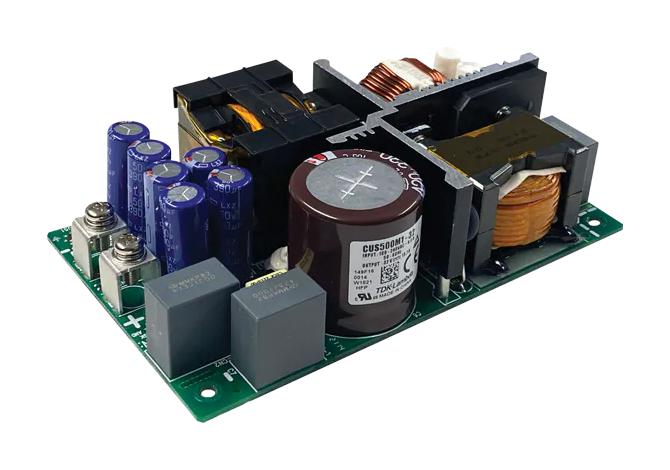

TDK-LAMBDA CUS500M136 Power Supply
The CUS500M1 power supply features a 3x5-inch footprint capable of delivering 500W with forced air cooling or 300W convection cooled. Certified for medical and industrial safety standards, it supports Class I and Class II applications without ground wires, ensuring high safety and reliability. The unit offers Class B EMI compliance, is suitable for medical and B, BF type medical equipment, and comes in both open frame and enclosed with internal fan versions. Its compact design makes it ideal for space-constrained applications in medical, industrial, and test environments, delivering efficient performance and dependable operation.
TDK-LAMBDA CUS500M136 Power Supply Specifications:
- Input Voltage range Vac 85-265 (derating below 115Vac)
- Input Frequency Hz 47-63
- Input Current (110/230Vac) A < 5.0/2.5
- Inrush Current at 230Vac (typ) A < 50
- Leakage Current uA < 200 at 265Vac 60Hz
- Power Factor 0.99/0.94 at 115/230Vac
- Efficiency Up to 96%
- Hold Up Time ms 22 at 300W, 14 at 500W
- Output Voltage 12, 19, 24 V (varies by model)
- Line Regulation % 0.5
- Load Regulation % 1
- Ripple & Noise mV 12V: 240, 19V: 360, 24V: 480
- Overcurrent Protection >105% auto recovery
- Overvoltage and Overtemperature Protections: Latching
- Isolation Voltage: Input to Ground 2000V, Output to Ground 1500V
- Operating Temperature °C -20 to +70, start-up at -25°C
- Storage Temperature °C -40 to +85
- Operating Humidity %RH 10-95
- Cooling: Convection or Forced Air (2.7m/s)
- Vibration (non-operating): 10-55Hz, Max 19.6m/s²
- Shock: <196m/s²
- Size (LxWxH): 127 x 76.2 x 37 mm (open frame), 157 x 85 x 42.5 mm (enclosed)
Buy the Buy TDK-Lambda CUS500M1 Part Number CUS500M136 Online
Purchase the TDK-Lambda CUS500M1 power supply online today. With certified medical and industrial safety standards, this compact, high-efficiency unit offers 500W power with forced air cooling and 300W convection, perfect for space-constrained, demanding environments. Its robust design includes protection features like overcurrent, overvoltage, and overtemperature protections, ensuring dependable operation. Suitable for Class I and Class II applications, it supports medical-grade requirements, EMI compliance, and versatile installation options. Secure your supply for medical, industrial, or test equipment today for reliable, space-efficient power solutions.
Order your TDK-Lambda Series CUS500M1 power supply today and ensure reliable performance for medical and industrial applications with efficient, space-saving design.
