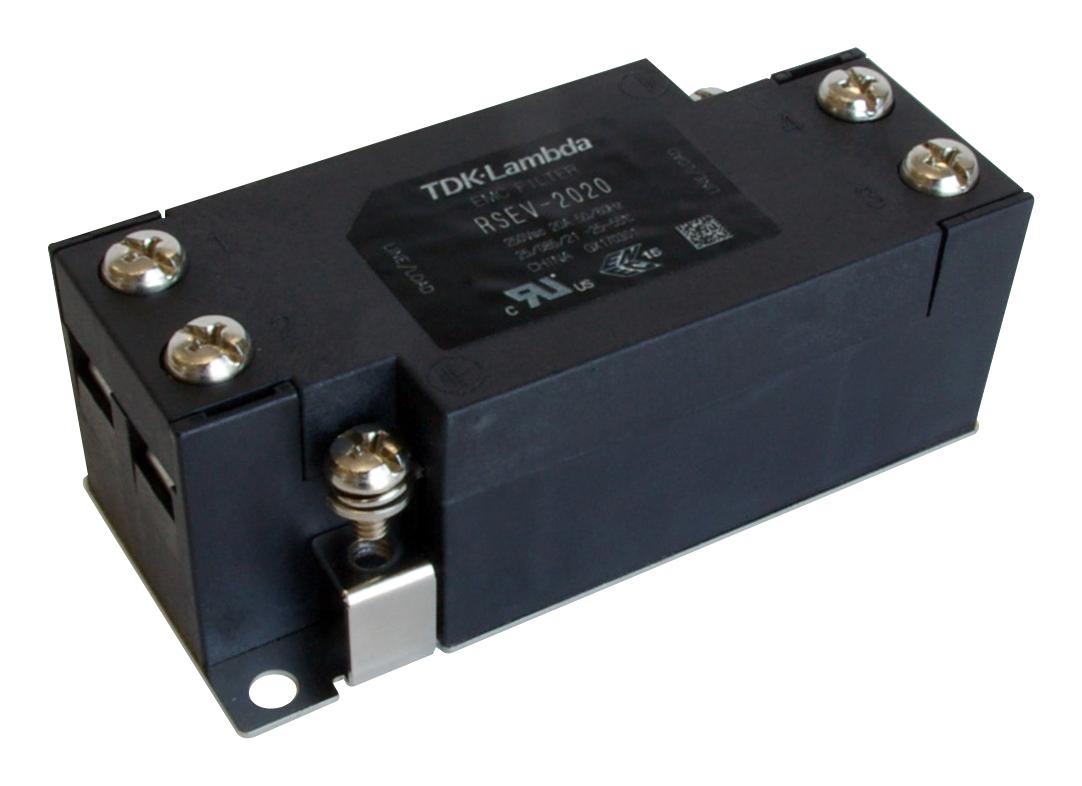

TDK-LAMBDA RSEV2020 EMC Filter
The RSEV Series EMC filters from TDK-Lambda are designed for industrial applications, offering ratings from 6A to 30A at 250VAC. Compact and easy to install, these filters feature integrated terminal blocks with captive screws, making wiring straightforward. They conform to UL, CSA, and EN safety standards, ensuring reliable protection against electromagnetic interference in various machinery and control systems. Suitable for DIN rail mounting with compatible kits, the RSEV filters provide excellent attenuation characteristics for both differential and common mode noise, ensuring smooth, interference-free operation of industrial electronic equipment.
TDK-LAMBDA RSEV2020 EMC Filter Specifications:
- Rated Voltage: 250V AC/DC
- Rated Current: 6A, 10A, 16A, 20A, 30A
- Withstand Voltage: Terminals to Case 2500VAC (1 Minute)
- Isolation Resistance: 100MQ minimum (500VDC, 1 Minute)
- Leakage Current: 1mA (250VAC, 60Hz)
- DC Resistance: 110mΩ, 40mΩ, 20mΩ, 10mΩ, 6mΩ depending on current rating
- Operating Temperature: -25°C to +85°C (derate above 55°C)
- Storage Temperature: -25°C to +85°C
- Size: 39 x 85 x 30mm (WxLxH)
- Weight: 150g
- Certifications: UL1283, CSA C22.2 No.8, EN60939-3
- Mounting: DIN Rail compatible
- Warranty: 5 Years
Buy the TDK-Lambda RSEV2020 – Reliable EMI Filter for Industrial Applications
Enhance your industrial control systems with the TDK-Lambda RSEV EMC filters, rated from 6A to 30A at 250VAC. Featuring durable construction and UL, CSA, EN certifications, these compact filters easily mount on DIN rails using the included kit. They offer excellent attenuation of electromagnetic interference, protecting sensitive electronic equipment from noise issues. With reliable specifications, easy installation, and a 5-year warranty, they are an essential component for maintaining optimal performance and compliance in demanding industrial environments. Buy online today for trusted interference suppression.
Order your TDK-Lambda RSEV Series EMC filter today and ensure robust noise suppression for your industrial electronic systems.
Frequently Asked Questions
Where can I buy TDK-LAMBDA RSEV2020?
You can click on the BUY or RFQ button to purchase RSEV2020 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part RSEV2020?
You can download the RSEV2020 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of RSEV2020?
TDK-LAMBDA
