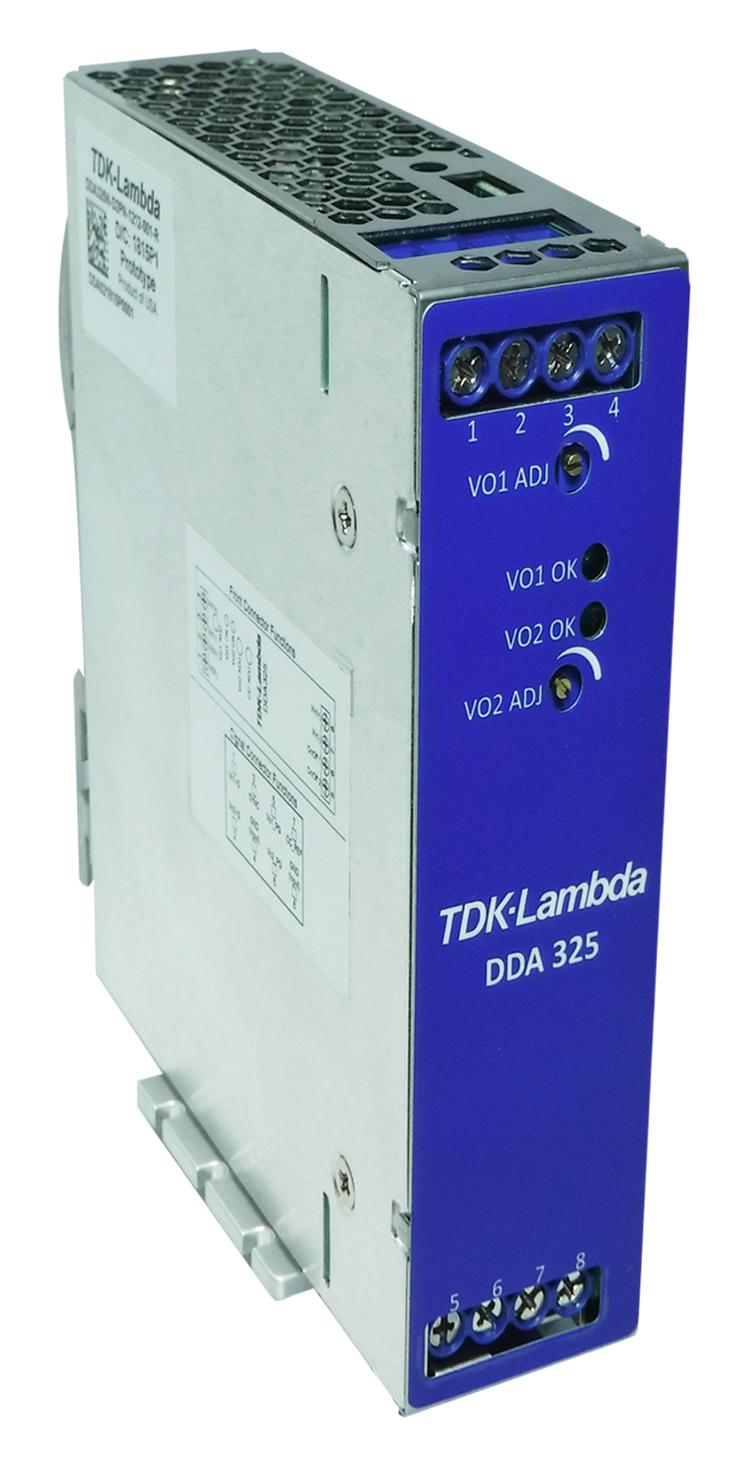

TDK-LAMBDA DDA325ND2PN1212001 Industrial Power Converter
The DDA Series DIN rail mount, non-isolated step-down converters provide high efficiency, compact design, and wide input and output adjustment ranges, making them suitable for industrial power applications. With power levels of 250W, 325W, and 500W, they feature up to 95% efficiency, low thermal footprint, and easy convection cooling. Designed for reliable long-term operation, these converters support a wide input voltage range of 9 to 53V, with adjustable output voltages from 3.3V to 24V. They are ideal for creating high current output voltages from single or dual outputs in industrial automation, OEM, and systems integration.
TDK-LAMBDA DDA325ND2PN1212001 Industrial Power Converter Specifications:
- Input Voltage Range: 9 to 53V with turn-on at 10V or greater
- Maximum Input Current: 20A to 40A depending on model
- Efficiency: Up to 95%, typical 92-95%
- Output Voltage Range: 3.3V to 24V adjustable
- Output Power: 250W, 325W, 500W depending on model
- Switching Frequency: 400 kHz
- Line Regulation: 20-25 mV
- Load Regulation: 100-150 mV
- Ripple & Noise: 50-60 mV pk-pk per output
- Remote On/Off: Yes, enabled by GND connection
- Remote Sense: Yes, compensates up to 5%
- Power Good Signal: Open collector, can indicate output status
- Operating Temperature: -40°C to 100°C
- Storage Temperature: -55°C to 125°C
- Cooling: Convection or forced air
- Dimensions: 36.5 mm x 123.4 mm x 115 mm
- Weight: 450 g
- Safety Certifications: IEC/UL/C-UL, EN 62368-1, CE, RoHS
- MTBF: Over 5 million hours at 40°C (Telcordia SR-332)
- Construction: Metal case for durability
- DIN Rail Compatibility: TS-35/7.5 or TS-35/15
- Environmental: Suitable for industrial environments
Buy the Lambda Series DDA DC-DC Converter: DDA325ND2PN1212001
Order the Lambda DDA325ND2PN1212001 online today to enjoy efficient, reliable power conversion for industrial automation and OEM systems. This high-performance DIN rail mount converter features a wide input range of 9 to 53V, adjustable output voltage from 3.3V to 24V, and power levels of 250W, 325W, or 500W. Designed for durability with a metal case, it offers high efficiency up to 95%, low ripple, remote sensing, and Power Good indication, making it ideal for demanding industrial environments. Ensure your systems operate smoothly with this trusted power solution.
Buy Lambda DDA325ND2PN1212001 now and experience unmatched reliability and performance in industrial power systems.
Frequently Asked Questions
Where can I buy TDK-LAMBDA DDA325ND2PN1212001?
You can click on the BUY or RFQ button to purchase DDA325ND2PN1212001 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part DDA325ND2PN1212001?
You can download the DDA325ND2PN1212001 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of DDA325ND2PN1212001?
TDK-LAMBDA
