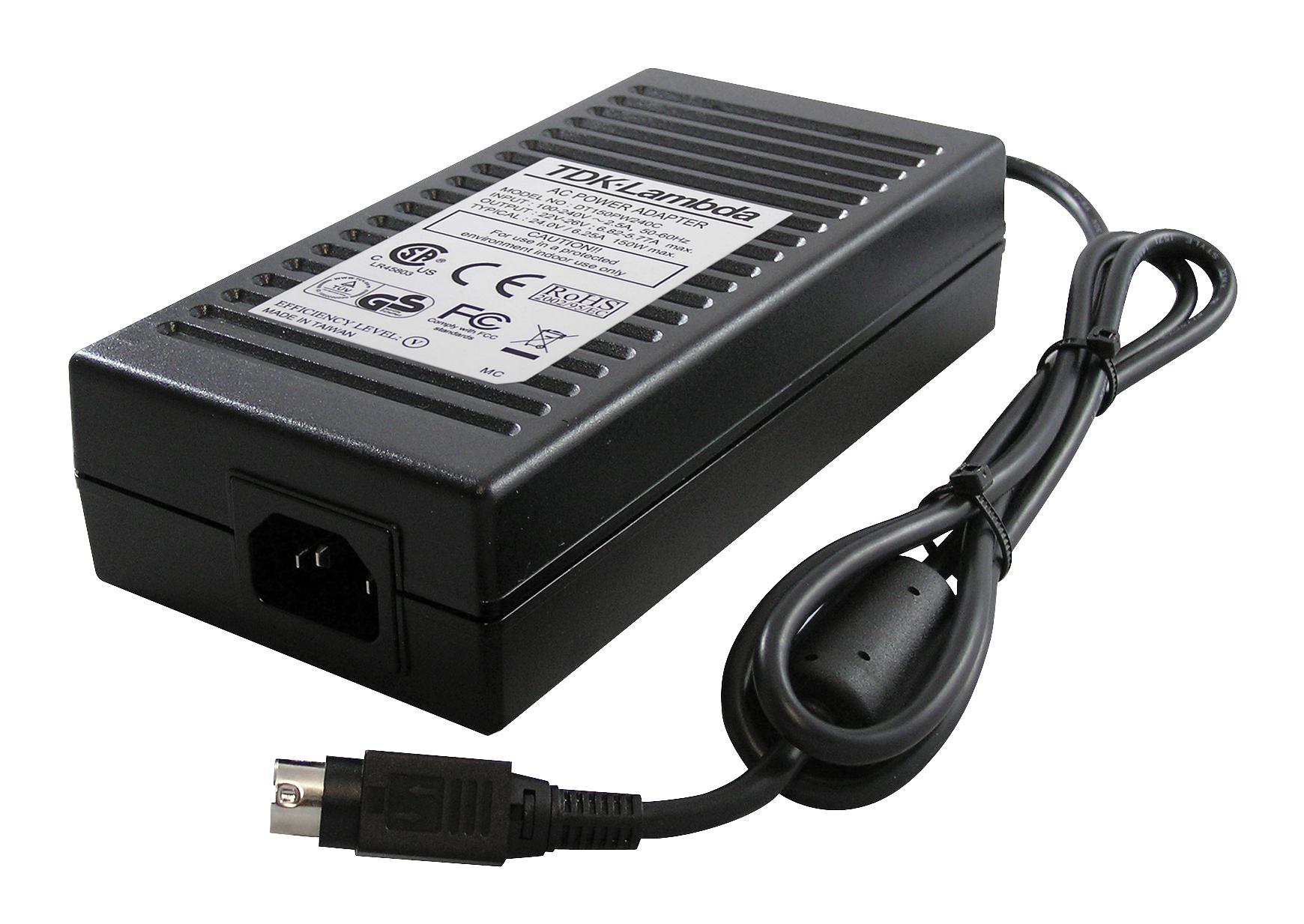

TDK-LAMBDA DTM165PW280C Medical AC-DC Power Supply
The TDK-LAMBDA DTM165PW280C is a robust and reliable 165W AC-DC external power supply designed specifically for medical applications. It offers a wide input voltage range (90-264VAC) and boasts high efficiency (>87%) to minimize energy consumption and heat generation. The unit is compliant with key energy efficiency standards like CEC, ErP, and EISA level V, making it suitable for environmentally conscious designs. Its compact size (170 x 85 x 44mm) and lightweight design (790g) facilitate easy integration into medical devices and equipment. Safety certifications include UL60601-1, EN60601-1, and IEC60601-1, ensuring patient safety and regulatory compliance.
TDK-LAMBDA DTM165PW280C Medical AC-DC Power Supply Specifications:
- Input Voltage Range: 90 - 264VAC (47 - 63Hz)
- Inrush Current: <130A at 230VAC input, 25°C ambient cold start
- Input Current: 2.5A at 90VAC, Full Load
- Power Factor: >0.9 PF
- Leakage Current: <300uA
- Hold Up Time: >10ms
- Temperature Coefficient: ±0.05%/°C
- Voltage Accuracy: ±1%
- Adjustment Range: None
- Minimum Load: None
- Total Regulation: ±5% (12V to 19V Models), ±3% (>19V models)
- Ripple & Noise: 1%
- Short Circuit Protection: <160% - hiccup mode
- Overvoltage Protection: 120 - 150% of nominal
- Efficiency: >87% average efficiency
- Operating Temperature: 0 to +60°C, derate linearly 50% load from 40 to 60°C
- Storage Temperature: -10 to +80°C
- Humidity: 0 - 90%RH
- Cooling: Convection
- Withstand Voltage: 1.5kVAC (Input to Ground), 4kVAC (Input to Output)
- Vibration: 23.52m/s (10 - 55Hz)
- Shock: < 196.1 m/s (20G)
- Safety Agency Certifications: UL60601-1, EN60601-1, IEC60601-1, CE Mark
- Efficiency Level: CEC, ErP, EISA level V
- Offload Power Consumption: < 0.5W
- Conducted & Radiated EMI: EN55011, FCC Part 18 Class B
- Immunity: EN55011:2007+A2:2007
- Weight: 790g
- Size: 170 x 85 x 44mm
- Cable Length: 1050mm
- AC Input Connector: IEC 320-C14 (Accepts IEC 320-C13)
- Output Connector: Kycon KPPx-4P or equivalent
- Warranty: Three Years
