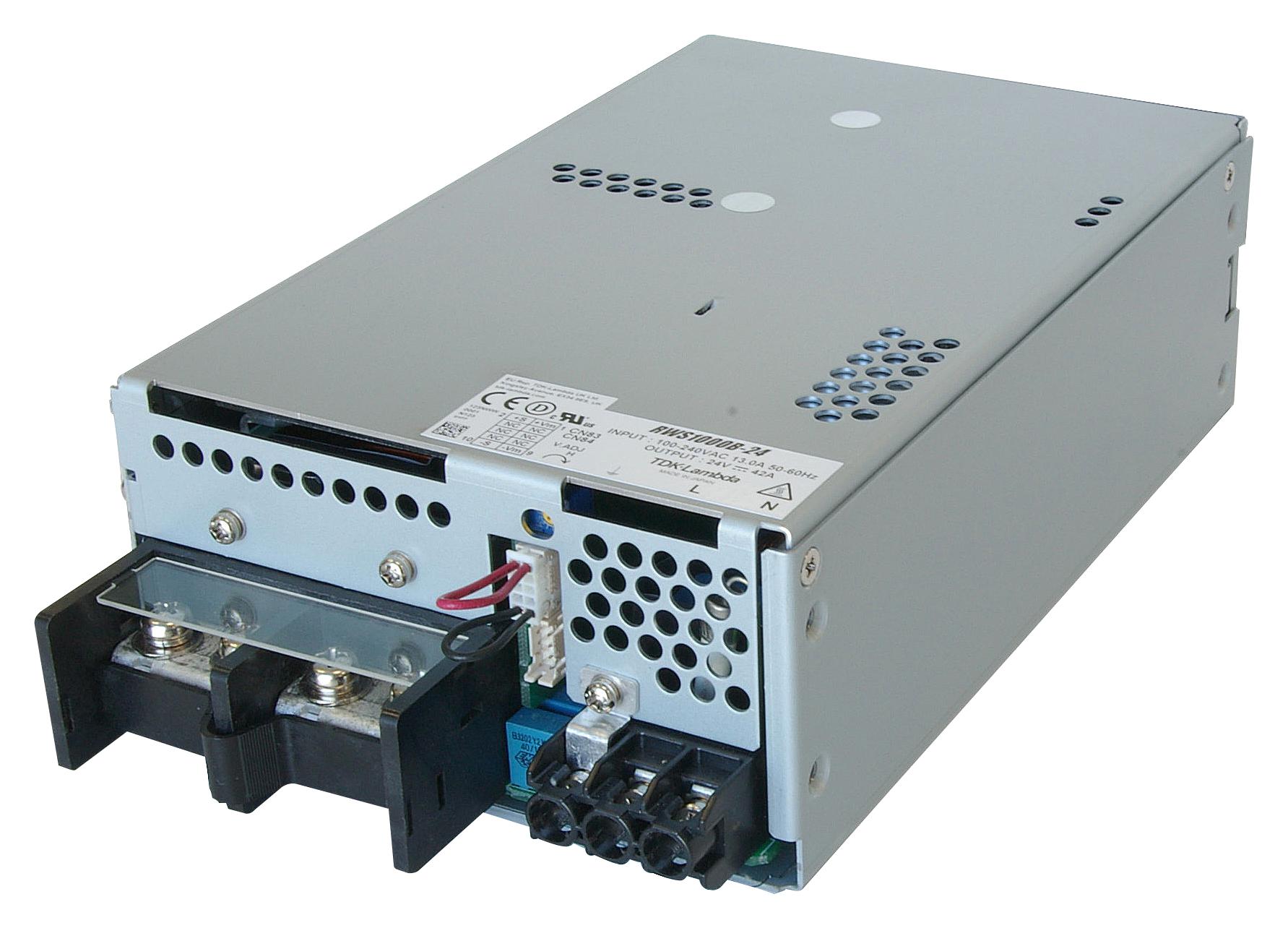

TDK-LAMBDA RWS1000B15FO Industrial Power Supply
The TDK-Lambda RWS1000B15/FO is a high-performance, enclosed, general-purpose power supply with a single 15V output providing up to 67A and 1005W. It is compliant with safety standards including UL60950-1, CSA60950, and EN60950-1. Designed for industrial applications, it features an input voltage range of 85 to 265VAC or 120 to 340VDC, with an internal fan for cooling through input/output terminals. It offers low ripple of 150mV, line regulation of 60mV, load regulation of 120mV, and efficiency around 82-85%. Supports parallel operation, DC good, fan alarm signals, and maintains excellent EMI standards. The unit withstands voltages of 2kVAC input to ground, 4kVAC input to output, and 1.5kVAC output to ground for one minute. Its compact size of 127 x 63 x 198mm and weight of approximately 2kg make it suitable for reliable industrial power applications.
TDK-LAMBDA RWS1000B15FO Industrial Power Supply Specifications:
- Input Voltage Range: 85-265VAC or 120-340VDC
- Input Frequency: 47-63Hz
- Output Voltage: 15V
- Output Current: 67A
- Power Output: 1005W
- Ripple & Noise: 150mV
- Line Regulation: 60mV
- Load Regulation: 120mV
- Efficiency: 82-85%
- Housing Dimensions: 127mm x 63mm x 198mm
- Weight: Approximately 2kg
- Cooling: Internal fan
- Isolation Resistance: >100MΩ
- Safety Certifications: UL60950-1, CSA60950, EN60950-1
- EMC Standards: EN55011/EN55032-B, FCC Class B, VCCI-B
- Voltage withstand: 2kVAC (input to ground), 4kVAC (input to output), 1.5kVAC (output to ground) for 1 min
Buy the Buy TDK-Lambda RWS1000B15/FO Power Supply Online
Purchase the TDK-Lambda RWS1000B15/FO power supply online today and benefit from robust safety, high efficiency, low ripple, and EMI compliance. Designed for industrial applications, it provides a reliable 15V output at 67A, delivering 1005W of power with excellent thermal management via internal cooling fan. With a compact size of 127mm x 63mm x 198mm and a weight of approximately 2kg, this unit supports parallel operation, remote signals, and complies with key safety and EMI standards for demanding industrial environments. Ideal for engineers seeking durable, high-performance power solutions.
Get TDK-Lambda RWS1000B15/FO today—built for industrial reliability, high efficiency, and safety standards with robust EMI compliance.
Frequently Asked Questions
Where can I buy TDK-LAMBDA RWS1000B15FO?
You can click on the BUY or RFQ button to purchase RWS1000B15FO from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part RWS1000B15FO?
You can download the RWS1000B15FO datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of RWS1000B15FO?
TDK-LAMBDA
