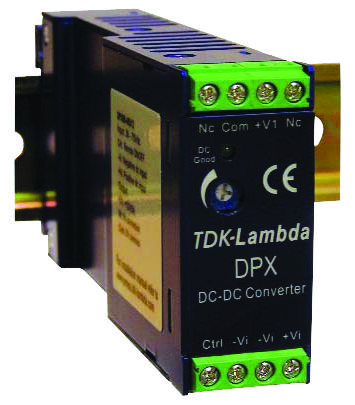

TDK-LAMBDA DPX4024WS05 Industrial DIN Rail Power Converter
The DPX4024WS05 is a robust DIN rail-mount DC/DC converter ideal for industrial power management. It offers 1600VDC input/output isolation, a maximum load capacitance of 13,600 microfarads, and features a typical switching frequency of 300 kHz. The device ensures high efficiency at 85%, with excellent protection against short circuits and overloads. Operating reliably from -40°C to +85°C, it produces low ripple and noise at 50mV. Internally protected, it’s suitable for demanding industrial environments requiring stable, high-quality power conversion.
TDK-LAMBDA DPX4024WS05 Industrial DIN Rail Power Converter Specifications:
- Input Voltage Range: 9.5 - 36VDC
- Output Voltage: 5V
- Output Current: 8A
- Max Load Capacitance: 13,600µF
- Ripple & Noise: 50mV
- Efficiency: 85% typical
- Operating Temperature: -40°C to +85°C
- Isolation Voltage: 1600VDC min
- Switching Frequency: 300kHz (typical)
- Protection: Short-circuit and overload protected
- Size (WxHxL): 24.5 x 57.6 x 125mm
- Weight: 182g
- Certifications: CE Mark
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5 to 95% RH (non-condensing)
Buy the TDK-Lambda Series DPX Power Modules: DPX4024WS05
Secure your industrial power management with the TDK-Lambda DPX4024WS05, a durable DIN rail mount DC/DC converter. This module features 1600VDC isolation, delivers 5V at 8A, and boasts 85% efficiency. Designed for demanding environments, it reliably operates from -40°C to +85°C, with low ripple and noise for stable performance. Internally protected against shorts and overloads, it’s suitable for automation, control systems, and power supply applications, ensuring high stability and safety for sensitive electronic equipment.
Buy TDK-Lambda DPX4024WS05 now and experience unmatched reliability and performance for industrial power management solutions.
Frequently Asked Questions
Where can I buy TDK-LAMBDA DPX4024WS05?
You can click on the BUY or RFQ button to purchase DPX4024WS05 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part DPX4024WS05?
You can download the DPX4024WS05 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of DPX4024WS05?
TDK-LAMBDA
