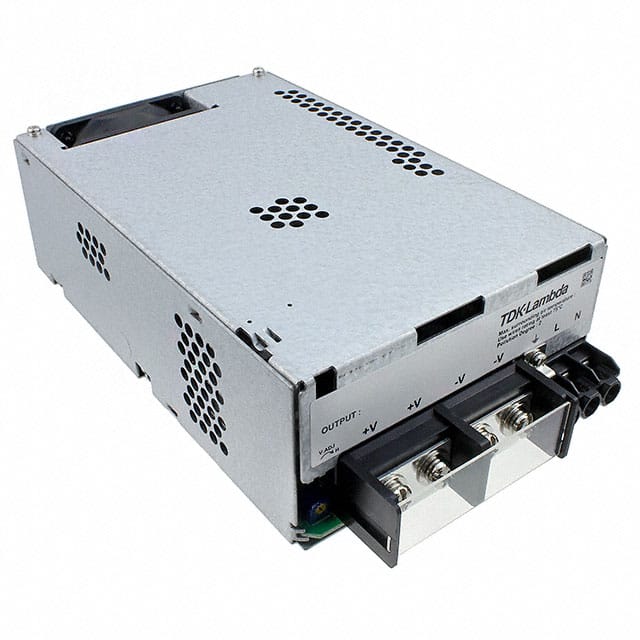

TDK-LAMBDA RWS600B12 Power Supply
The RWS-600B-12 is a versatile power supply designed for general-purpose applications such as power management. It features an enclosed construction, compact size, internal fan cooling, overcurrent and overvoltage protection, and a typical hold-up time of 20ms at full load. The power supply offers high isolation resistance greater than 100MΩ at 25°C/70% RH with 500VDC, and adjustable output voltage from 10.8V to 13.8V. Suitable for industrial, automation, and control systems requiring reliable, stable power with low ripple noise of approximately 150mV.
TDK-LAMBDA RWS600B12 Power Supply Specifications:
- Input Voltage Range: 85 - 265VAC (47 - 63Hz), 300VAC for 5 seconds
- Output Voltage Range: 10.8V to 13.8V, adjustable
- Output Current: 50A
- Ripple Noise: approximately 150mV
- Hold-Up Time: 20ms
- Isolation Resistance: >100MΩ at 25°C/70%RH with 500VDC
- Overcurrent Protection: Yes, constant current style over 105%
- Overvoltage Protection: Vv 115-140%, cycle AC line to reset
- Operating Temperature: -10°C to +70°C, derates linearly above 40°C
- Cooling: Internal Fan
- Dimensions: 102 x 41 x 170 mm
- Weight: 900 g
- Safety Certifications: UL, CSA, IEC 60950-1, CE Mark
- Vibration & Shock Resistance: Meets industrial standards
Buy the TDK-Lambda RWS600B-12 – Reliable Power Supply for Industrial Applications
Purchase the TDK-Lambda RWS600B-12 power supply online today for dependable power delivery in industrial, automation, and control applications. This high-quality, enclosed power supply features an adjustable output voltage from 10.8V to 13.8V, a 50A maximum current capability, and high isolation resistance exceeding 100MΩ at 25°C/70% RH with 500VDC. It includes overcurrent and overvoltage protections, a typical 20ms hold-up time, internal fan cooling, and robust safety certifications such as UL, CSA, and CE. Its compact design and reliable performance make it ideal for diverse industrial environments requiring stable power sources.
Get TDK-Lambda RWS600B-12 today—built for precision, reliability, and long-lasting durability in power management and automation systems.
Frequently Asked Questions
Where can I buy TDK-LAMBDA RWS600B12?
You can click on the BUY or RFQ button to purchase RWS600B12 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part RWS600B12?
You can download the RWS600B12 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of RWS600B12?
TDK-LAMBDA
