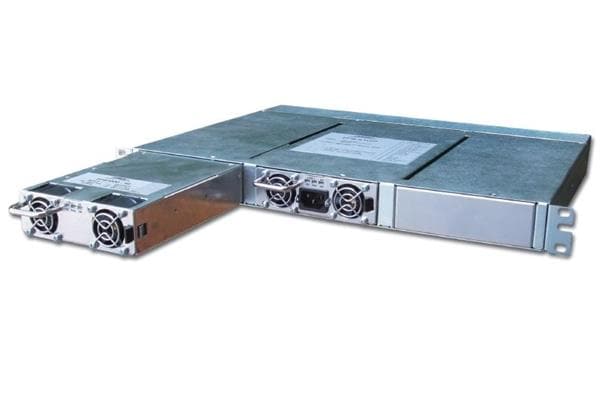

TDK-LAMBDA FPST1U 1000W Front End Power Supply
The TDK-LAMBDA FPS-T1U AC-DC industrial power supply is a versatile solution for a range of applications. It can be operated in a hot-swap redundant configuration or used to provide up to 3,000W of bulk power. The FPS supplies have internal ORing diodes and current share for automatic parallel operation. Communication is possible using an optional isolated I2C interface, and it includes standard features like AC fail, DC good, remote on/off, and a 12V auxiliary output. Its compact 1U height design utilizes less rack space and simplifies system integration.
TDK-LAMBDA FPST1U 1000W Front End Power Supply Specifications:
- Input Voltage Range (2): 85 - 265 / 120 - 360 Vac / Vdc
- Input Frequency (2): 47 - 63 Hz
- Input Current (100/200Vac): 12 / 6 A
- Inrush Current: <40 A
- Leakage Current: <1.1 mA at 230Vac input
- Power Factor Correction: >0.98 at full load
- Harmonic Compliance: Meets EN61000-3-2 class A (20 - 100% load)
- Hold Up Time (100 Vac input): 20 ms typical (800W loading)
- Efficiency (typ) 100 / 200Vac: See model selector
- Conducted & Radiated EMI: Built to meet EN55032B, FCC part 15J-B, VCCI-B
- Immunity: See immunity section
- Insulation Class: Class I
- Safety Certifications and Markings: IEC/UL/CSA/EN62368-1, 60950-1, CE Mark and UKCA Mark
- Line Regulation: <0.4%
- Load Regulation: <0.8%
- Ripple & Noise: See model selector
- Temperature Coefficient: <0.02 %/°C
- Minimum Load: No minimum load required
- Overcurrent Protection: 104 - 125% of maximum output current
- Overvoltage Protection: See model selector
- Overtemperature Protection: Yes, automatic reset
- Remote Sense: Yes (must be connected for proper operation)
- Remote On/Off: ON = 0 - 0.6V or Short; OFF = 2 - 15 V or Open. Maximum sink current 2.6mA.
- DC OK: Open collector signal. On when Vout > 80 ±5% rated output. Max. sink current 10mA.
- AC Fail and Overtemperature warning: Open collector signal. Refer to Instruction Manual
- Standby Voltage: 12V (11.2 - 12.5V) @ 0.25A isolated (always on)
- Indicators: AC OK, DC OK, DC Fail
- Parallel Operation: Up to eight FPS1000 units. Refer to Instruction Manual.
- Operating Temperature (non /P models): 0 to +50 °C 100% load, derate 2%/°C, 50 to 60, derate 2.5% /°C , 60 to 70
- Operating Temperature ( /P models): 0 to +50 °C 100% load, derate 2%/°C, 50 to 60
- Storage Temperature: -30 to +85 °C
- Humidity (non condensing): Operating: 10 - 90, Storage: 10 - 95 %RH
- Cooling: Internal variable speed fans. Airfow enters from the front.
- Altitude: 3,000 m
- Withstand Voltage (For 1 minute): Input to Ground 2kVac, Input to Output 3kVac, Output to Ground 500Vac
- Isolation Resistance: >100 MΩ at 25°C, 70%RH. Output to Ground 500Vdc
- Weight (Typ): 2000 g
- Size (LxWxH): 290 x 127 x 41 mm
- Size (LxWxH) (in): 11.4 x 5 x 1.61 in
- MTBF - JEITA: 79,395 Hours
- Warranty: 2 Years
