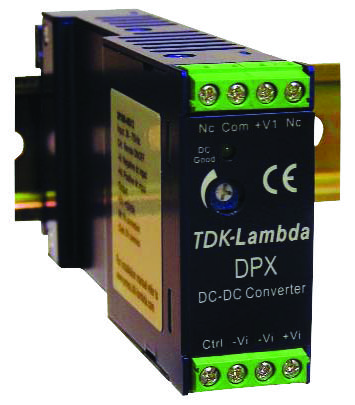

TDK-LAMBDA DPX6024S12 DIN mount DC-DC converter
The DPX6024S12 is a 40W DIN mount DC-to-DC converter with a single output, featuring internal protection and isolated input and output voltages. It provides an input-to-output isolation of 1600V DC, with efficiency up to 85% and an isolation resistance of 10 megaohms. The converter operates reliably across a temperature range from -40°C to +85°C. Suitable for power management applications. Note that market demand has extended lead times, and delivery dates may vary. This product is not eligible for discounts.
TDK-LAMBDA DPX6024S12 DIN mount DC-DC converter Specifications:
- Input Voltage: 9.5 - 36VDC or 18 - 75VDC depending on model
- Output Power: 40W
- Efficiency: Up to 85%
- Isolation Voltage: 1600VDC minimum
- Isolation Resistance: 10 megaohms
- Operating Temperature: -40°C to +85°C, linearly derates above 60°C
- Storage Temperature: -40°C to +85°C
- Input Surge Voltage: 36V for 12V input, 100V for 48V input
- Remote On/Off: Open or 3.5-12V for ON, short or <1.2V for OFF
- Size (WxHxL): 0.96 x 2.27 x 4.92 inches (24.5 x 57.6 x 125mm)
- Weight: 182g
- Protection: Overcurrent, Short Circuit, Overvoltage
- Compliance: CE Mark, EN55022 Level B emissions and immunity standards
- Switching Frequency: 300kHz
- Thermal Shock: MIL-STD-810D
- Vibration & Shock: MIL-STD-810F
- Humidity Range: 5% to 95% RHnon-condensing
Buy the TDK Lambda DPX6024S12 – Reliable Industrial Power Converter for Power Management
Enhance your industrial power systems with the TDK Lambda DPX6024S12 DIN mount DC-DC converter. Designed for reliability, it offers 40W power with high efficiency of up to 85%, and input-to-output isolation of 1600V DC. Its broad operating temperature range of -40°C to +85°C ensures stability in demanding environments. Built with safety features like overcurrent, overvoltage, and short circuit protections, it's ideal for power management applications across various industries. Purchase online today to benefit from quick delivery and trusted performance.
Order your TDK Lambda SeriesDPX6024S12 today and ensure robust, efficient power supply for your industrial projects.
Frequently Asked Questions
Where can I buy TDK-LAMBDA DPX6024S12?
You can click on the BUY or RFQ button to purchase DPX6024S12 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part DPX6024S12?
You can download the DPX6024S12 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of DPX6024S12?
TDK-LAMBDA
