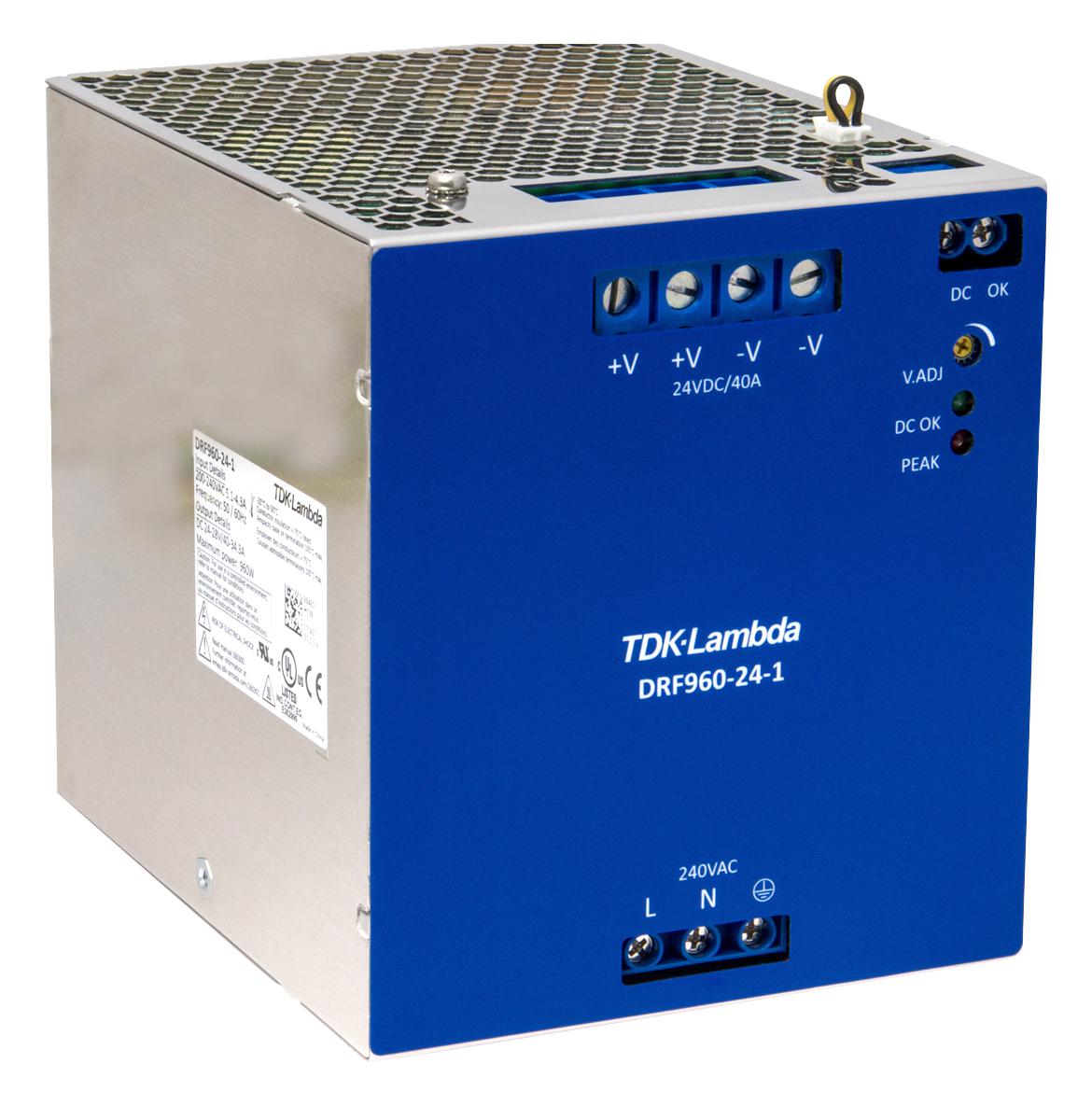

TDK-LAMBDA DRF960241 Industrial Power Supply
The DRF120-960 series from TDK-Lambda offers compact, high-efficiency DIN rail mount power supplies with output power ranging from 120W to 960W. They feature a 24V output with a peak power capability of up to 150%, remote on/off, voltage adjustment, and operate efficiently up to 95%. Designed for industrial applications, these power supplies support operation from -25°C to +70°C, with low standby power draw, electrical isolation, and overcurrent protection. Certifications include UL508, IEC, and CE, making them suitable for hazardous locations and demanding environments.
TDK-LAMBDA DRF960241 Industrial Power Supply Specifications:
- Input Voltage Range: 85 - 264VAC, 125 - 370VDC
- Input Frequency: 47 - 63Hz
- Inrush Current (cold start): 20A
- Power Factor: 0.98 / 0.95 (115VAC / 230VAC)
- Efficiency: Up to 95%
- Output Voltage: 24V, adjustable from 24 - 28V via remote voltage adjustment
- Output Power: 120W to 960W, peak power up to 150%
- Overcurrent Protection: >101% of peak current rating, shutdown after 4s
- Overvoltage Protection: 30 - 35.5V, cycle input or remote on/off to reset
- Operating Temperature: -25°C to +70°C, derates above 60°C
- Protection: Short circuit, overload, and ground fault protection
- Isolation: >100 MΩ at 25°C, 70%RH with 500VDC withstand voltage
- Certifications: UL508, IEC/UL/EN60950-1, CE, ATEX, IEC Ex, GL
- Mechanical: Metal case, size varies from 1.44 x 4.86 x 4.53 inches to 4.33 x 4.86 x 5.47 inches
- Mounts on TS-35/7.5 or -15 rails, dimensions specified per model
- Warranty: Five years
Buy the Buy TDK-Lambda DRF120-960 Series Power Supplies Part Number DRF960-24-1 Online
Purchase the TDK-Lambda DRF120-960 series power supplies online today and experience dependable, high-efficiency power solutions for demanding industrial applications. With outputs from 120W to 960W and features like remote on/off, voltage adjustment, and comprehensive safety certifications, these DIN rail mount units ensure reliable performance in industrial environments. Their compact design, operating temperature range from -25°C to +70°C, and up to 95% efficiency make them ideal for any demanding project requiring consistent power, durability, and safety compliance. Order now to upgrade your power system effortlessly.
Order your TDK-Lambda DRF120-960 Series power supply today and ensure reliable, high-efficiency power for your industrial projects.
