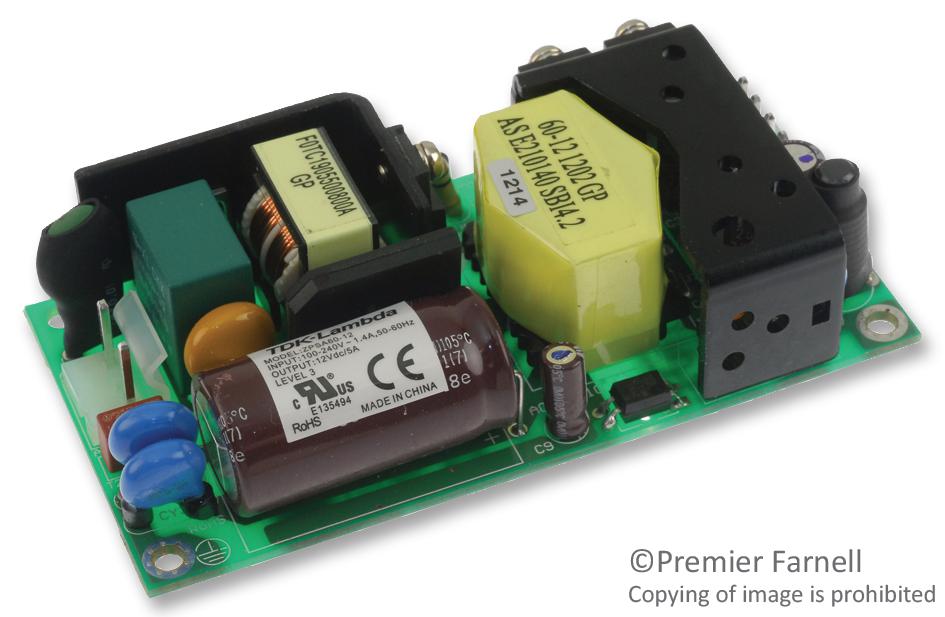

TDK-LAMBDA ZPSA6012 Industrial Power Supply Module
The ZPSA60-12 series is a high-efficiency, 60W AC-DC power supply designed for industrial applications. It features a wide input voltage range of 90-264VAC and 120-370VDC, with short circuit protection, overvoltage protection, and a low profile of just 1.07 inches. Suitable for various industrial and communication environments, it offers a typical efficiency of up to 88%, a start-up time of 8ms, and full safety certification including UL, CSA, and CE standards. Its robust design ensures reliable operation in temperatures from 0°C to +70°C, with convection cooling and excellent electromagnetic compatibility.
TDK-LAMBDA ZPSA6012 Industrial Power Supply Module Specifications:
- Input Voltage range: 90 - 264VAC (47 - 440Hz) or 120 - 370VDC
- Output Power: 60W
- Output Voltages: 12V at 5A
- Efficiency: Up to 88%
- Dimensions: 2 x 4 x 1.07 inches
- Operating Temperature: 0 to +70°C
- Storage Temperature: -20 to +85°C
- Leakage Current: 0.8mA maximum at 264VAC, 60Hz
- Inrush Current: 25A/50A (115/230VAC)
- Ripple & Noise: 50mV or 1% of output voltage
- Protection: Short circuit, overvoltage, and overcurrent protections
- Isolation Voltage: Input to Ground 1.5kVAC, Output to Ground 500VAC for 1 min
- Safety Certifications: UL60950-1, CSA60950-1, EN60950-1, CE Mark
- EMC Compliance: EN55022-B, FCC Class B
- Humidity Range: 10-95% RH (non-condensing)
Buy the TDK-Lambda ZPSA60-12 – Reliable Power Supply for Industrial Applications
Enhance your industrial or communication setups with the TDK-Lambda ZPSA60-12 power supply. Featuring a compact design, wide input voltage range, high efficiency, and industry-standard safety certifications, this 60W module guarantees stable and reliable power delivery. Its robust protection features include short circuit, overvoltage, and overcurrent protection, making it suitable for critical applications. Easy to install and operate within temperatures from 0°C to +70°C, it’s an ideal choice for engineers seeking durability and performance in demanding environments. Purchase online today for fast, secure delivery.
Order your TDK-Lambda SeriesZPSA60-12 reliable power supply today and ensure your industrial projects operate with dependable, high-quality power.
Frequently Asked Questions
Where can I buy TDK-LAMBDA ZPSA6012?
You can click on the BUY or RFQ button to purchase ZPSA6012 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part ZPSA6012?
You can download the ZPSA6012 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of ZPSA6012?
TDK-LAMBDA
